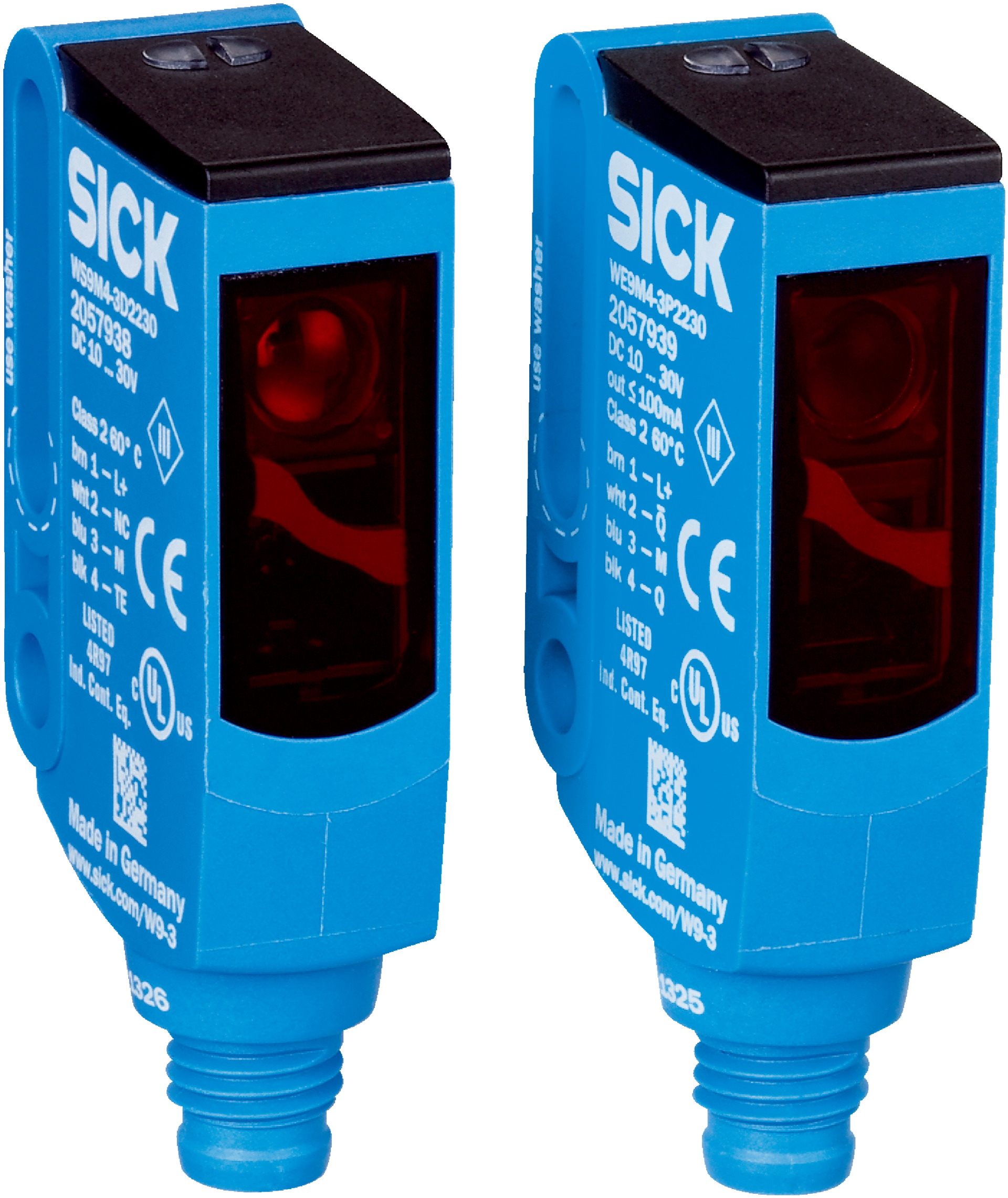

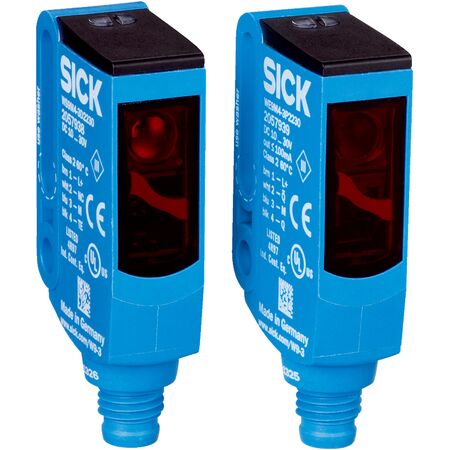

Through-Beam Photoelectric Sensor WSE9M4-3N2230 | IP66/IP67/IP69K Rated | 7m Sensing Range | Fast Response Time | by SICK
The WSE9M4-3N2230 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 7 meters and a fast response time of under 0.5 ms. With a robust IP66/IP67/IP69K protection rating, it's perfect for harsh environments, ensuring reliable object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WSE9M4-3N2230 | IP66/IP67/IP69K Rated | 7m Sensing Range | Fast Response Time | by SICK
Brand: SICK
SKU: 1052938
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Industrial sensor, Optical sensor, SICK sensor WSE9M4
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male connector M8, 4-pin
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Ambient operating temperature: -40°C to +60°C
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Wave length: 650 nm
- Light spot size at 1 m: Ø 25 mm
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 7 meters, max 10 meters
- Rectangular housing design with M4 mounting hole
- PinPoint LED light source with 650 nm wavelength
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
- NPN switching output with light/dark switching mode
- High protection rating IP66, IP67, IP69K for harsh environments
- Wide ambient operating temperature range from -40°C to +60°C
- Plastic housing made of VISTAL® and optics made of PMMA
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable materials and high protection rating reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE9M4-3N2230 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
