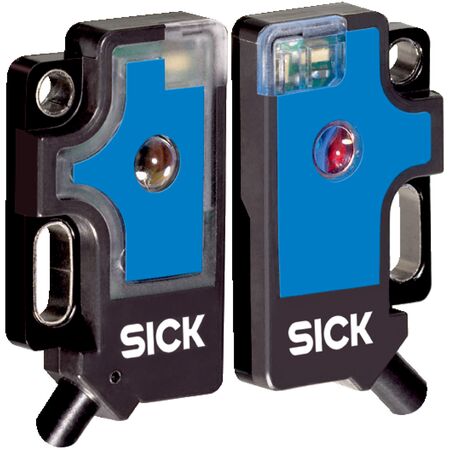

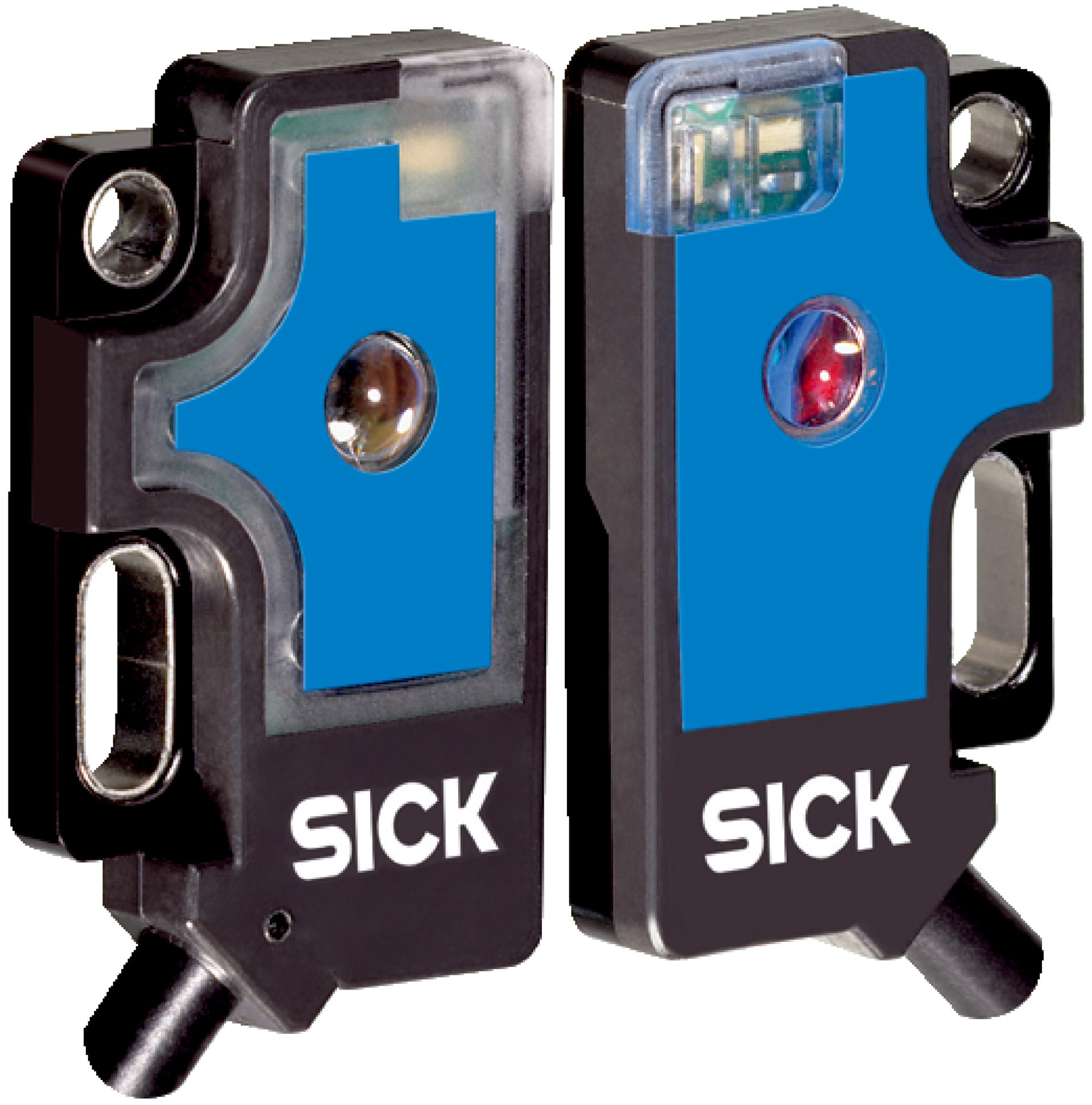

Through-Beam Photoelectric Sensor WS/WE2F-N110 | IP67 Rated | 0.4m Sensing Range | 1000 Hz Switching Frequency | by SICK
The WS/WE2F-N110 Through-Beam Photoelectric Sensor is designed for precise object detection in industrial automation. With a sensing range of up to 0.4 meters and a high switching frequency of 1,000 Hz, it ensures reliable performance in manufacturing and safety monitoring applications. Its IP67 rated enclosure provides excellent dust and water protection, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 0.4 m
- Type of light: Visible red light (660 nm wavelength)
- Light source: LED
- Light spot size: Ø 10 mm at 100 mm distance
- Supply voltage: 12 V DC to 24 V DC
- Ripple: < 5 V pp
- Switching output: NPN
- Switching mode: Light switching
- Output current max: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 3-wire cable, 2 m length
- Cable material: Plastic, PVC
- Cable diameter: Ø 2.4 mm
- Circuit protection: Reverse polarity and short-circuit protection
- Housing material: Plastic, PC
- Optics material: Plastic, PC
- Enclosure rating: IP67
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 20mm x 3.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Rectangular housing design with visible red LED light source
- Sensing range up to 0.4 meters
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Compact size with dimensions 12 mm x 20 mm x 3.5 mm
- Operating temperature range from -20°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WS/WE2F-N110 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
