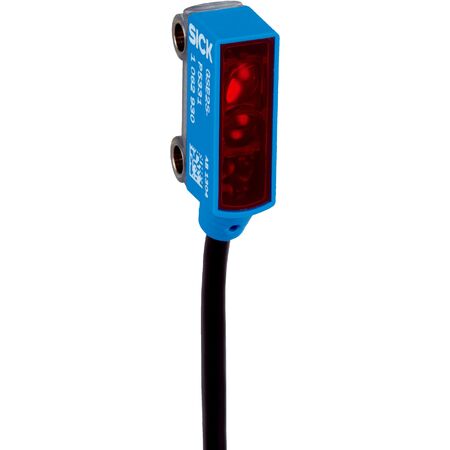

Through-Beam Photoelectric Sensor GS2S-D1311 | IP67 Rated | 1.5m Sensing Range | PinPoint LED Light | by SICK
The GS2S-D1311 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 1.5 meters and a visible red light source. With an IP67 enclosure rating, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 1.5 m
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size at 500 mm: Ø 23 mm
- Wavelength: 640 nm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Connection type: Cable, 3-wire, 2 m length
- Cable material: Plastic, PVC
- Cable diameter: Ø 3 mm
- Circuit protection: A and C
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- MTTFD: 2,595 years
- DCavg: 0%
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 1.5 meters
- Rectangular housing design with PinPoint LED light source
- High enclosure rating of IP67 for dust and water protection
- Operating temperature range from -25°C to +50°C
- Cable connection with 3-wire, 2 meter length
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste from replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GS2S-D1311 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
