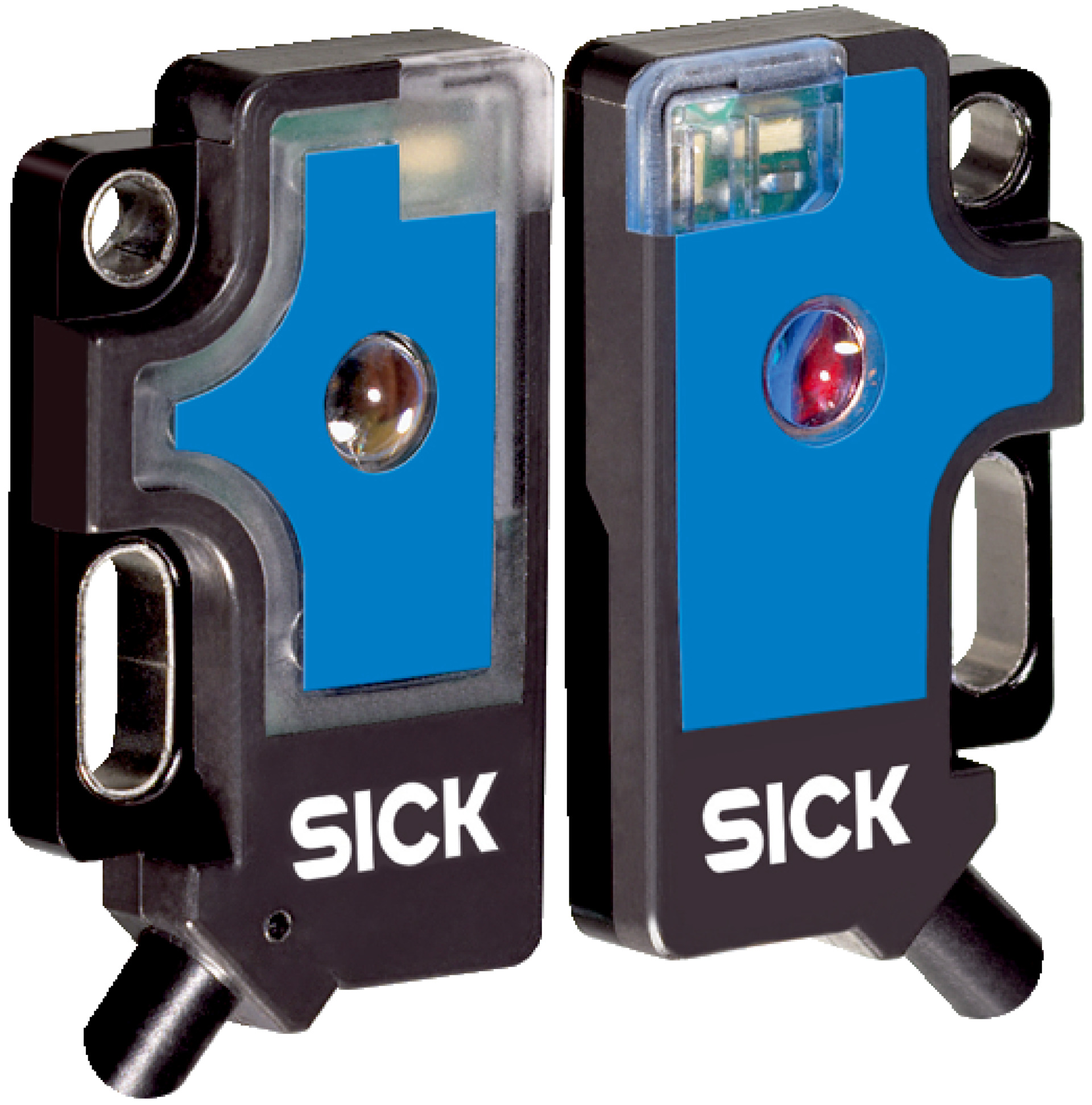

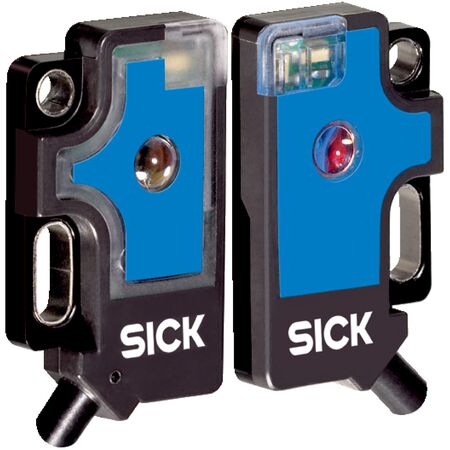

Through-Beam Photoelectric Sensor WS/WE2F-F410 | IP67 Rated | 1000 Hz Switching Frequency | LED Light Source | by SICK
The WS/WE2F-F410 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a high switching frequency of 1000 Hz and an IP67 rated enclosure for dust and water protection. With a sensing range of up to 0.4 meters and a visible red LED light source, it's perfect for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Ripple: < 5 V pp
- Switching output: PNP, dark switching mode
- Output current max: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M8 male connector, 4-pin, 200 mm length
- Cable material: Plastic, PVC
- Cable diameter: Ø 2.4 mm
- Housing material: Plastic, PC
- Optics material: Plastic, PC
- Enclosure rating: IP67
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Light source: LED, wavelength 660 nm
- Light spot size: Ø 10 mm at 100 mm distance
- Dimensions (H x L x W): 20mm x 3.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Rectangular plastic housing with visible red LED light source
- Sensing range up to 0.4 meters
- High switching frequency of 1000 Hz
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 12-24 V DC supply voltage
- Durable IP67 rated housing reduces waste from frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WS/WE2F-F410 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
