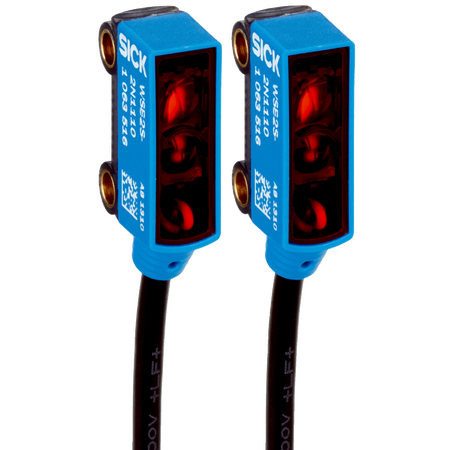

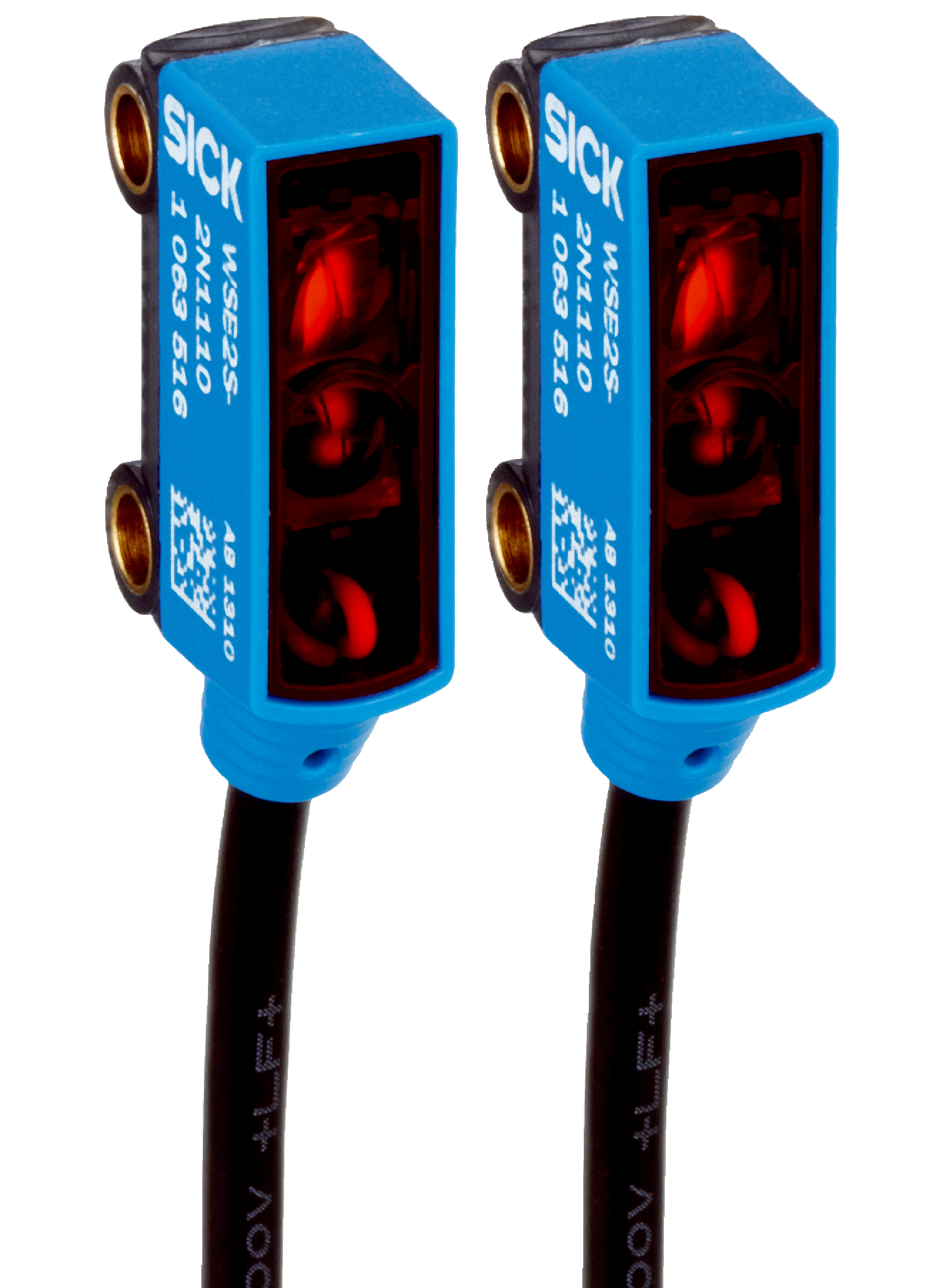

Through-beam Photoelectric Sensor WSE2S-2P3230 | IP67 Rated | 1,200 Hz Switching Frequency | 2.5m Sensing Range | by SICK
The WSE2S-2P3230 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 2.5 meters and a high switching frequency of 1,200 Hz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Optical sensor, Industrial sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 50 mA
- Response time: < 0.4 ms
- Switching frequency: 1,200 Hz
- Connection: Cable with M8 male connector, 4-pin, 200 mm
- Cable material: Plastic, PVC
- Circuit protection: A, B, D
- Housing material: Plastic, ABS/PC
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Light source: PinPoint LED, 640 nm wavelength
- Light spot size: Ø 65 mm at 1,500 mm distance
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Rectangular housing design with visible red light
- Sensing range up to 2.5 meters
- PinPoint LED light source with 640 nm wavelength
- High switching frequency of 1,200 Hz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 20 mA reduces energy usage
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE2S-2P3230 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
