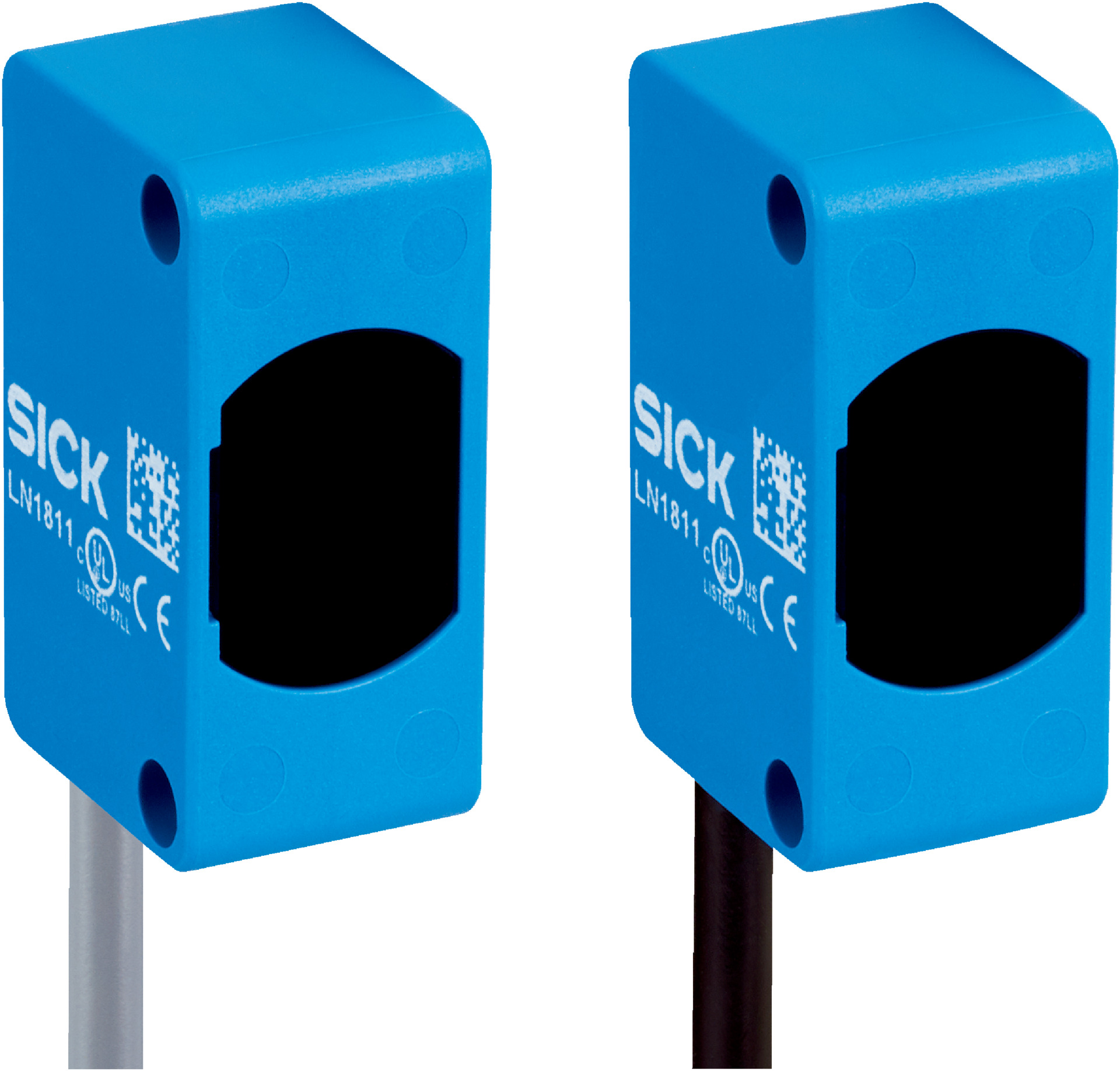

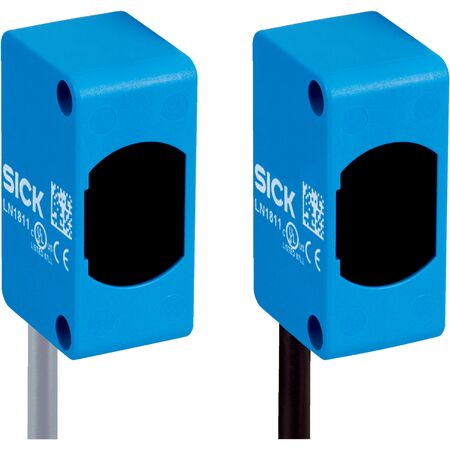

Through-beam Photoelectric Sensor ZSE18-7KZ1G3 | IP67 Rated | 15m Sensing Range | 1000 kHz Switching Frequency | by SICK
The ZSE18-7KZ1G3 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 15 meters and a high switching frequency of 1,000 kHz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Light wavelength: 850 nm infrared
- Light spot size: Ø 20 mm at 500 mm distance
- Cable: 4-wire, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31mm x 22.4mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 15 meters
- Hybrid housing design with blue color
- High switching frequency of 1,000 kHz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +55°C
- PNP dark switching output with max output current of 100 mA
- Cable open end, 4-wire, 2 meter length with PVC insulation
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces waste from replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZSE18-7KZ1G3 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
