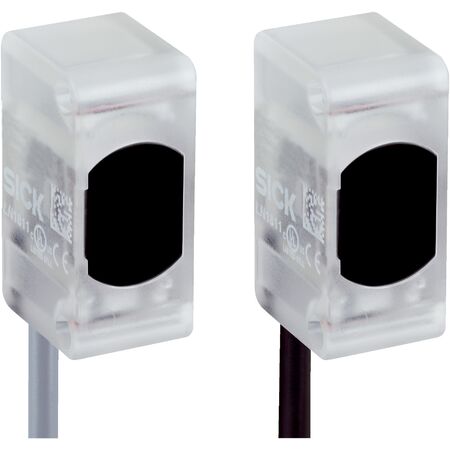

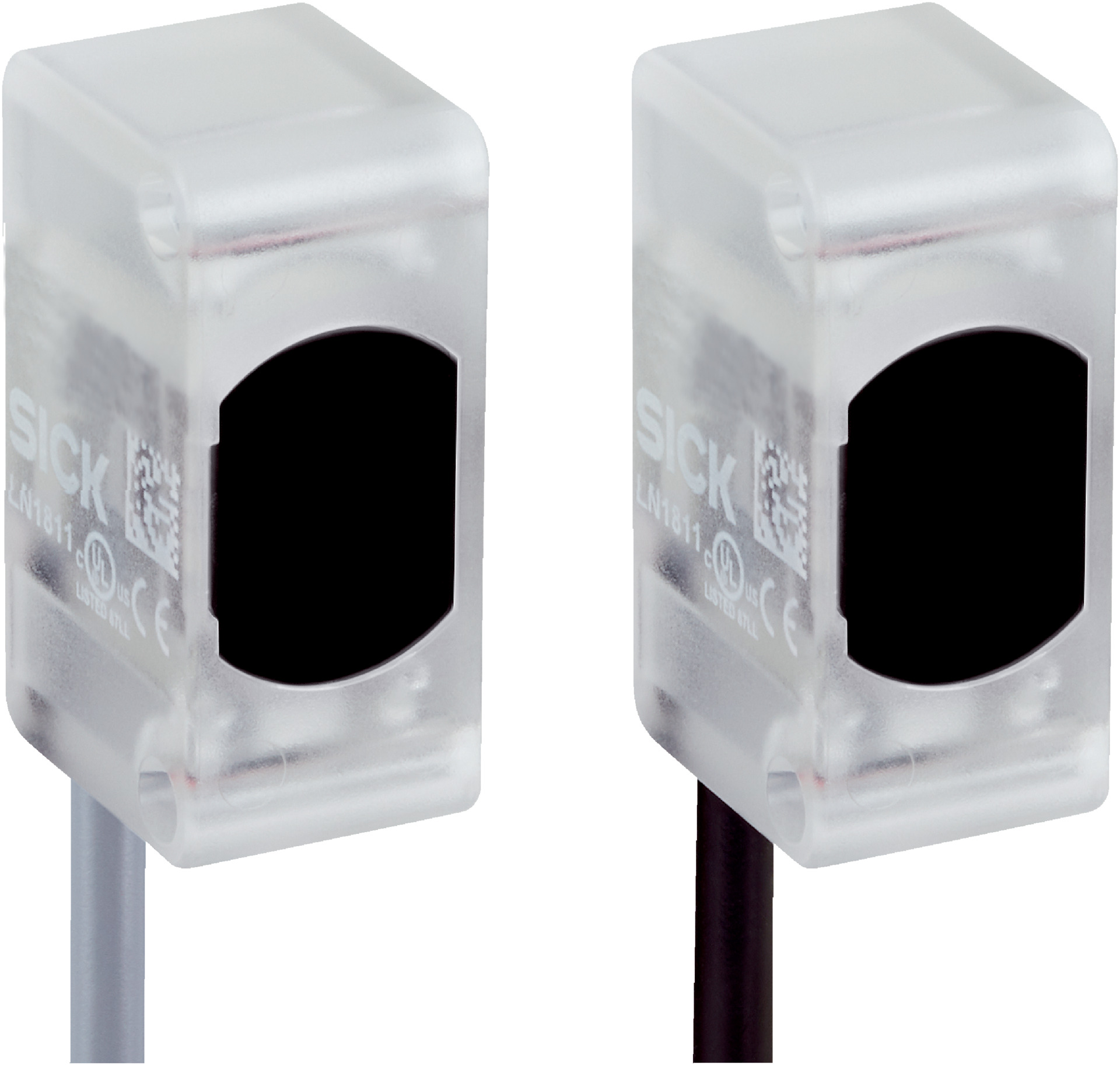

Through-beam Photoelectric Sensor ZSE18-GKZ1G3 | IP67 Rated | 15m Sensing Range | 1000 kHz Switching Frequency | by SICK
The ZSE18-GKZ1G3 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 15 meters and a high switching frequency of 1,000 kHz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and object detection in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: 4-wire cable, 2 m length
- Cable material: Plastic, PVC
- Conductor cross section: 0.13 mm²
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 31mm x 22.4mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Hybrid housing design with transparent color
- Sensing range up to 15 meters
- Infrared LED light source with 850 nm wavelength
- Dark switching PNP output
- High switching frequency of 1,000 kHz
- IP67 rated enclosure for dust and water protection
- Wide operating temperature range from -40°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZSE18-GKZ1G3 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
