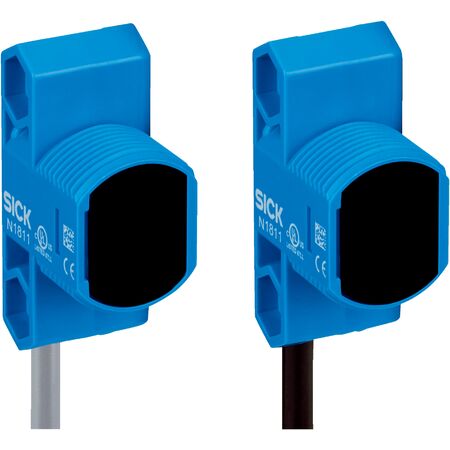

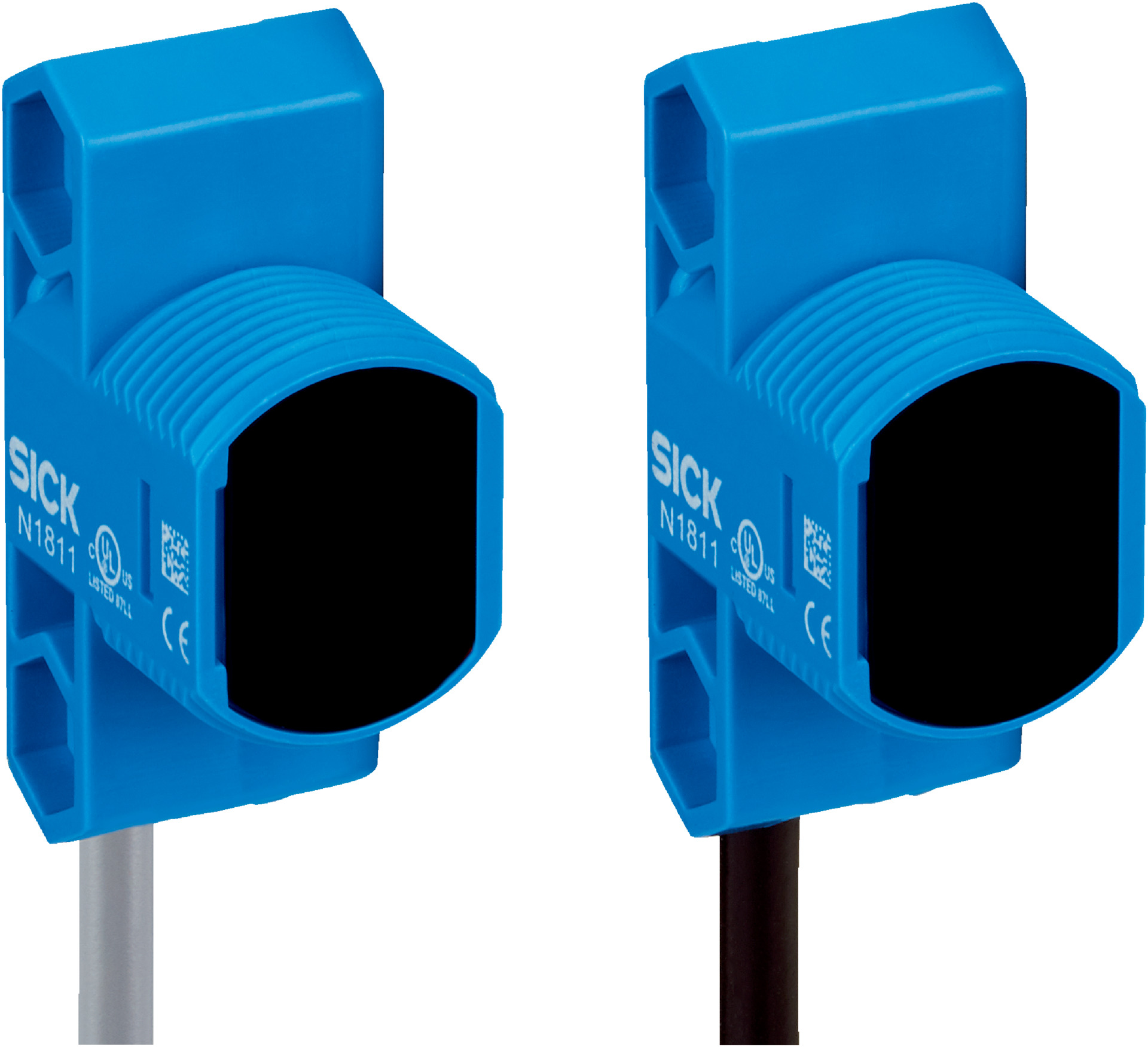

Through-beam Photoelectric Sensor ZSE18-2AB4B3 | IP67 Rated | 15m Sensing Range | 1000 kHz Switching Frequency | by SICK
The ZSE18-2AB4B3 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 15 meters and a high switching frequency of 1,000 kHz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: Cable with M12 male connector, 4-pin, 150 mm
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Wave length: 850 nm
- Light spot size: Ø 20 mm at 500 mm distance
- Dimensions (H x L x W): 34.8mm x 21.9mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 15 meters, maximum 17 meters
- Hybrid housing design with M18 thread diameter
- Push-pull PNP/NPN switching outputs with light and dark switching modes
- High switching frequency of 1,000 kHz and response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZSE18-2AB4B3 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
