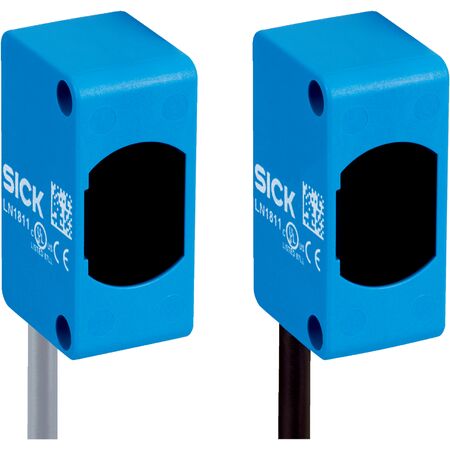

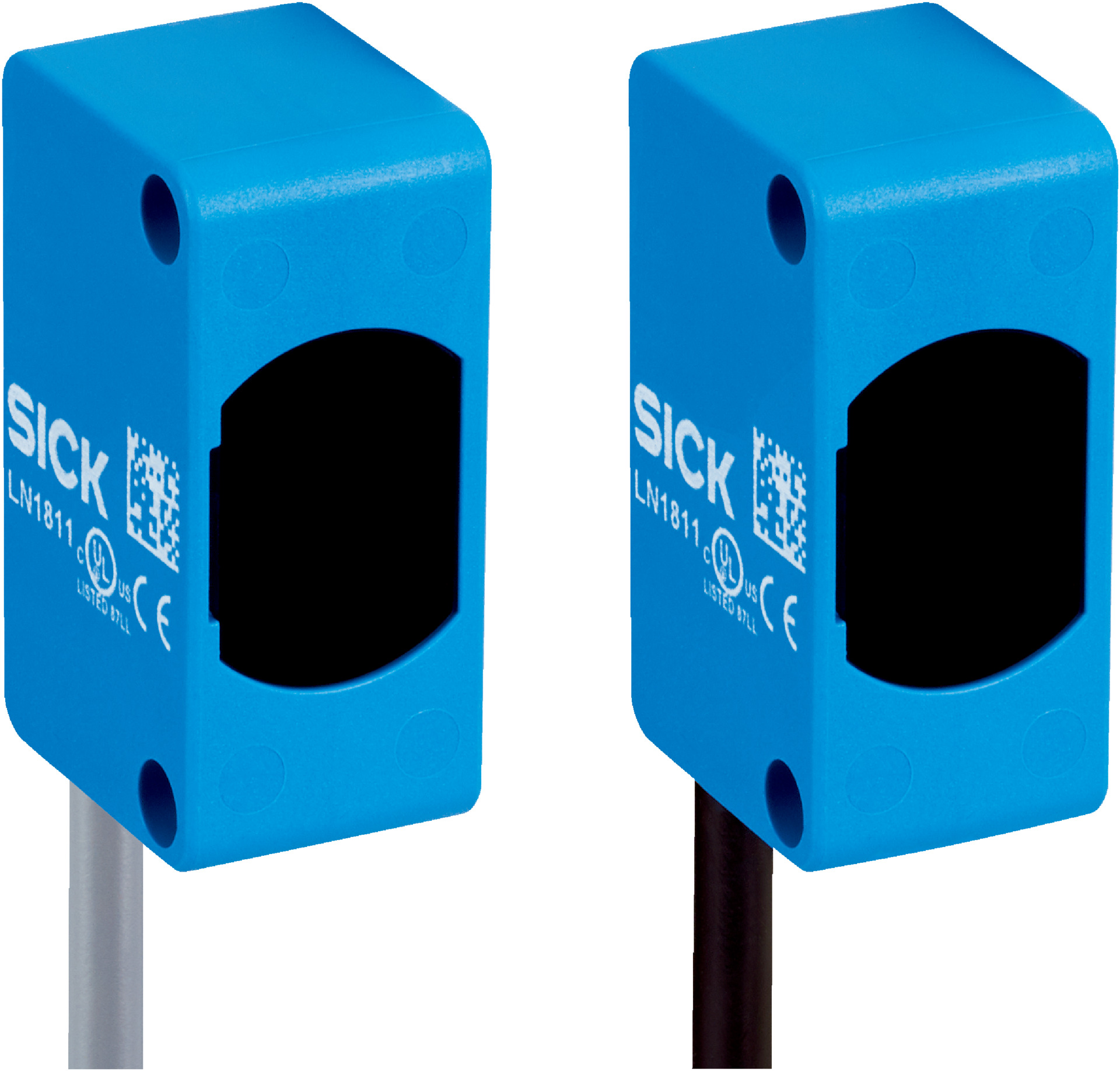

Through-beam Photoelectric Sensor ZSE18-7HZ1G3 | IP67 Rated | 17m Sensing Range | 1000 kHz Switching Frequency | by SICK
The ZSE18-7HZ1G3 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a maximum sensing range of up to 17 meters and a high switching frequency of 1,000 kHz. With an IP67 rated enclosure, it ensures reliable performance in dusty and wet environments, making it ideal for safety and monitoring applications in manufacturing and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, light switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 31mm x 22mm x 14mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Maximum sensing range up to 17 meters
- Infrared LED light source with 850 nm wavelength
- Compact hybrid housing design in blue color
- High switching frequency of 1,000 kHz
- IP67 rated enclosure for dust and water protection
- Wide operating temperature range from -40°C to +55°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZSE18-7HZ1G3 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
