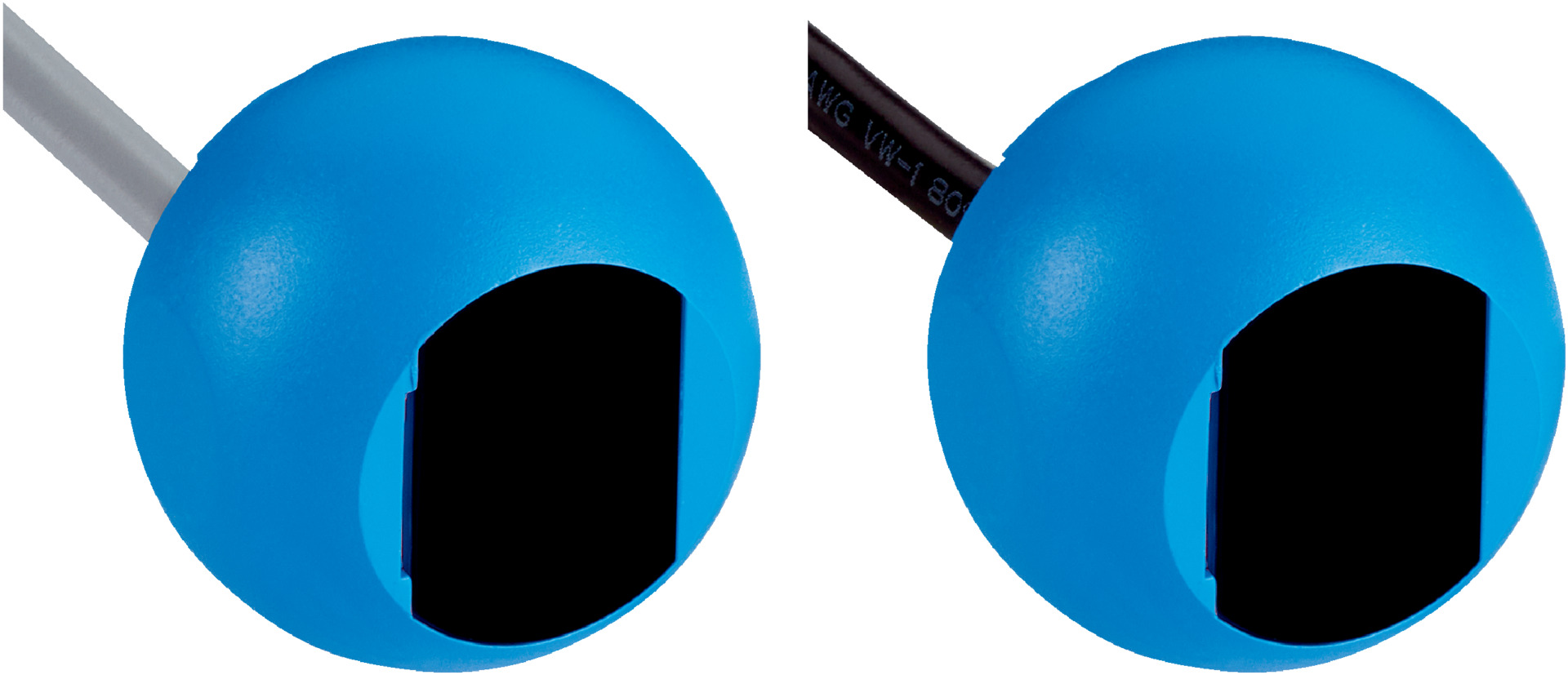

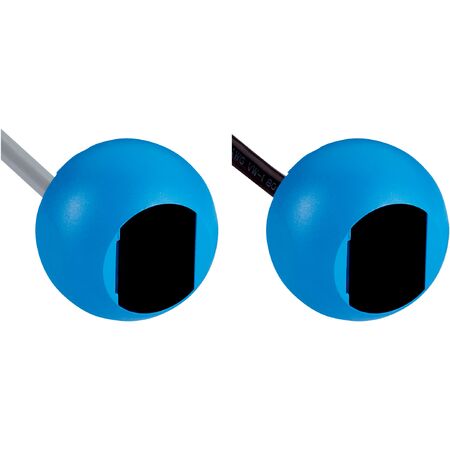

Through-beam Photoelectric Sensor ZSE18-8AB1G3 | IP67 Rated | 17m Sensing Range | Fast Response Time | by SICK
The ZSE18-8AB1G3 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a maximum sensing range of up to 17 meters and a fast response time of ≤ 500 µs. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection, manufacturing process control, and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: 4-wire cable, 2 m length
- Cable material: Plastic, PVC
- Conductor cross section: 0.13 mm²
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 24mm x 26mm x 23mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Hybrid housing design with blue color
- Maximum sensing range up to 17 meters
- Infrared LED light source with 850 nm wavelength
- Push-pull PNP/NPN switching outputs with light and dark switching modes
- High switching frequency of 1,000 kHz and fast response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZSE18-8AB1G3 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
