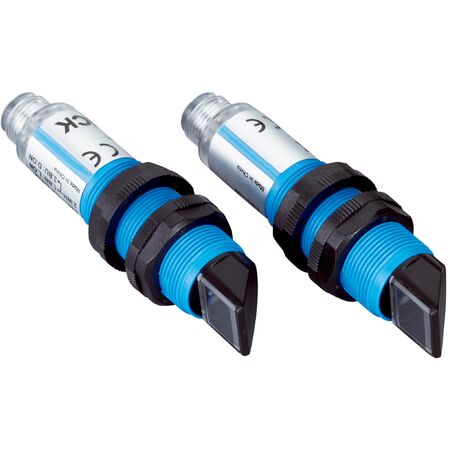

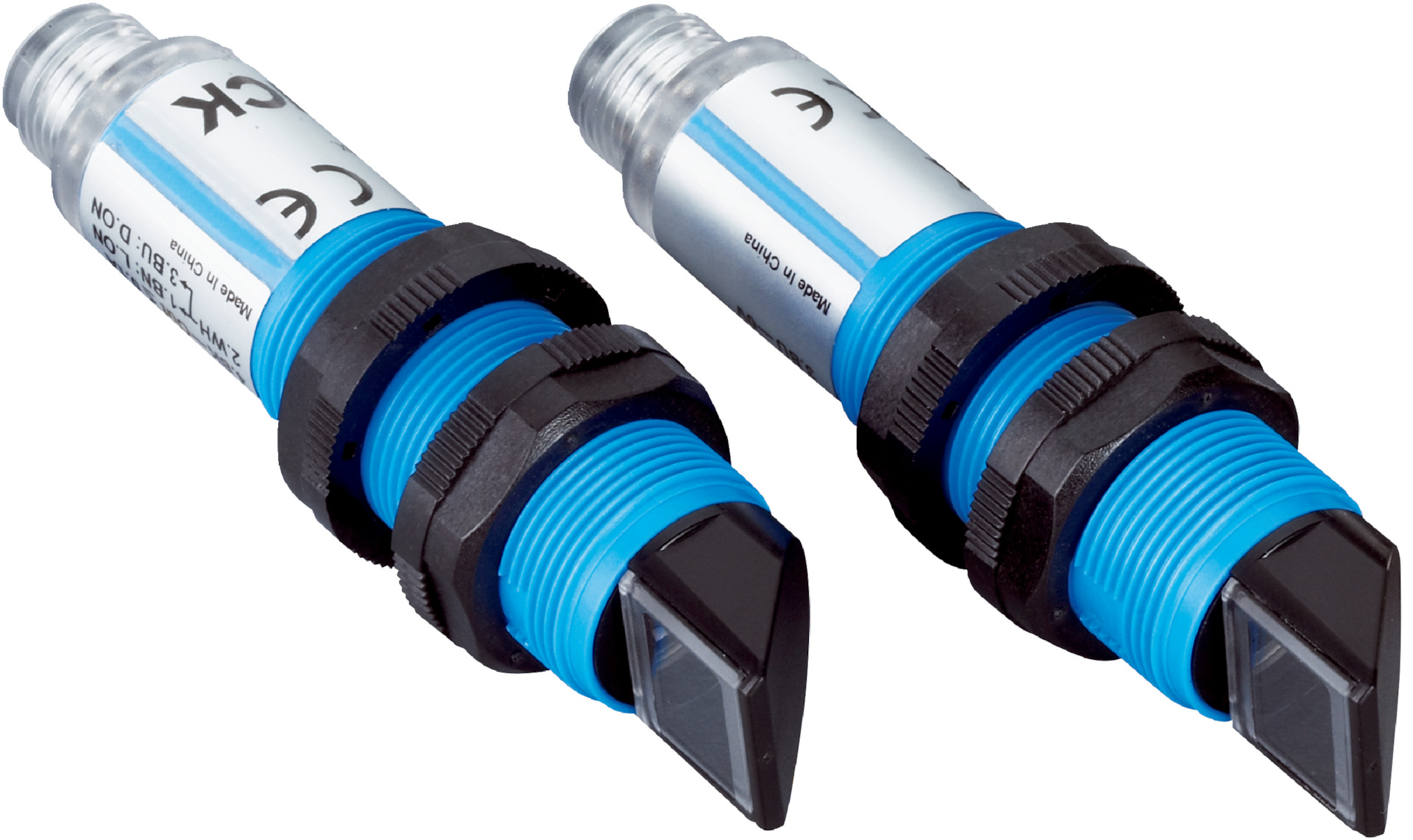

Through-beam Photoelectric Sensor | IP67 Rated | 19m Sensing Range | NPN Output | by SICK
The Through-beam Photoelectric Sensor is designed for industrial automation, featuring a robust IP67-rated housing and a sensing range of up to 19 meters. With a fast response time of ≤ 0.5 ms and a high switching frequency of 1000 Hz, this sensor is perfect for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: ≤ 20 mA
- Power consumption receiver: ≤ 15 mA
- Switching output: NPN
- Switching mode: Light/dark switching
- Signal voltage NPN HIGH/LOW: Approx. VS / < 1.8 V
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: 4-wire cable, 2 m length
- Cable diameter: Ø 3.8 mm, PVC material
- Protection class: III
- Housing material: Plastic PBT/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Weight: 124 g
- Dimensions (H x L x W): 18mm x 77mm x 18mm
- Weight: 0.124 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red LED light source with 645 nm wavelength
- Sensing range up to 19 m, max 25 m
- Radial optical axis with approx. 5° focus and dispersion angle
- NPN switching output with light/dark switching mode
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Robust plastic housing with IP67 enclosure rating
- Wide operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VSE180-2N41139 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
