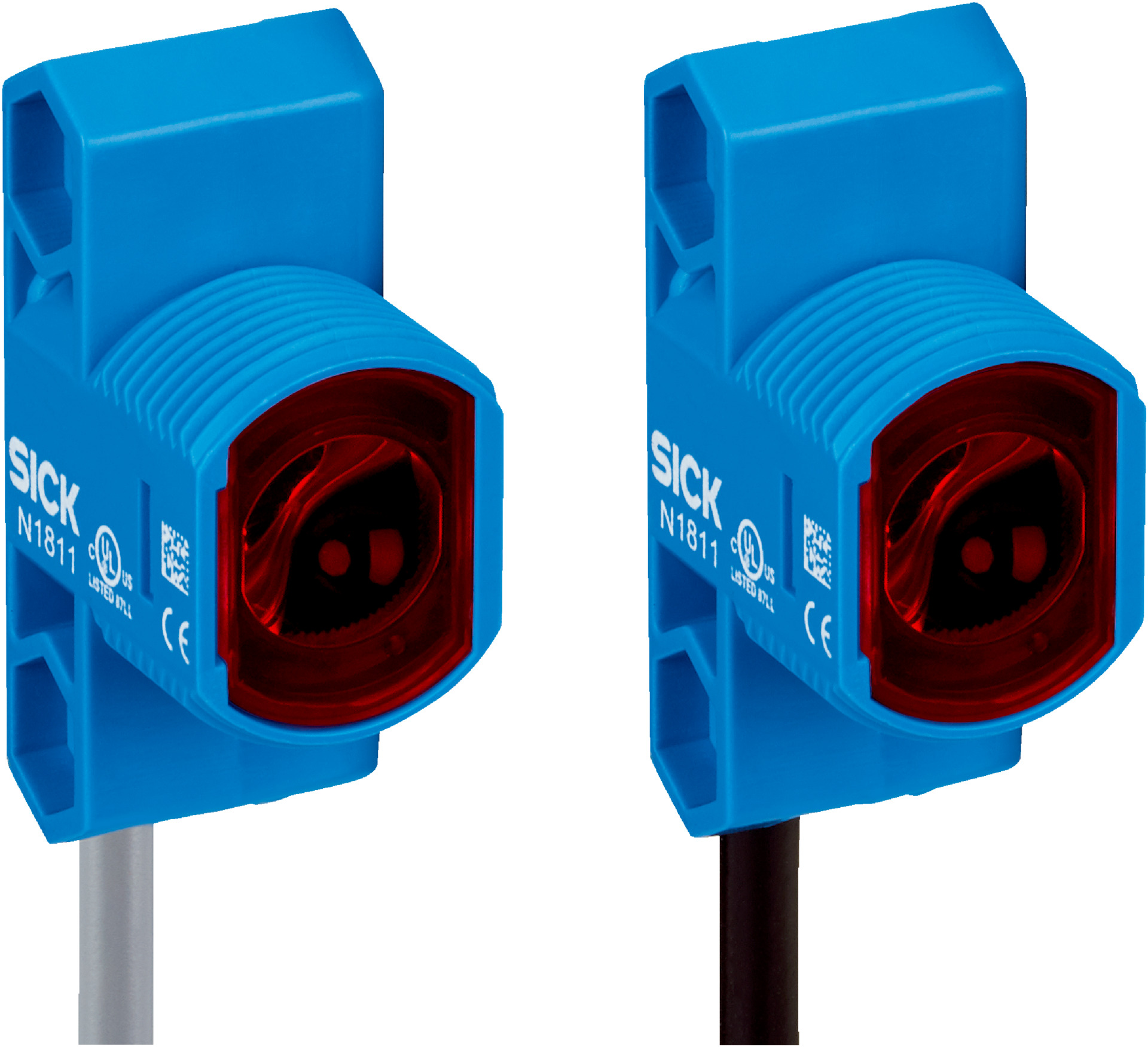

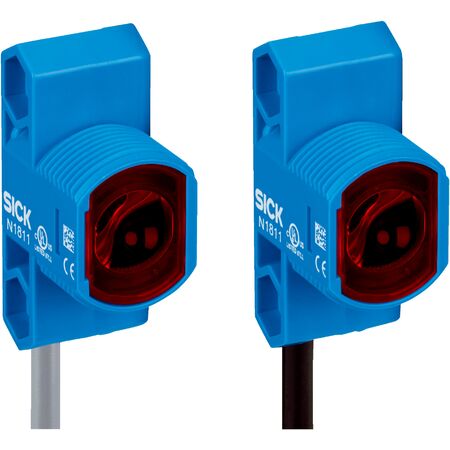

Through-Beam Photoelectric Sensor ZSE18-2AB4B8 | IP67 Rated | 20m Sensing Range | Fast Response Time | by SICK
The ZSE18-2AB4B8 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 20 meters and a fast response time of ≤ 500 µs. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection, manufacturing process control, and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: Cable with M12 male connector, 4-pin, 150 mm
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Light wavelength: 625 nm
- Light spot size: Ø 125 mm at 1000 mm distance
- Dimensions (H x L x W): 34.8mm x 21.9mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light LED
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter
- Push-pull PNP/NPN switching outputs with light and dark switching modes
- High switching frequency of 1,000 kHz and fast response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Wide operating temperature range from -40°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZSE18-2AB4B8 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
