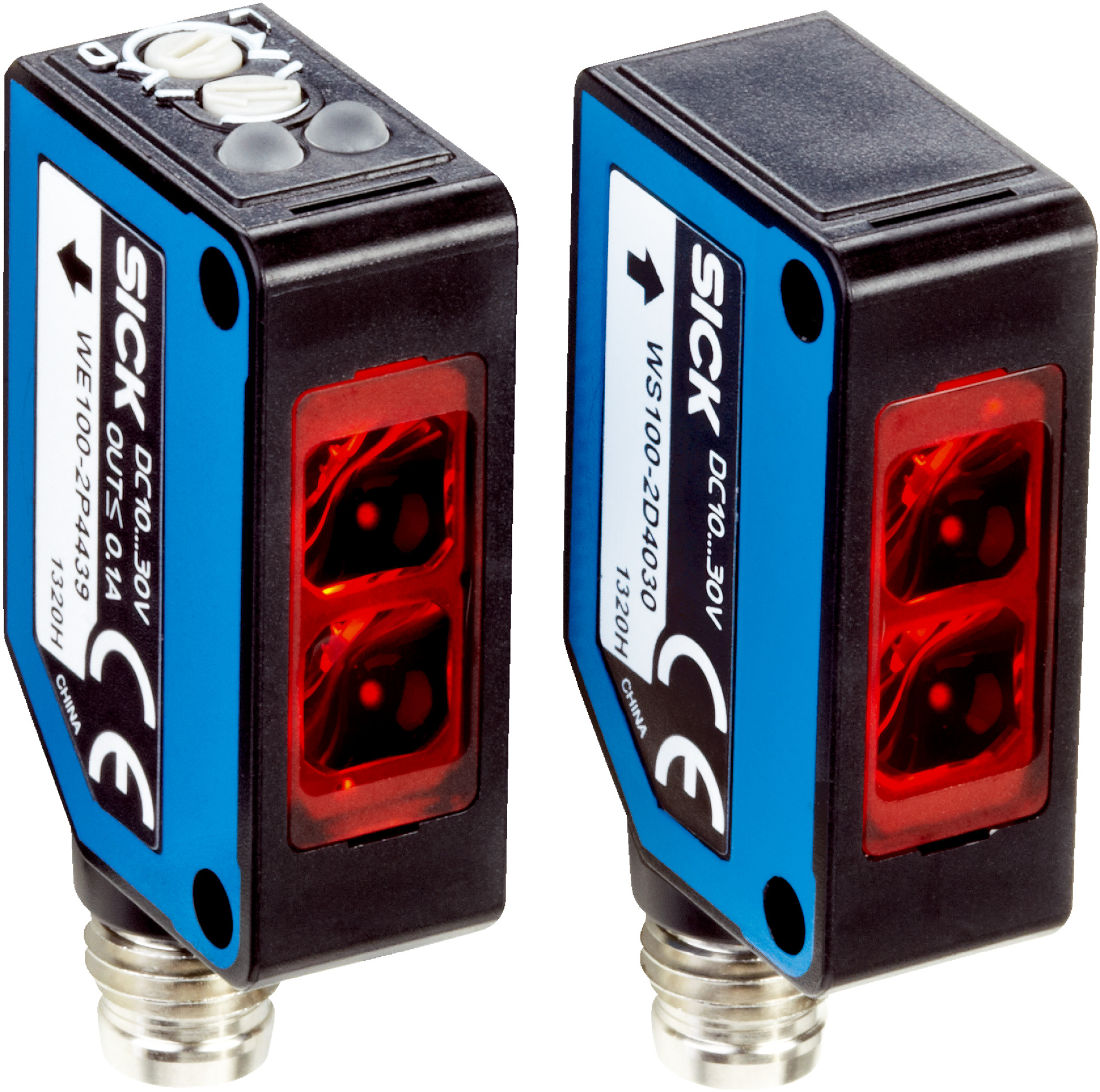

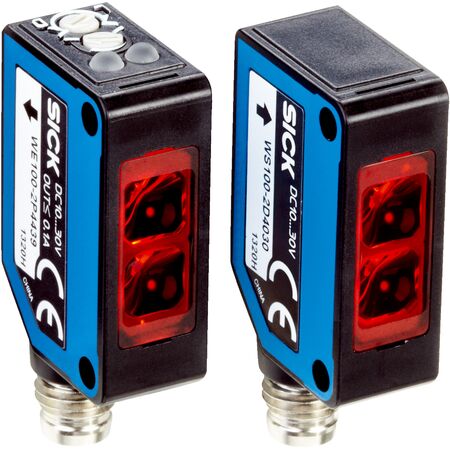

Through-beam Photoelectric Sensor WS/WE100-2P4439 | IP67 Rated | 20m Sensing Range | 1000 Hz Switching Frequency | by SICK
The Through-beam Photoelectric Sensor WS/WE100-2P4439 is designed for industrial automation, featuring a sensing range of up to 20 meters and a high switching frequency of 1000 Hz. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for safety monitoring and object detection in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: ≤ 15 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male connector M8, 4-pin
- Protection class: III
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Wave length: 632 nm
- Light spot size at 12 m: Ø 850 mm
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Rectangular housing design with visible red LED light source
- Sensing range up to 20 meters
- Adjustable sensitivity via 270° potentiometer
- High switching frequency of 1000 Hz
- IP67 rated enclosure for dust and water protection
- Robust plastic housing with stainless steel mounting brackets
- Light/dark switching mode selectable
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WS/WE100-2P4439 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
