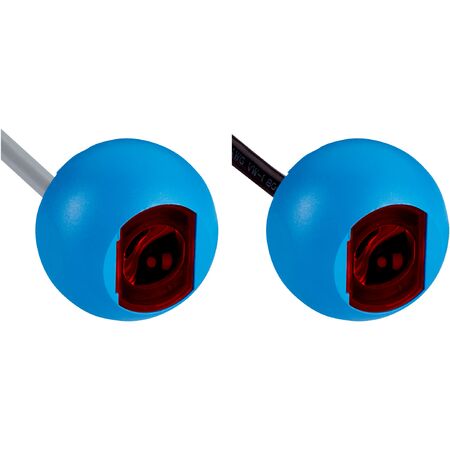

Through-beam Photoelectric Sensor ZSE18-8AB5B8 | IP67 Rated | 20m Sensing Range | 1000 kHz Switching Frequency | by SICK
The ZSE18-8AB5B8 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 20 meters and a high switching frequency of 1,000 kHz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection and manufacturing process control. Its durable design and low power consumption contribute to extended product life and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: Cable with male M8, 4-pin connector, 150 mm length
- Cable material: Plastic, PVC
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 24mm x 26mm x 23mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red LED light source with 625 nm wavelength
- Sensing range up to 20 meters
- Hybrid housing design in blue color
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 1,000 kHz
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and alignment for optimal sensor performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces waste through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZSE18-8AB5B8 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
