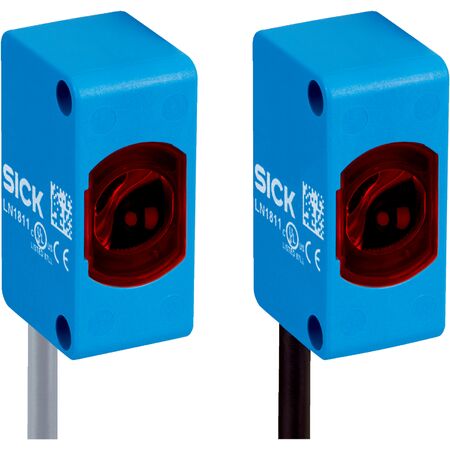

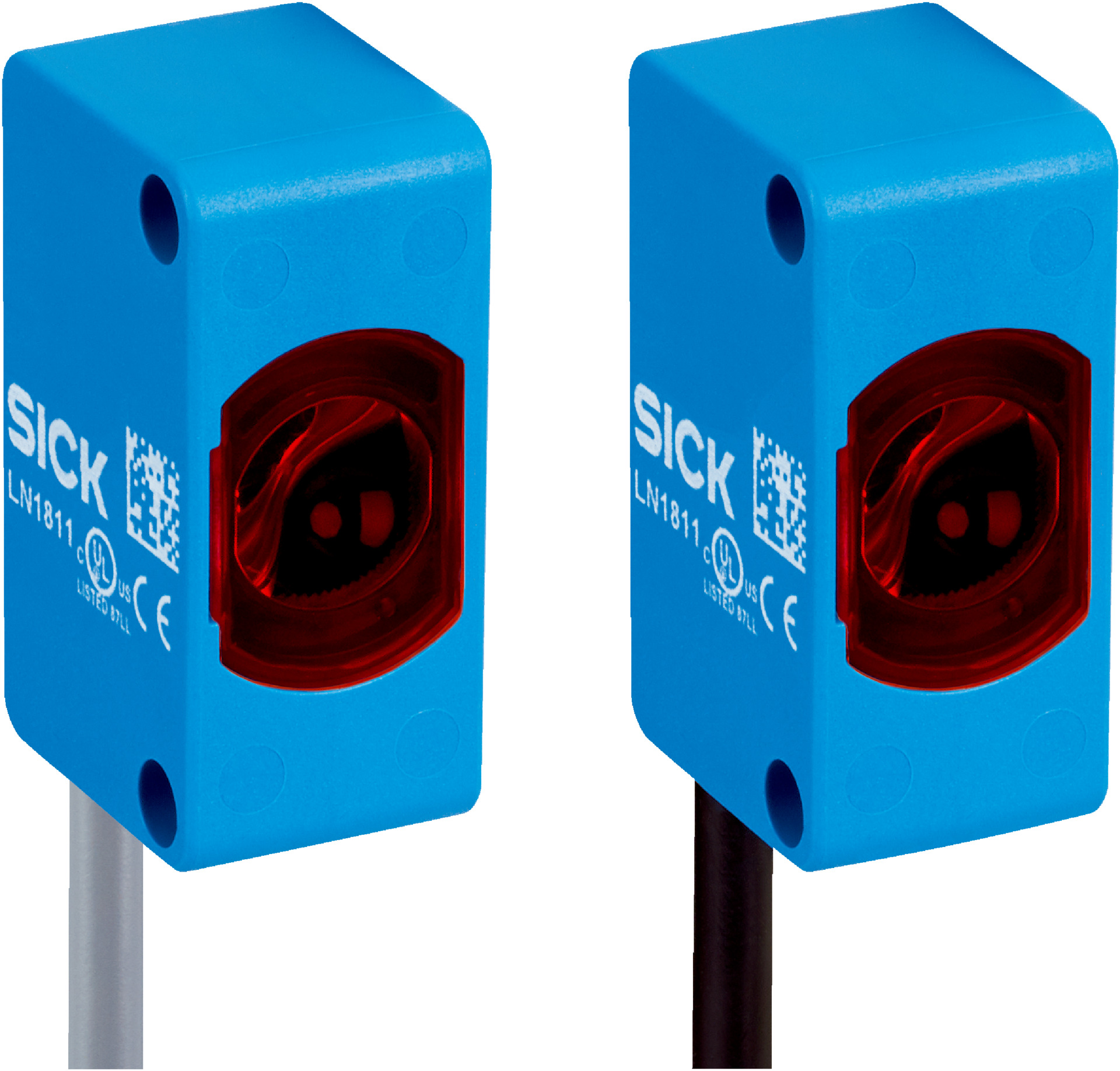

Through-beam Photoelectric Sensor ZSE18-7AB1E8 | IP67 Rated | 20m Sensing Range | 1000 kHz Switching Frequency | by SICK
The ZSE18-7AB1E8 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 20 meters and a high switching frequency of 1,000 kHz. With an IP67 rated enclosure, it ensures reliable performance in dusty and wet environments, making it ideal for safety and monitoring applications in manufacturing and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: 4-wire cable, 1 m length, PVC insulation
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31mm x 22.4mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red LED light source
- Sensing range up to 20 meters
- Hybrid housing design in blue color
- Push-pull switching output with PNP/NPN options
- High switching frequency of 1,000 kHz
- IP67 rated enclosure for dust and water protection
- Wide operating temperature range from -40°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZSE18-7AB1E8 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
