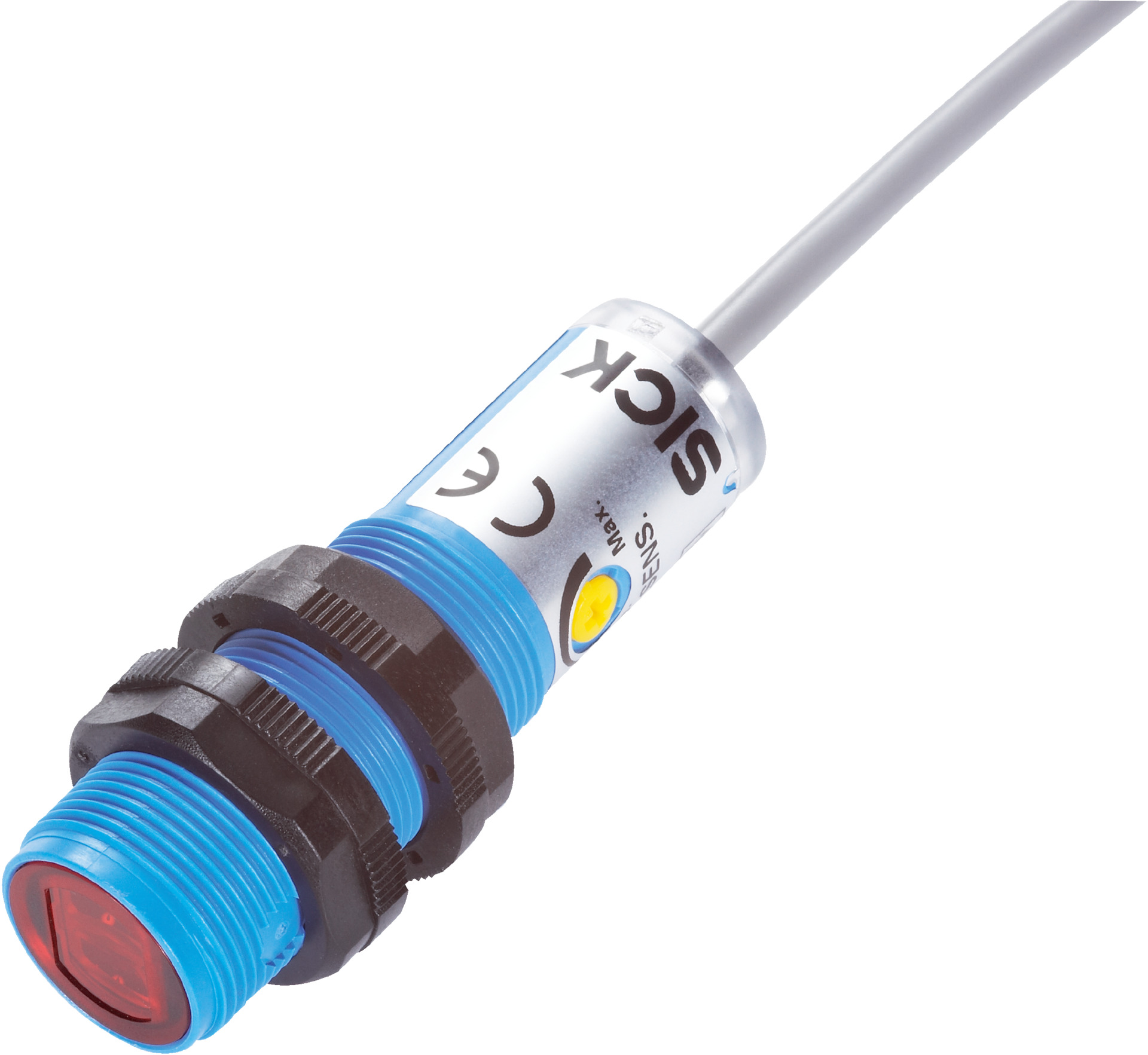

Through-beam Photoelectric Sensor | IP67 Rated | 20m Sensing Range | Fast Response Time | by SICK
The Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 20 meters and an IP67 rated enclosure for dust and water protection. With a fast response time of ≤ 0.5 ms and selectable light/dark switching mode, it's perfect for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: 20 mA
- Power consumption receiver: 15 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Weight: 124 g
- Dimensions (H x L x W): 18mm x 62.5mm x 18mm
- Weight: 0.124 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red LED light source with 645 nm wavelength
- Sensing range up to 20 meters
- Cylindrical housing with M18 x 1 thread diameter
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 0.5 ms and switching frequency of 1000 Hz
- Selectable light/dark switching mode via control cable
- Robust plastic housing (PBT/PC) and optics (PMMA)
- Wide ambient operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper alignment and secure mounting.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

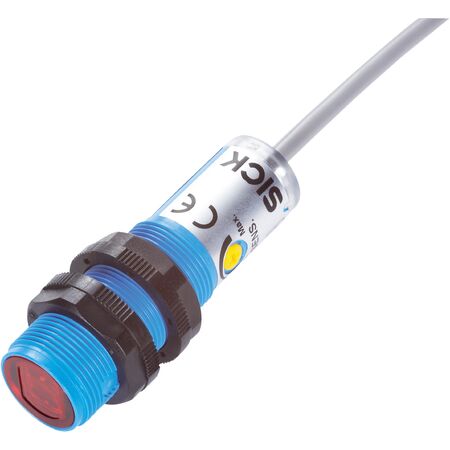

The SICK VSE180-2P41137 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
