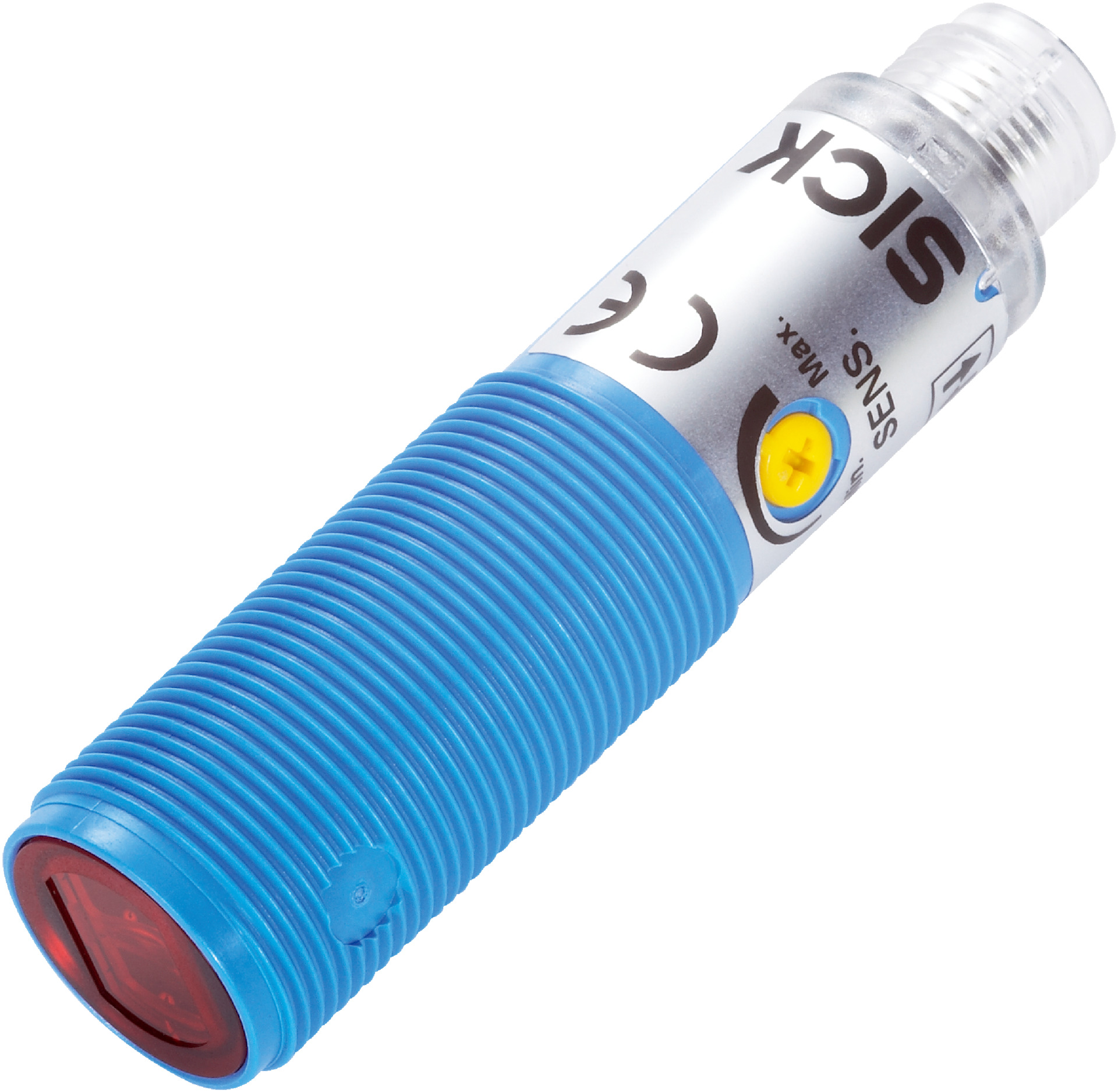

Through-Beam Photoelectric Sensor | IP67 Rated | 20m Sensing Range | Fast Response Time | by SICK
The Through-Beam Photoelectric Sensor VSE180-2P42437 is designed for industrial automation, featuring a sensing range of up to 20 meters and an IP67 rated enclosure for dust and water protection. With a fast response time of ≤ 0.5 ms and selectable light/dark switching mode, it's perfect for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: 20 mA
- Power consumption receiver: 15 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Weight: 36 g
- Dimensions (H x L x W): 18mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red light LED with 645 nm wavelength
- Sensing range up to 20 meters
- Cylindrical plastic housing with M18 x 1 thread
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 0.5 ms and switching frequency of 1000 Hz
- Selectable light/dark switching mode via control cable
- Robust plastic housing material (PBT/PC) and optics (PMMA)
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VSE180-2P42437 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
