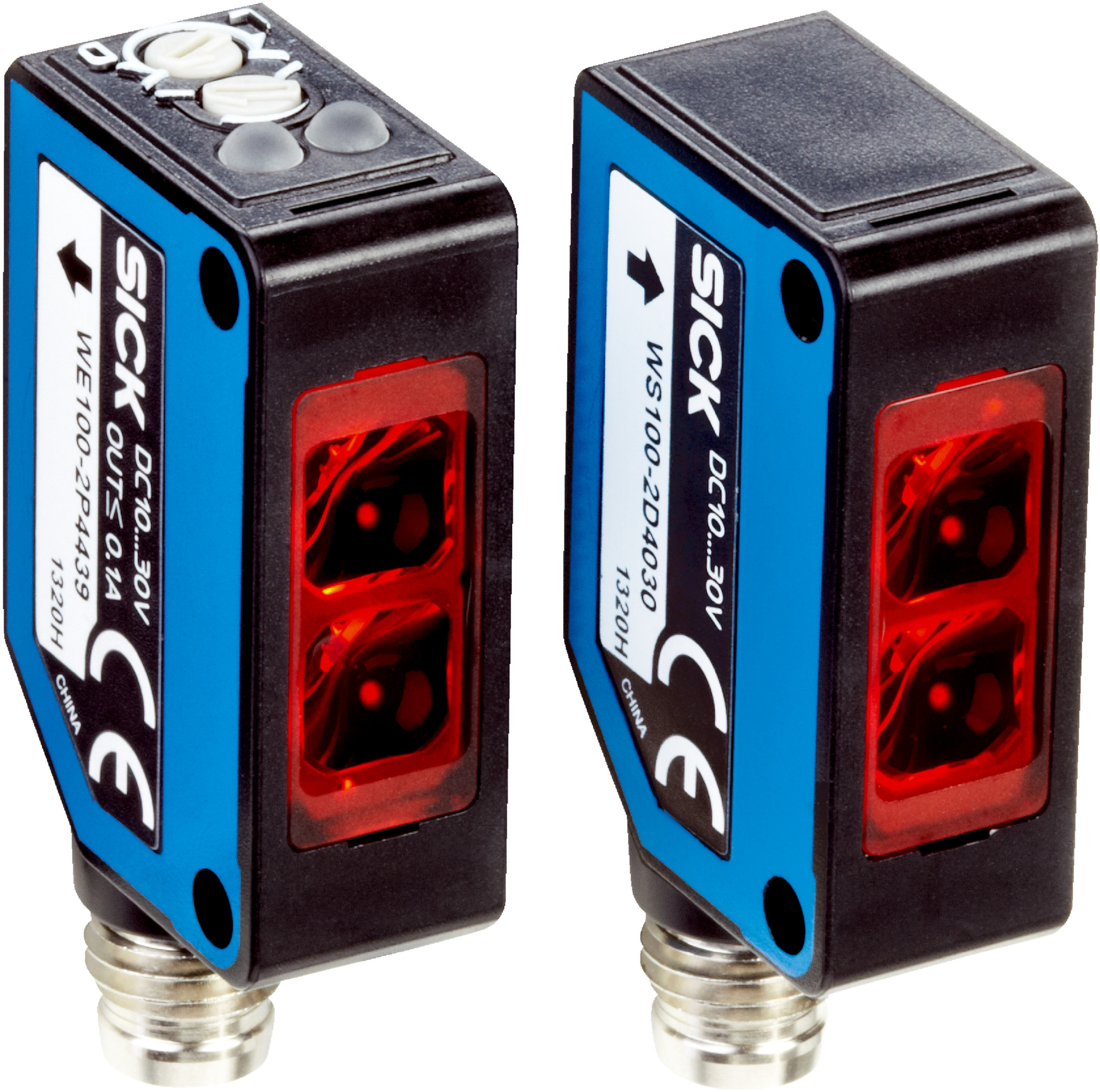

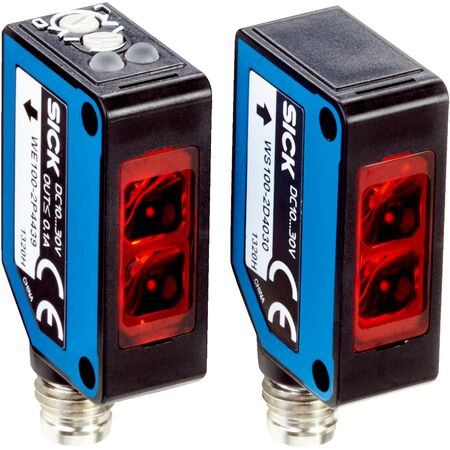

Through-beam Photoelectric Sensor WS/WE100-2P3439 | IP67 Rated | 20m Sensing Range | Fast Response Time | by SICK
The Through-beam Photoelectric Sensor WS/WE100-2P3439 is designed for industrial automation, featuring a sensing range of up to 20 meters and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for manufacturing process control and safety systems, ensuring reliable object detection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ±10%
- Power consumption sender: ≤ 15 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Signal voltage PNP HIGH/LOW: UV - 1.8 V / approx. 0 V
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Connector M8, 3-pin
- Circuit protection: Types A, B, D
- Protection class: III
- Housing material: Plastic ABS/PC/POM
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Ambient storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 20 meters, max 33 meters
- Rectangular housing design with LED light source
- Adjustable sensitivity via 270° potentiometer
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Robust plastic housing (ABS/PC/POM) and optics (PMMA)
- Connector M8, 3-pin for easy connection
- Includes stainless steel mounting brackets
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with ≤ 15 mA sender and ≤ 20 mA receiver
- Durable materials and long service life reduce waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WS/WE100-2P3439 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
