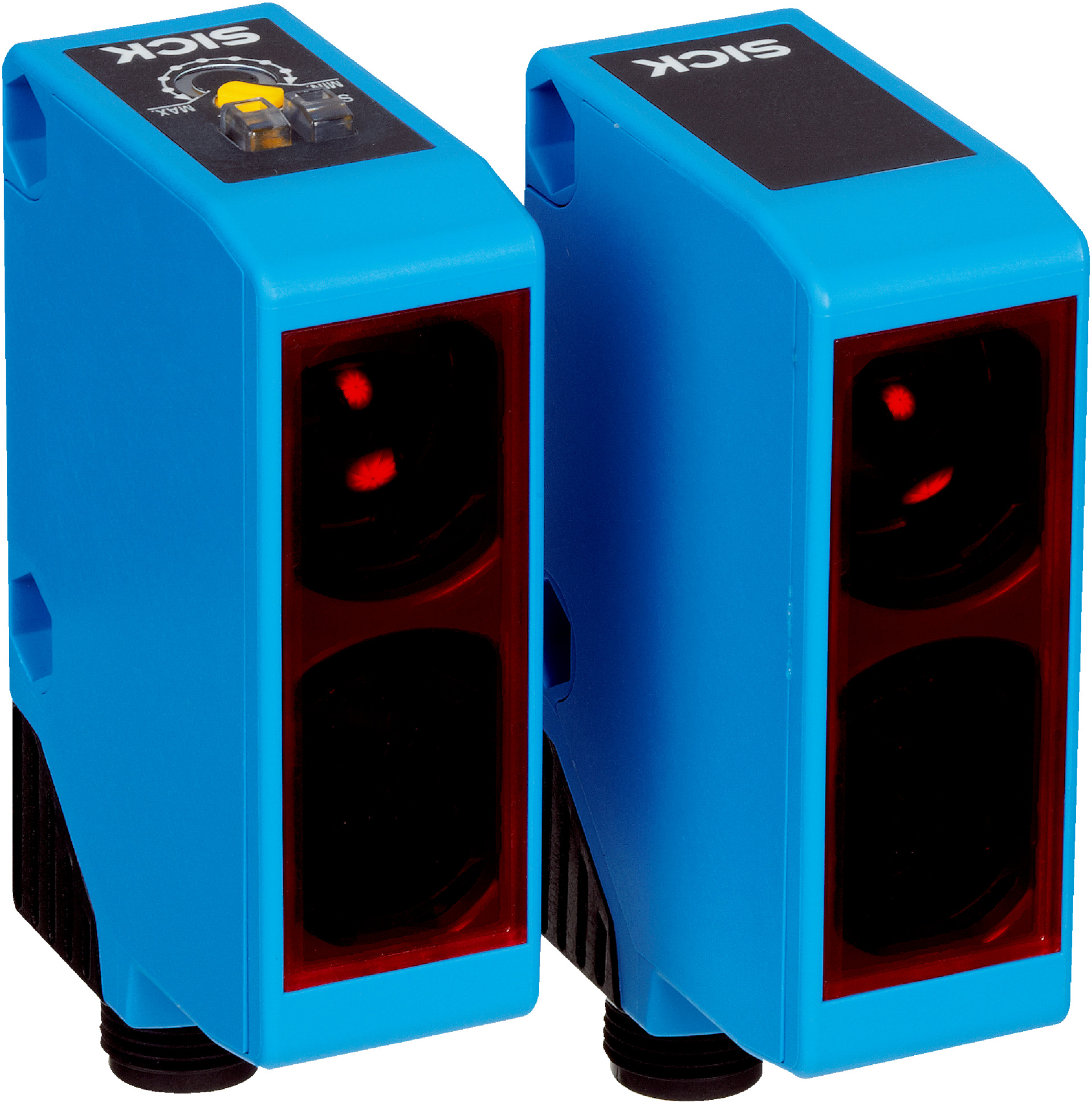

Through-beam Photoelectric Sensor WSE250-2F2431 | IP67 Rated | 40m Sensing Range | Fast Response Time | by SICK
The WSE250-2F2431 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 40 meters and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender and receiver: 20 mA each
- Switching output: PNP, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Angle of reception: 20°
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Operating temperature range: -25 °C to +55 °C
- Storage temperature range: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 65mm x 44mm x 20mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Rectangular housing design with visible red LED light source
- Sensing range up to 40 meters with max range 50 meters
- Potentiometer adjustment with 2 turns
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Robust plastic ABS housing and PMMA optics
- Male M12 4-pin connector for easy connection
- Supplied with BEF-W250 mounting bracket
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE250-2F2431 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
