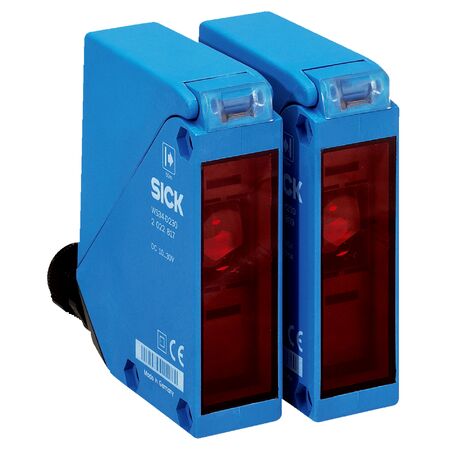

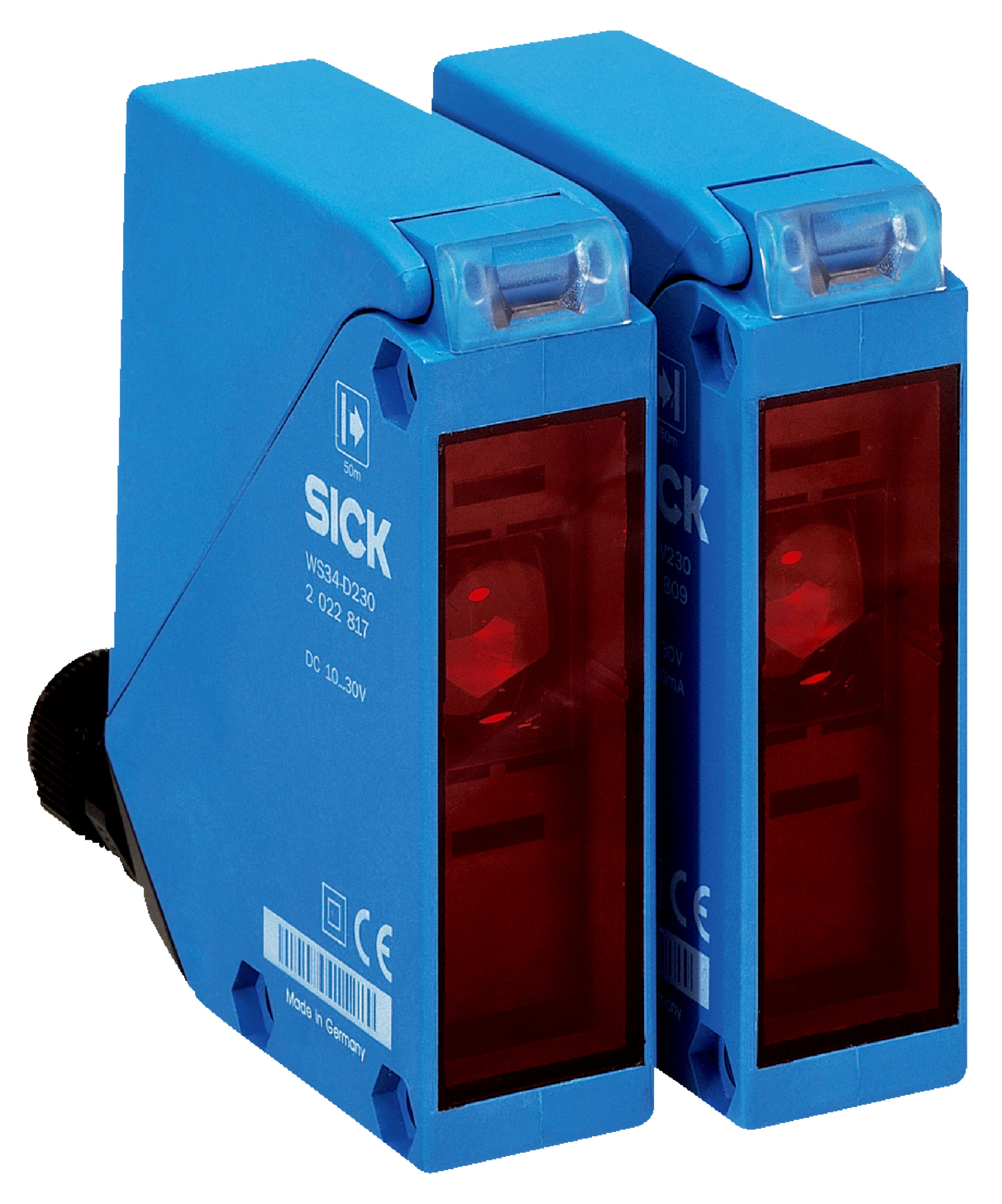

Through-Beam Photoelectric Sensor WS/WE34-V240 | IP67 Rated | 60m Sensing Range | Fast Response Time | by SICK
The WS/WE34-V240 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 60 meters and a fast response time of ≤ 500 µs. With selectable switching modes and an IP67 enclosure rating, it’s perfect for safety monitoring and material handling applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WS/WE34-V240 | IP67 Rated | 60m Sensing Range | Fast Response Time | by SICK
Brand: SICK
SKU: 1019251
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Optical sensor, Industrial sensor, SICK WS34 sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 50 mA (sender), 40 mA (receiver)
- Switching output: NPN, PNP selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Angle of reception: Approx. 2.5°
- Delay time adjustable from 0.5 s to 10 s
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: –40 °C to +60 °C
- Light wavelength: 660 nm (visible red light)
- Light spot size at 50 m: Ø 700 mm
- Housing material: Plastic, ABS
- Dimensions (H x L x W): 92mm x 70mm x 27mm
- Weight: 0.28 kg
Key Features
- Through-beam photoelectric sensor with visible red LED light source
- Sensing range up to 60 meters with approx. 1° focus
- Selectable switching modes: light switching and dark switching
- Adjustable delay time from 0.5 s to 10 s
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- Robust plastic ABS housing with IP67 enclosure rating
- Wide ambient operating temperature range from –40 °C to +60 °C
- Terminal connection with M16 gland for secure wiring
- Includes alarm output and time functions (off delay, switch-on delay)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WS/WE34-V240 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
