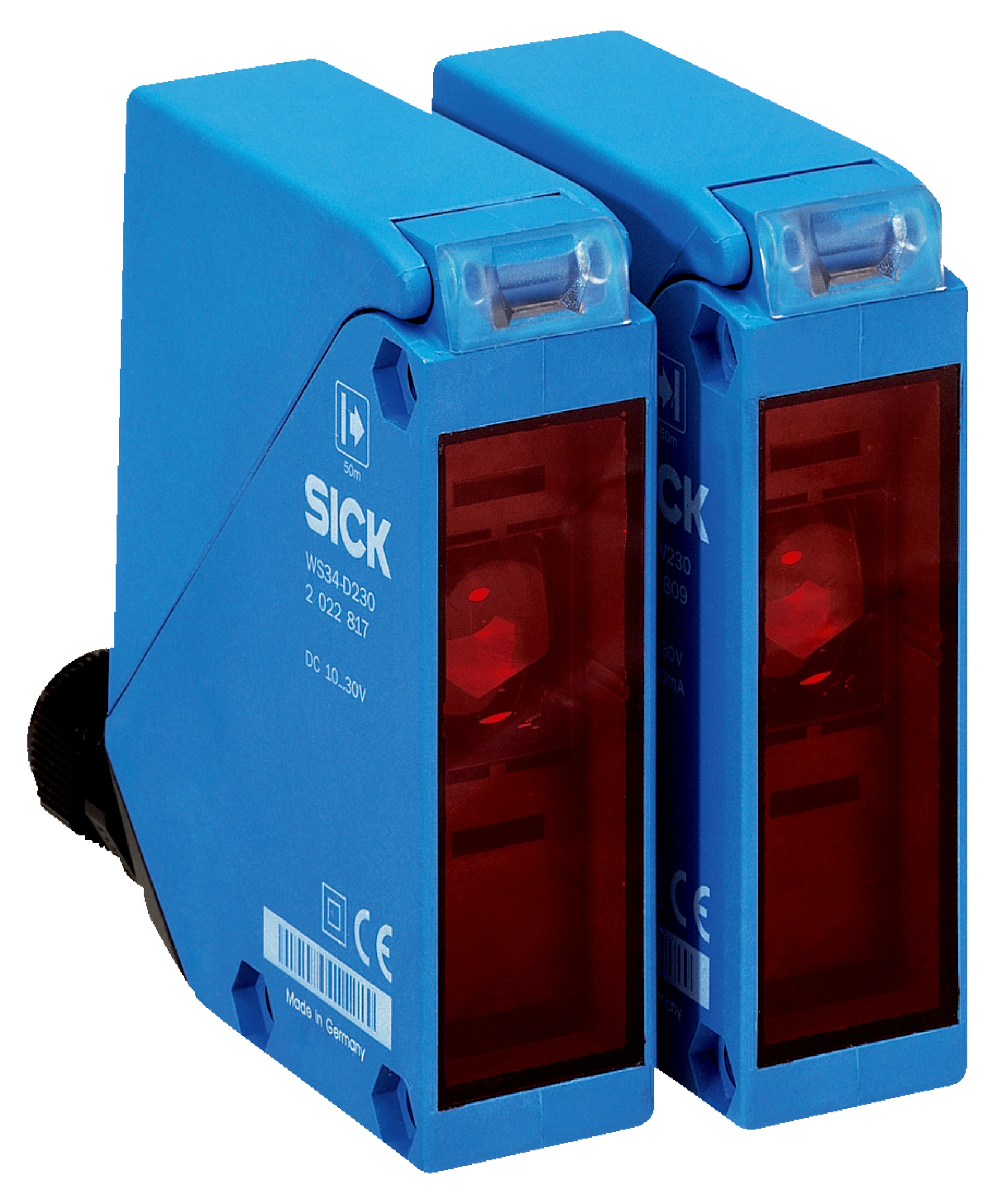

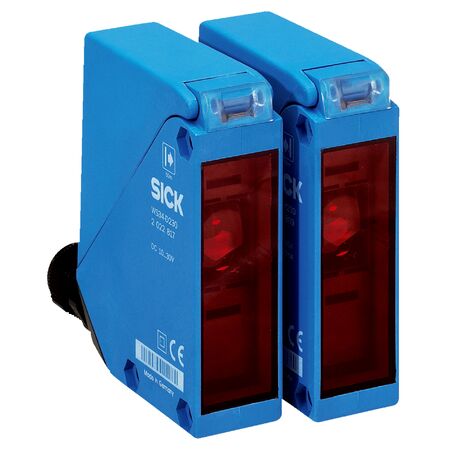

Through-beam Photoelectric Sensor WS/WE34-V540 | IP67 Rated | 60m Sensing Range | Fast Response Time | by SICK
The WS/WE34-V540 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 60 meters and a fast response time of ≤ 500 µs. With selectable switching modes and robust IP67-rated housing, it's perfect for object detection and safety monitoring in harsh environments, ensuring reliable performance in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-beam Photoelectric Sensor WS/WE34-V540 | IP67 Rated | 60m Sensing Range | Fast Response Time | by SICK
Brand: SICK
SKU: 1019252
Alternatively Known As: Photoelectric Sensor WS34-V540, Through-beam Sensor WE34-V540, Industrial Light Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: 50 mA, receiver: 40 mA
- Switching output: NPN, PNP with max output current ≤ 100 mA
- Response time: ≤ 500 µs, switching frequency: 1,000 Hz
- Light source wavelength: 660 nm visible red light LED
- Light spot size at 50 m: Ø 700 mm
- Angle of reception: approx. 2.5°
- Time delay adjustable from 0.5 s to 10 s
- Enclosure rating: IP67, housing material: Plastic ABS
- Operating temperature: –40 °C to +60 °C
- Connection type: M12 5-pin plug
- Dimensions (H x L x W): 92mm x 70mm x 27mm
- Weight: 0.28 kg
Key Features
- Through-beam photoelectric sensor with visible red LED light source
- Sensing range up to 60 meters with approx. 1° focus and 1° angle of dispersion
- Selectable switching modes: light switching and dark switching
- Adjustable time functions including off delay and switch-on delay
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- Robust plastic ABS housing with IP67 enclosure rating for harsh environments
- Wide ambient operating temperature range from –40 °C to +60 °C
- Connection via M12 5-pin plug with circuit protection and protection class II
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WS/WE34-V540 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
