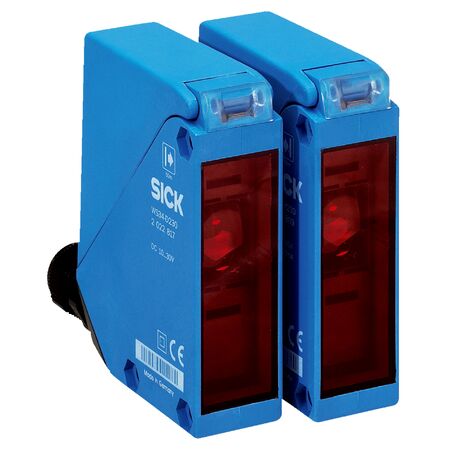

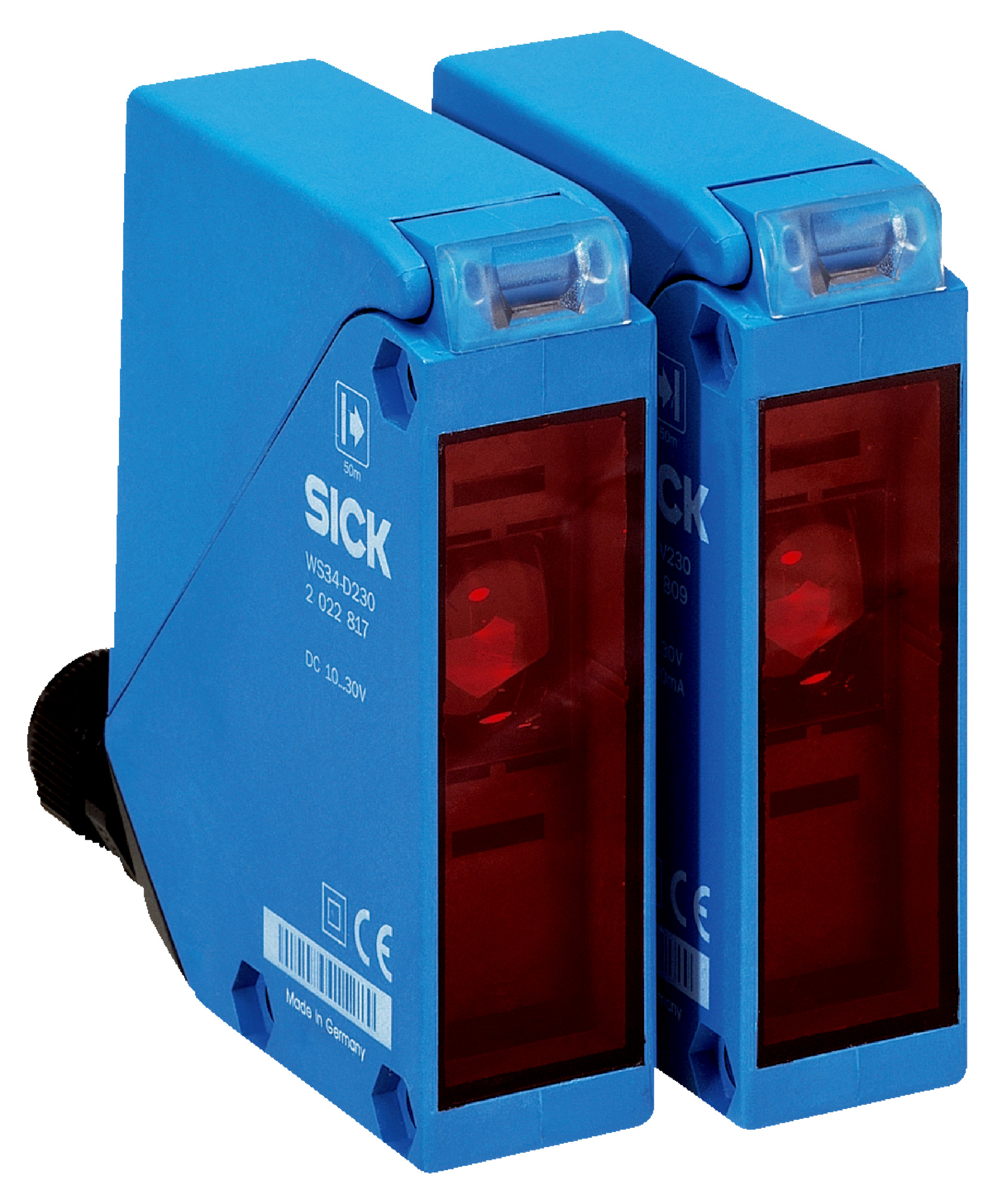

Through-Beam Photoelectric Sensor WS/WE34-B430 | IP67 Rated | 60m Sensing Range | Fast Response Time | by SICK
The Through-Beam Photoelectric Sensor WS/WE34-B430 is designed for industrial automation, featuring a robust IP67 enclosure and a sensing range of up to 60 meters. With a fast response time of ≤ 500 µs and selectable switching modes, it's perfect for object detection and safety monitoring in manufacturing processes. Built to withstand harsh environments, this sensor ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WS/WE34-B430 | IP67 Rated | 60m Sensing Range | Fast Response Time | by SICK
Brand: SICK
SKU: 1019254
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Optical sensor, Industrial sensor, SICK WS34-B430, SICK WE34-B430
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Sender 50 mA, Receiver 40 mA
- Switching output: NPN, PNP with max output current ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Angle of dispersion: Approx. 1°
- Light spot size at 50 m: Ø 700 mm
- Connection type: Male connector M12, 4-pin
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Housing material: Plastic, ABS
- Dimensions (H x L x W): 92mm x 70mm x 27mm
- Weight: 0.28 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red LED light source with 660 nm wavelength
- Sensing range up to 60 meters
- Rectangular housing design with IP67 enclosure rating
- Selectable switching modes: light/dark and PNP/NPN
- Fast response time of ≤ 500 µs and switching frequency of 1,000 Hz
- Robust plastic ABS housing suitable for harsh environments
- Wide ambient operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WS/WE34-B430 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
