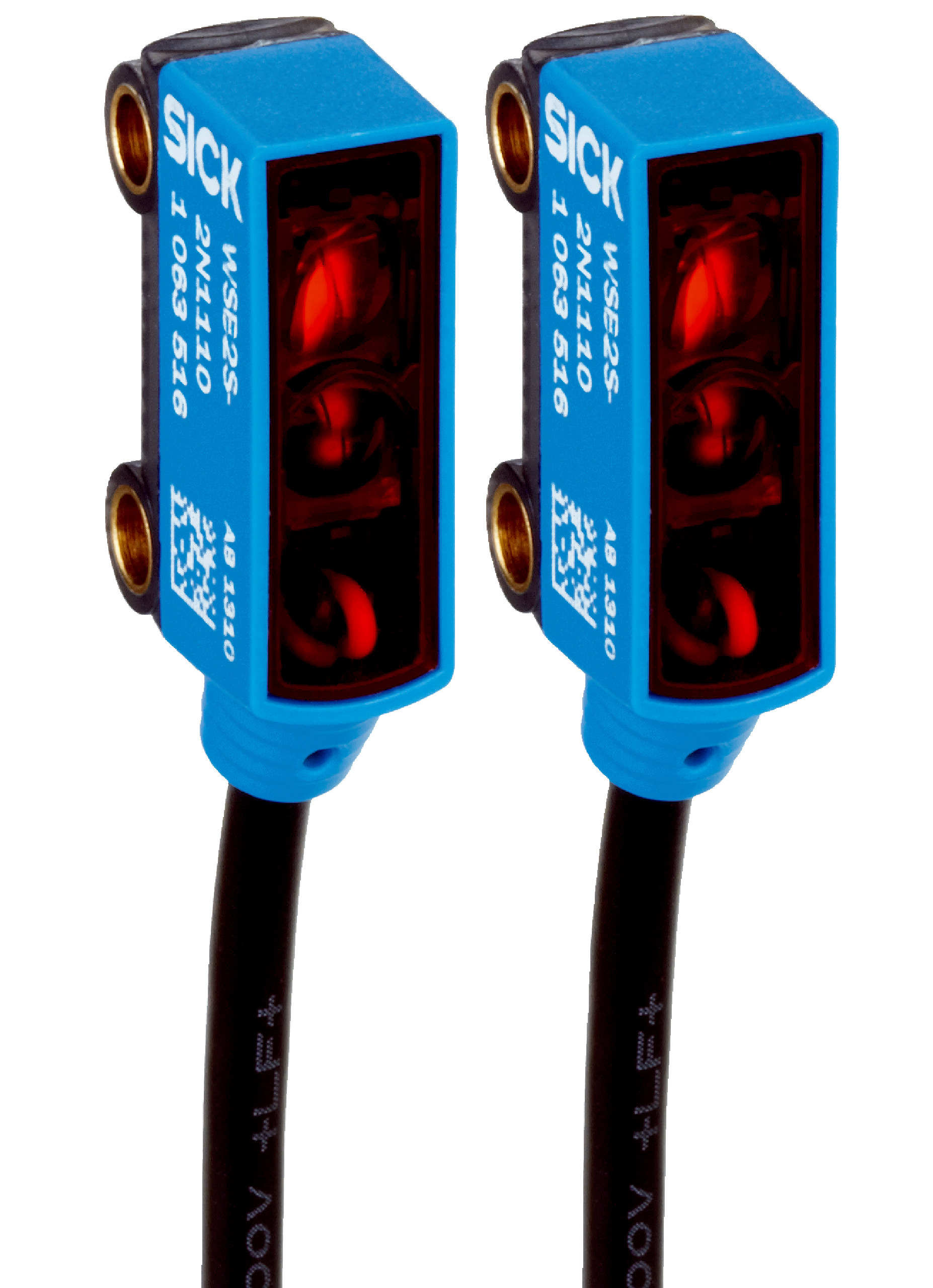

Through-Beam Photoelectric Sensor WSE2S-2P3130 | IP67 Rated | Fast Response Time < 0.4 ms | Sensing Range Up to 2.5m | by SICK
The WSE2S-2P3130 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 2.5 meters and a fast response time of less than 0.4 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for safety and monitoring applications in manufacturing and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 50 mA
- Switching mode: Light switching
- Response time: < 0.4 ms
- Switching frequency: 1,200 Hz
- Light source: PinPoint LED, wavelength 640 nm
- Light spot size: Ø 65 mm at 1,500 mm distance
- Connection: Cable with M8, 3-pin connector, 200 mm length
- Cable material: Plastic PVC, diameter Ø 3 mm
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- MTTFD: 2,659 years
- Ripple: < 5 V pp
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 2.5 meters
- Rectangular housing design with PinPoint LED light source
- High switching frequency of 1,200 Hz
- IP67 rated enclosure for dust and water protection
- Fast response time under 0.4 ms
- Cable with M8, 3-pin connector included
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 20 mA reduces energy usage
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE2S-2P3130 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
