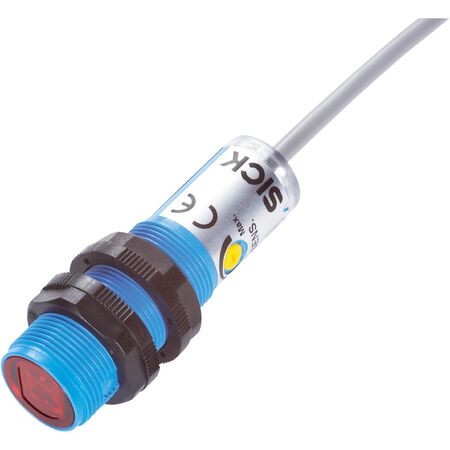

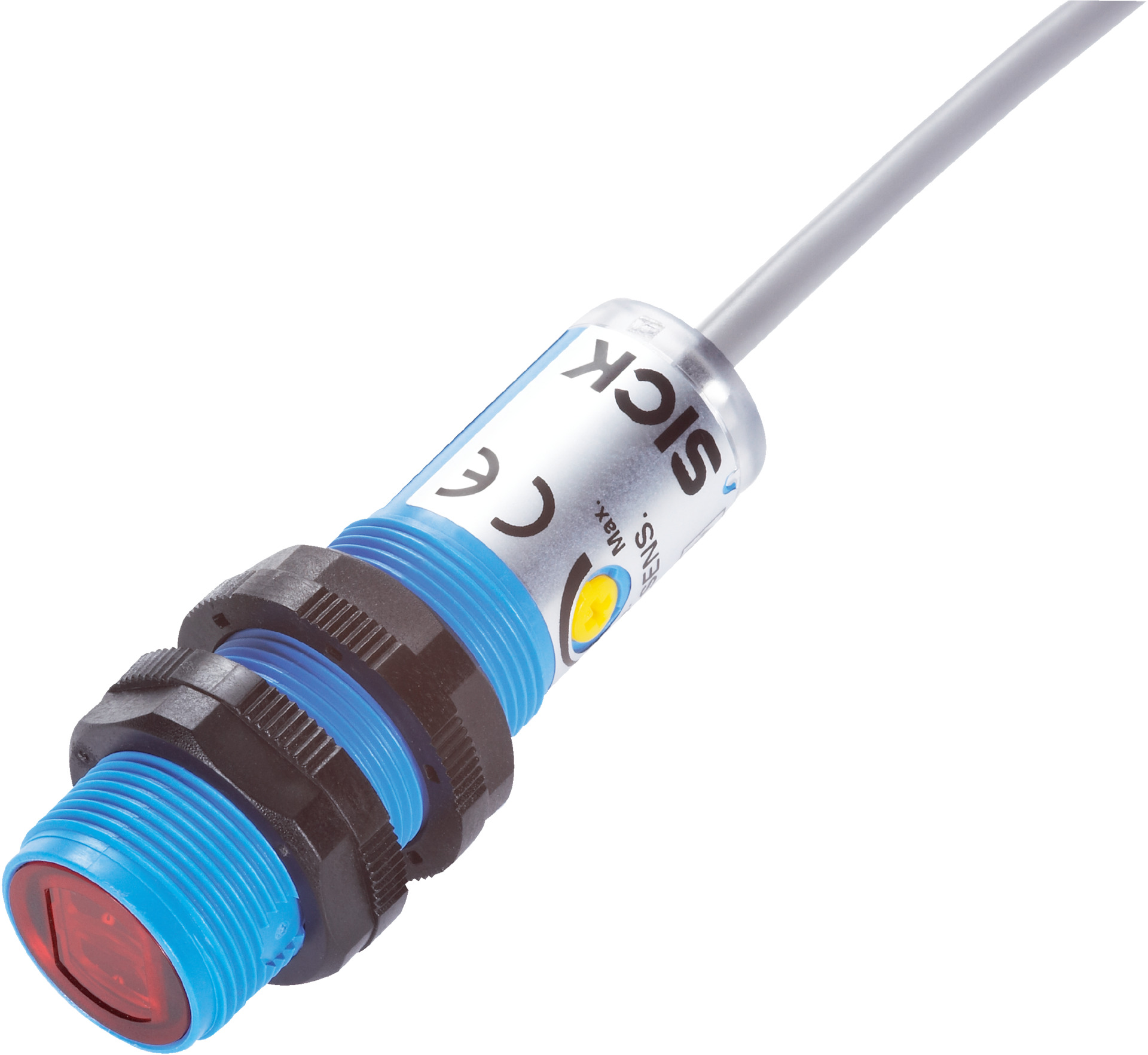

Through-beam Photoelectric Sensor VSE180-2N41137 | IP67 Rated | Fast Response Time | 20m Sensing Range | by SICK
The Through-beam Photoelectric Sensor VSE180-2N41137 is designed for industrial automation, featuring a sensing range of up to 20 meters and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: 20 mA
- Power consumption receiver: 15 mA
- Switching output: NPN transistor
- Switching mode: Light/dark switching selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Weight: 124 g
- Dimensions (H x L x W): 18mm x 62.5mm x 18mm
- Weight: 0.124 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red LED light source with 645 nm wavelength
- Sensing range up to 20 meters
- Cylindrical plastic housing with M18 x 1 thread
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 0.5 ms and switching frequency of 1000 Hz
- Selectable light/dark switching mode via control cable
- Robust plastic housing material (PBT/PC) and optics (PMMA)
- Wide operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VSE180-2N41137 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
