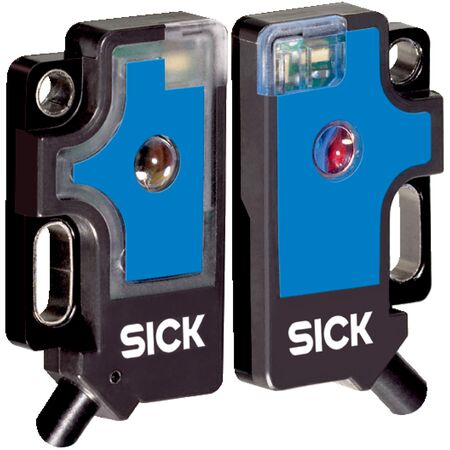

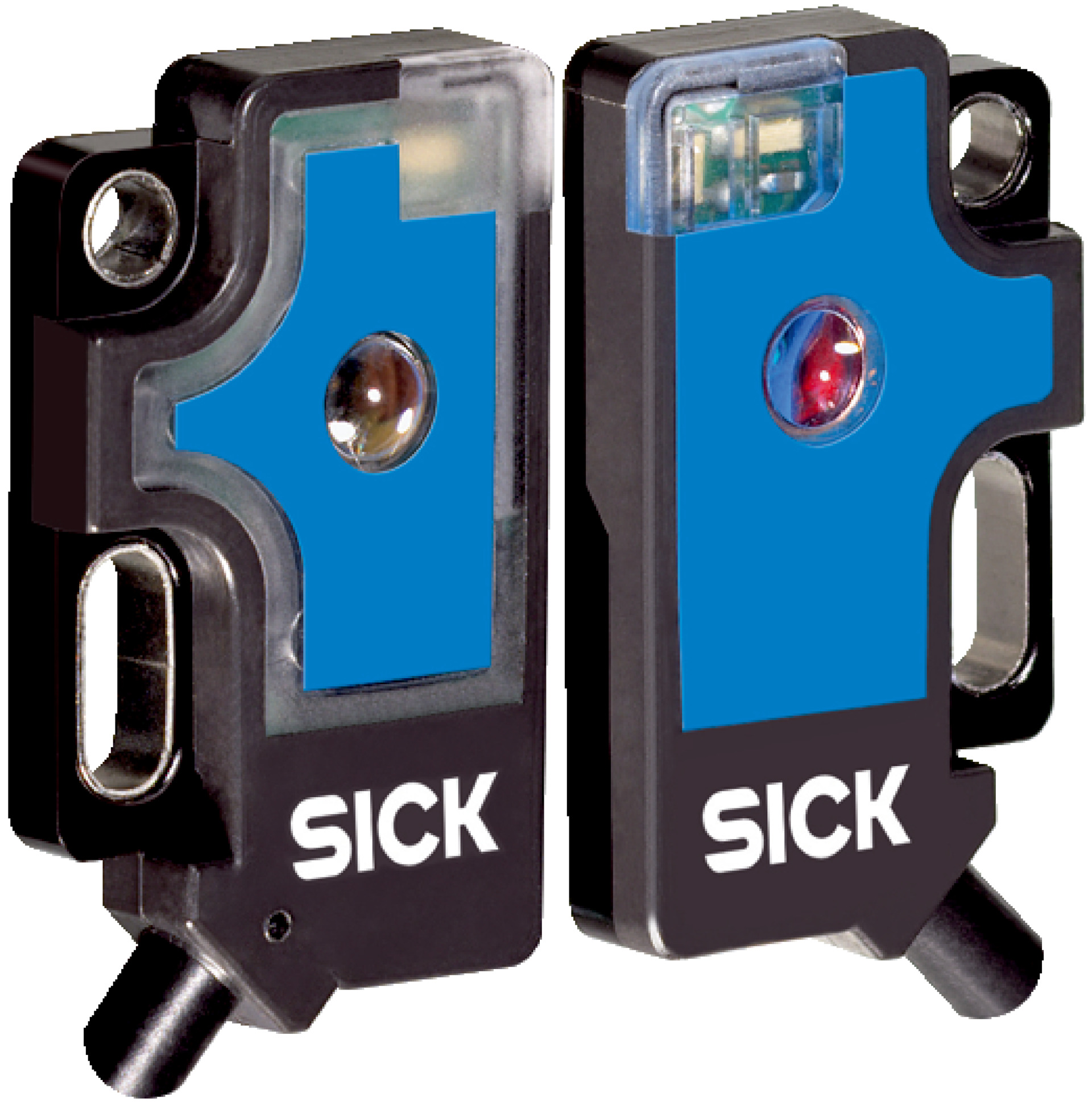

Through-beam Photoelectric Sensor WS/WE2F-F110 | IP67 Rated | Fast Response Time | High Switching Frequency | by SICK
The WS/WE2F-F110 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a high switching frequency of 1,000 Hz and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety systems. Its durable design and low power consumption make it a smart choice for efficient operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Ripple: < 5 V pp
- Switching output: PNP, dark switching mode
- Output current max: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 3-wire cable, 2 m length, PVC material
- Cable diameter: 2.4 mm
- Circuit protection: Reverse polarity and short-circuit protection
- Housing material: Plastic (PC)
- Optics material: Plastic (PC)
- Enclosure rating: IP67
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Light source: LED, wavelength 660 nm
- Sensing range: 0 m to 0.4 m
- Dimensions (H x L x W): 20mm x 3.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Rectangular plastic housing with visible red LED light source
- Sensing range up to 0.4 m with a light spot size of 10 mm at 100 mm distance
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection included
- Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems requiring precise sensing
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable IP67 housing reduces waste by extending product lifespan
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WS/WE2F-F110 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
