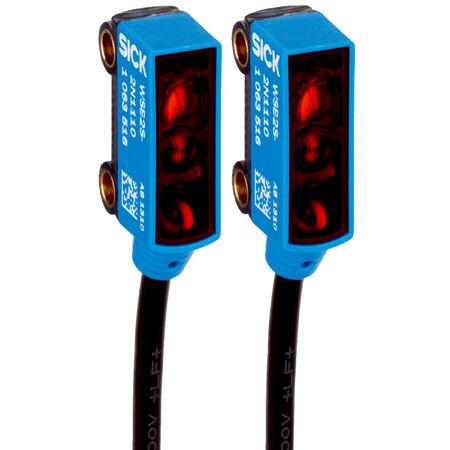

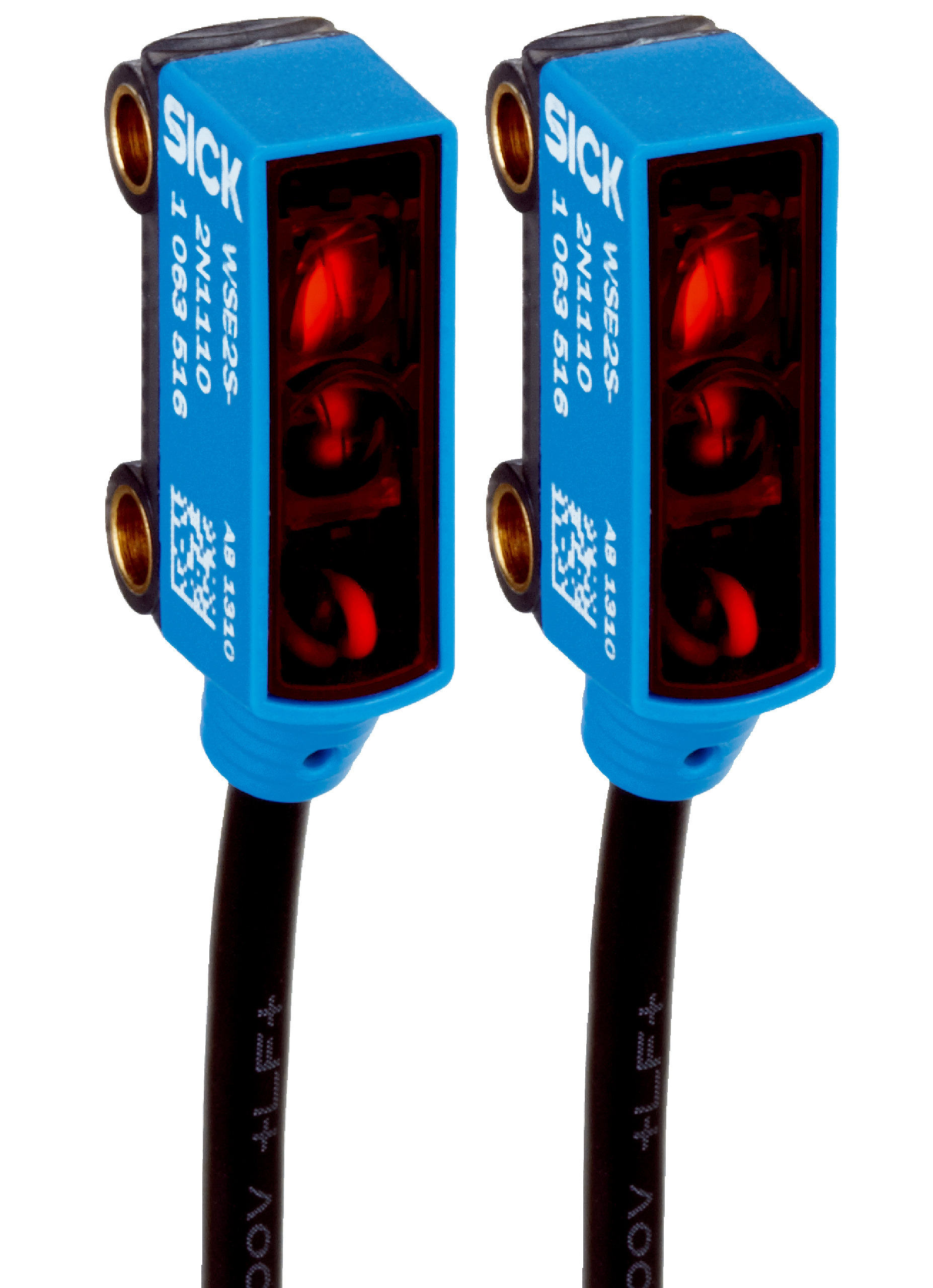

Through-Beam Photoelectric Sensor WSE2S-2E1330 | IP67 Rated | Fast Response Time | NPN Output | by SICK
The WSE2S-2E1330 Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 2 meters and a fast response time of under 0.4 ms. With an IP67 rated enclosure, it operates effectively in harsh environments, making it ideal for manufacturing process control and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, dark switching mode
- Maximum output current: ≤ 50 mA
- Response time: < 0.4 ms
- Switching frequency: 1200 Hz
- Connection: 3-wire cable, 2 m length, PVC material
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Light wavelength: 640 nm
- Light spot size at 1500 mm: Ø 65 mm
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 2 meters
- Rectangular housing design with PinPoint LED light source
- Fast response time under 0.4 ms and switching frequency of 1200 Hz
- NPN switching output with dark switching mode
- Robust IP67 rated enclosure suitable for harsh environments
- Wide operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of 20 mA reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE2S-2E1330 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
