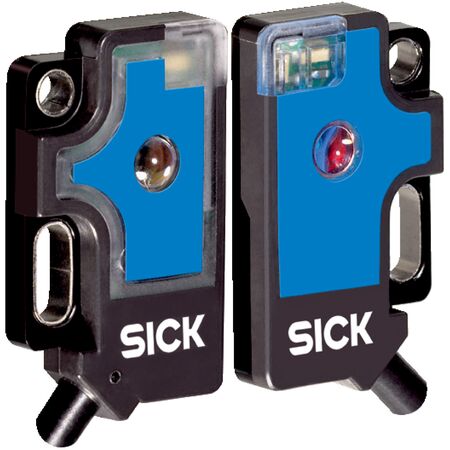

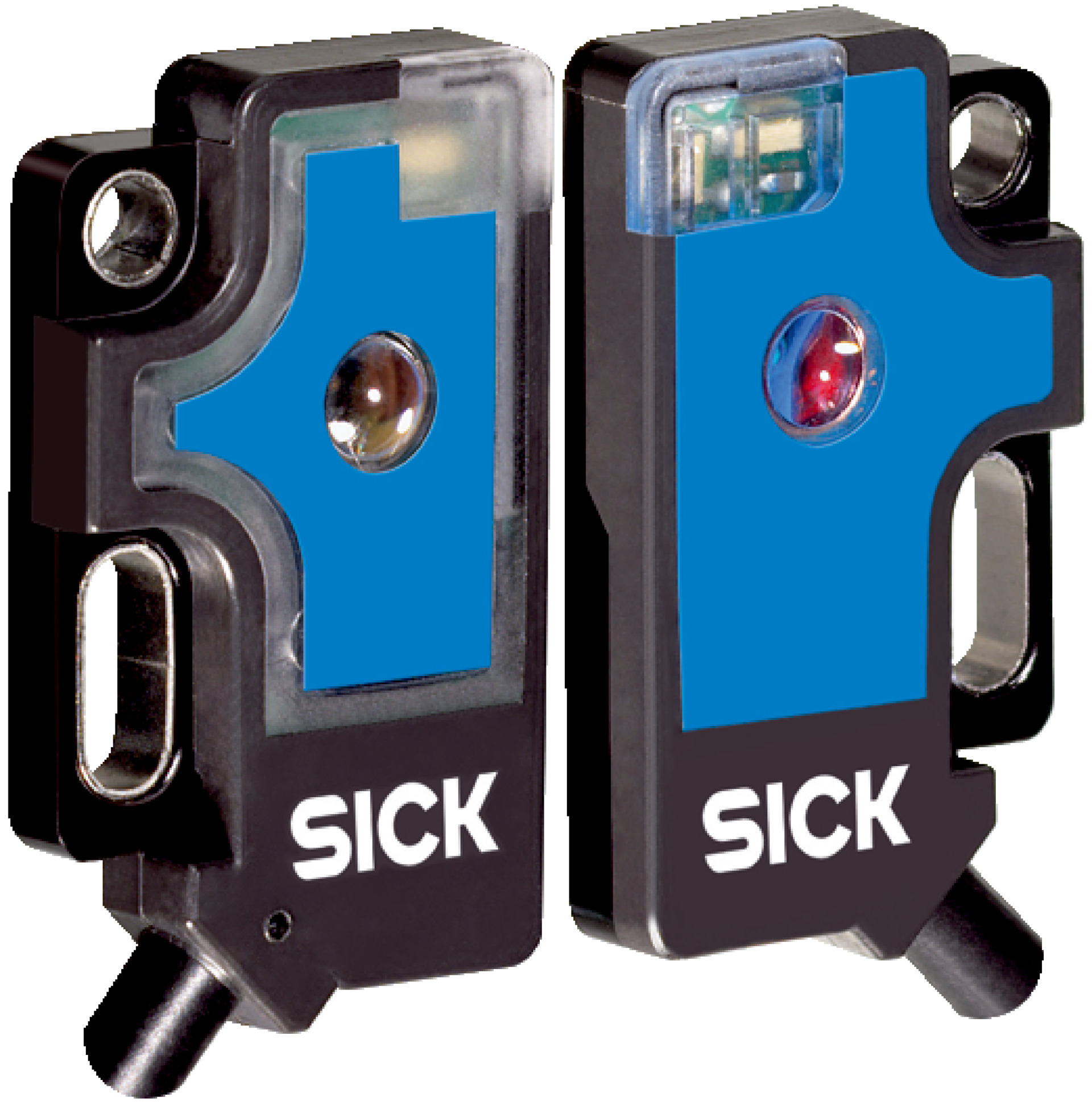

Through-Beam Photoelectric Sensor WS/WE2F-E110 | IP67 Rated | Fast Response Time | NPN Output | by SICK
The WS/WE2F-E110 Through-beam Photoelectric Sensor is designed for precise object detection in industrial automation. With a sensing range of up to 0.4 m and a fast response time of ≤ 0.5 ms, it ensures reliable performance in manufacturing and safety applications. Its durable IP67-rated plastic housing and NPN dark switching output make it ideal for harsh environments, providing reverse polarity and short-circuit protection for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 0.4 m
- Light source: LED, visible red light at 660 nm wavelength
- Light spot size: Ø 10 mm at 100 mm distance
- Supply voltage: 12 V DC to 24 V DC with ripple < 5 V pp
- Switching output: NPN, dark switching mode
- Output current max: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 3-wire cable, 2 m length, PVC material
- Circuit protection: Reverse polarity and short-circuit protection
- Housing and optics material: Plastic, PC
- Enclosure rating: IP67
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –40 °C to +75 °C
- Dimensions (H x L x W): 20mm x 3.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 0.4 m
- Rectangular plastic housing with IP67 rating
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- NPN dark switching output with reverse polarity and short-circuit protection
- Durable plastic PC housing and optics
- Operating temperature range from –20 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper wiring and alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WS/WE2F-E110 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
