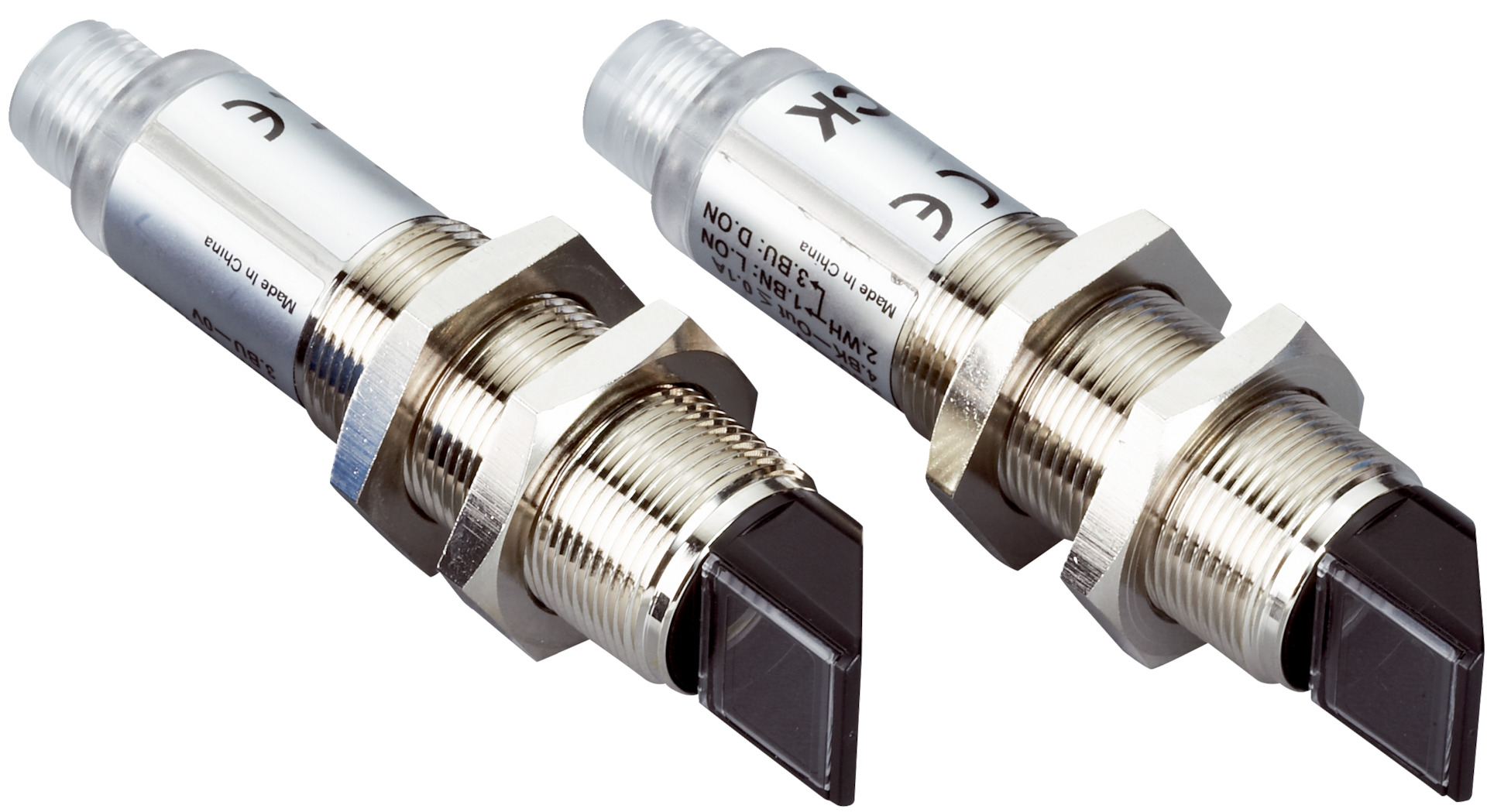

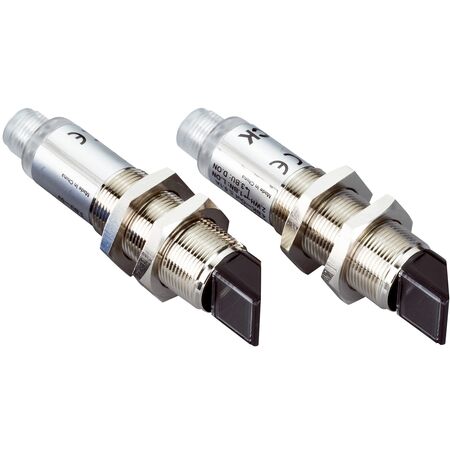

Through-beam Photoelectric Sensor VSE180-2P42434 | IP67 Rated | Fast Response Time | PNP Output | by SICK
The Through-beam Photoelectric Sensor VSE180-2P42434 is designed for industrial automation, featuring a sensing range of up to 19 meters and a fast response time of ≤ 0.5 ms. With its robust IP67 rated housing, this sensor ensures reliable performance in harsh environments, making it ideal for safety and monitoring applications in manufacturing and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: ≤ 20 mA
- Power consumption receiver: ≤ 15 mA
- Switching output: PNP
- Switching mode: Light/dark switching
- Signal voltage PNP HIGH/LOW: Approx. VS – 1.8 V / 0 V
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: A, B, D
- Protection class: III
- Housing material: Metal, nickel-plated brass and PC
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Light source: LED, wavelength 645 nm
- Focus: Approx. 5°
- Light spot size at 20 m: Ø 1100 mm
- Dimensions (H x L x W): 18mm x 84mm x 18mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 19 meters
- Radial optical axis with approx. 5° focus and angle of dispersion
- Robust metal housing with nickel-plated brass and PC
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 0.5 ms and switching frequency of 1000 Hz
- PNP switching output with light/dark switching mode
- Connection via male M12, 4-pin connector
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper alignment and electrical connections.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤ 20 mA sender and ≤ 15 mA receiver
- Long service life with MTTFD of 1,296 years reducing waste
- Robust IP67 housing extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VSE180-2P42434 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
