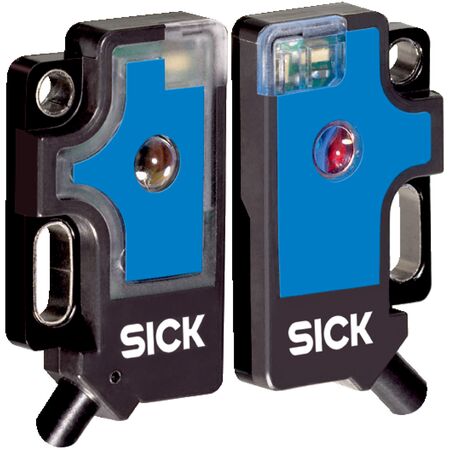

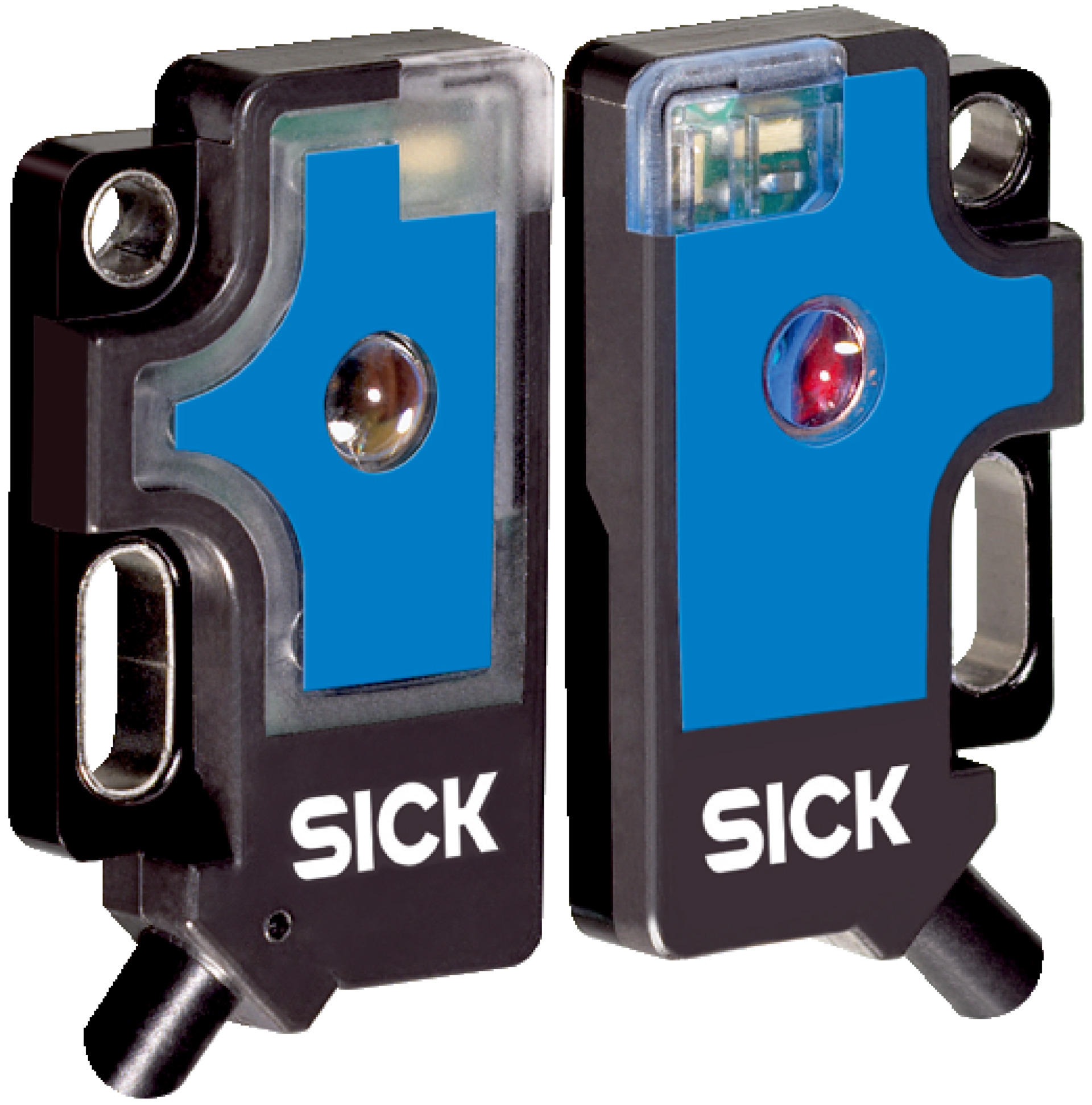

Through-Beam Photoelectric Sensor WS/WE2F-P110 | IP67 Rated | Fast Response Time | PNP Output | by SICK
The WS/WE2F-P110 Through-beam Photoelectric Sensor is designed for precise object detection in industrial automation. With a sensing range of up to 0.4 m and a fast response time of ≤ 0.5 ms, it ensures reliable performance in manufacturing and safety applications. Its durable IP67-rated housing and PNP output make it ideal for various environments, providing robust protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 0.5 m
- Type of light: Visible red light (660 nm wavelength)
- Light source: LED
- Light spot size: Ø 10 mm at 100 mm distance
- Supply voltage: 12 V DC to 24 V DC
- Ripple: < 5 V pp
- Switching output: PNP
- Switching mode: Light switching
- Signal voltage PNP HIGH/LOW: Approx. VS – 1.8 V / 0 V
- Output current max.: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 3-wire cable, 2 m length, PVC material
- Cable diameter: Ø 2.4 mm
- Circuit protection: Reverse polarity and short-circuit protection
- Housing material: Plastic, PC
- Optics material: Plastic, PC
- Enclosure rating: IP67
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –40 °C to +75 °C
- Dimensions (H x L x W): 20mm x 3.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 0.4 m
- Rectangular plastic housing with IP67 rating
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- PNP switching output with reverse polarity and short-circuit protection
- Durable plastic PC housing and optics
- Operating temperature range from –20 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems requiring precise sensing
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WS/WE2F-P110 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
