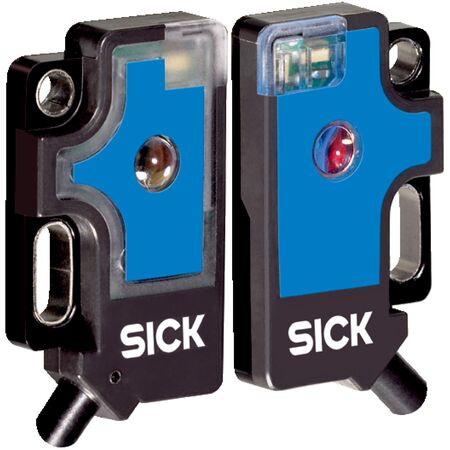

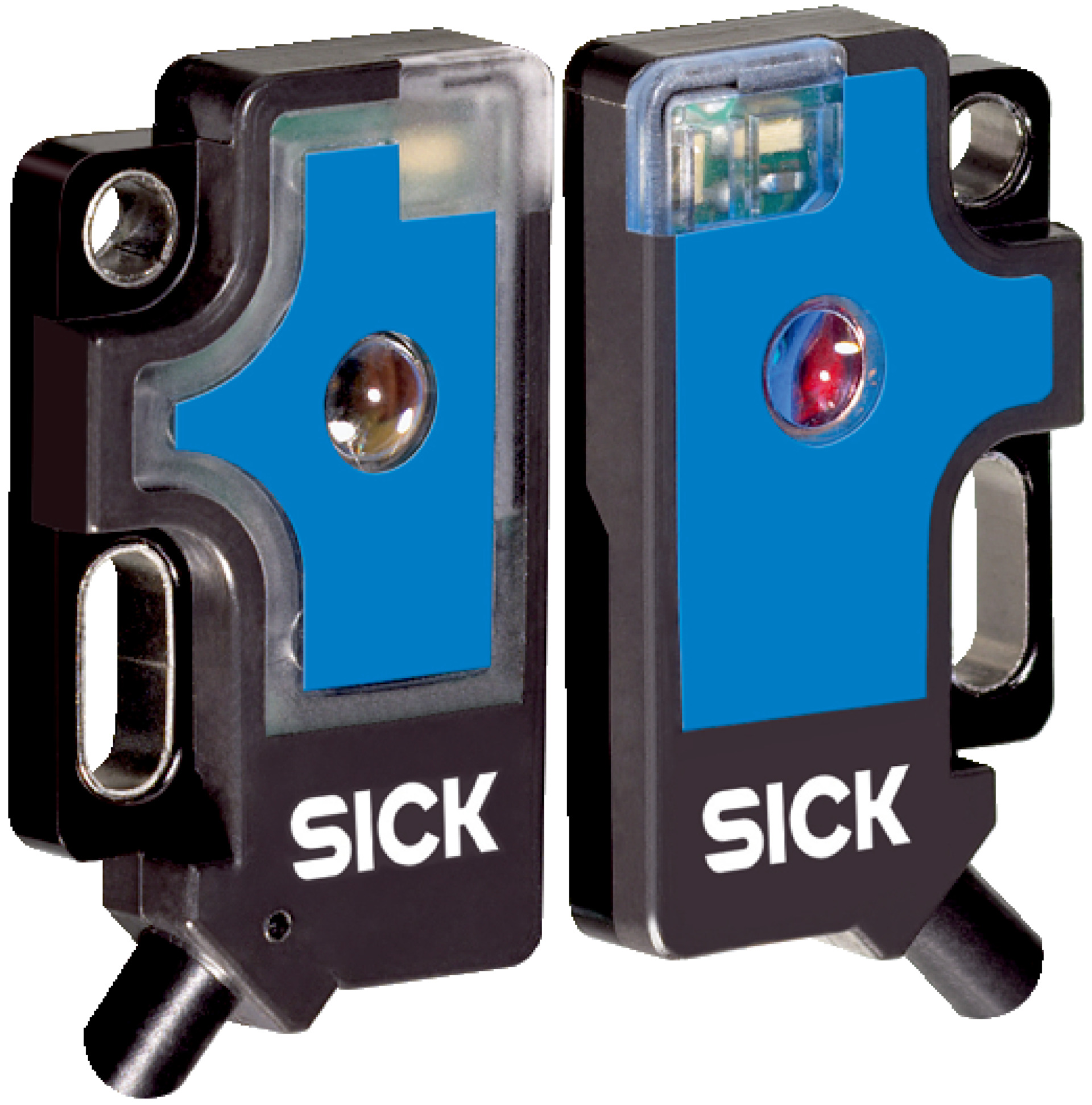

Through-Beam Photoelectric Sensor WS/WE2F-P120S05 | IP67 Rated | Fast Response Time | by SICK
The Through-Beam Photoelectric Sensor WS/WE2F-P120S05 is designed for industrial automation, featuring a sensing range of up to 0.5 meters and a fast response time of ≤ 0.5 ms. With an IP67 rating for dust and water protection, this sensor is perfect for manufacturing process control and safety monitoring in production lines, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 0.4 m (max 0.5 m)
- Light source: LED, visible red light at 660 nm wavelength
- Light spot size: Ø 10 mm at 100 mm distance
- Supply voltage: 12 V DC to 24 V DC with ripple < 5 V pp
- Switching output: PNP, light switching mode
- Output current max: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with M8 male connector, 4-pin, 300 mm length
- Cable material: Plastic, PVC with Ø 2.4 mm diameter
- Circuit protection: Reverse polarity, short-circuit protection
- Housing and optics material: Plastic, PC
- Enclosure rating: IP67
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –40 °C to +75 °C
- Dimensions (H x L x W): 20mm x 3.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 0.5 meters
- Fast response time of ≤ 0.5 ms
- High switching frequency of 1,000 Hz
- IP67 rated for dust and water protection
- Reverse polarity and short-circuit protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable plastic housing reduces material waste and extends product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WS/WE2F-P120S05 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
