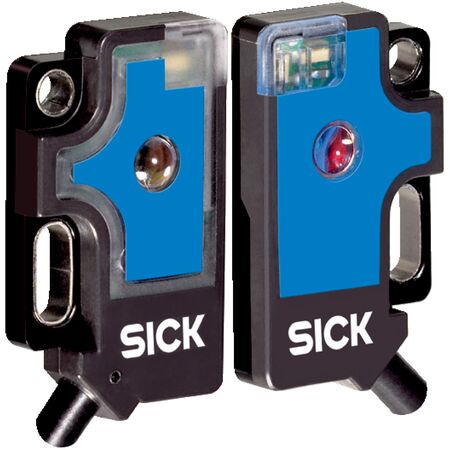

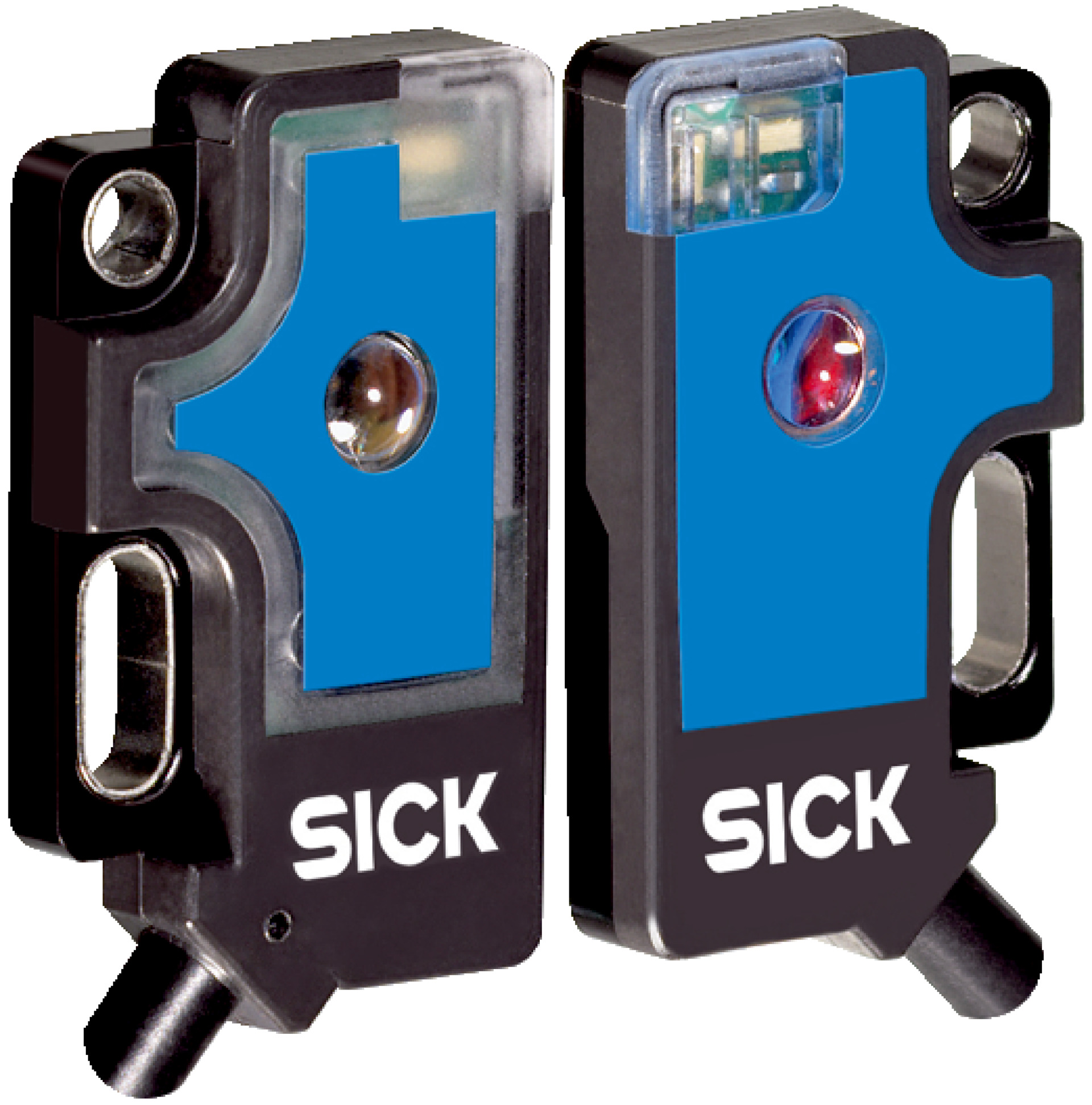

Through-Beam Photoelectric Sensor WS/WE2F-F210 | IP67 Rated | Fast Response Time | by SICK
The WS/WE2F-F210 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 0.4 meters and a fast response time of ≤ 0.5 ms. With its IP67 rating and durable plastic housing, this sensor ensures reliable performance in safety and monitoring applications, making it ideal for manufacturing processes and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 0.5 m
- Type of light: Visible red light (660 nm wavelength)
- Light source: LED
- Light spot size: Ø 10 mm at 100 mm distance
- Supply voltage: 12 V DC to 24 V DC
- Ripple: < 5 V pp
- Switching output: PNP
- Switching mode: Dark switching
- Output current max: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Cable with M8 connector, 3-pin, 200 mm
- Cable material: Plastic, PVC
- Cable diameter: Ø 2.4 mm
- Circuit protection: Reverse polarity and short-circuit protection
- Housing material: Plastic, PC
- Optics material: Plastic, PC
- Enclosure rating: IP67
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –40 °C to +75 °C
- Dimensions (H x L x W): 20mm x 3.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 0.4 meters
- Rectangular plastic housing with IP67 rating
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Reverse polarity and short-circuit protection included
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable plastic housing reduces material waste and extends product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WS/WE2F-F210 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
