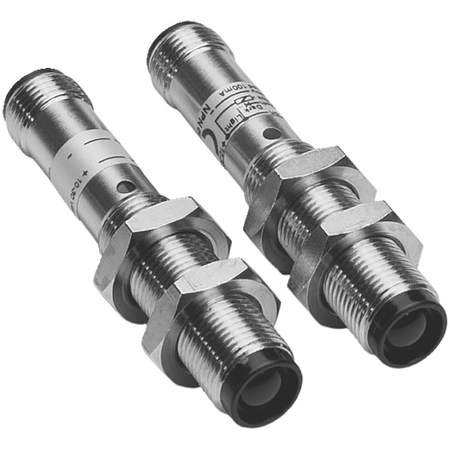

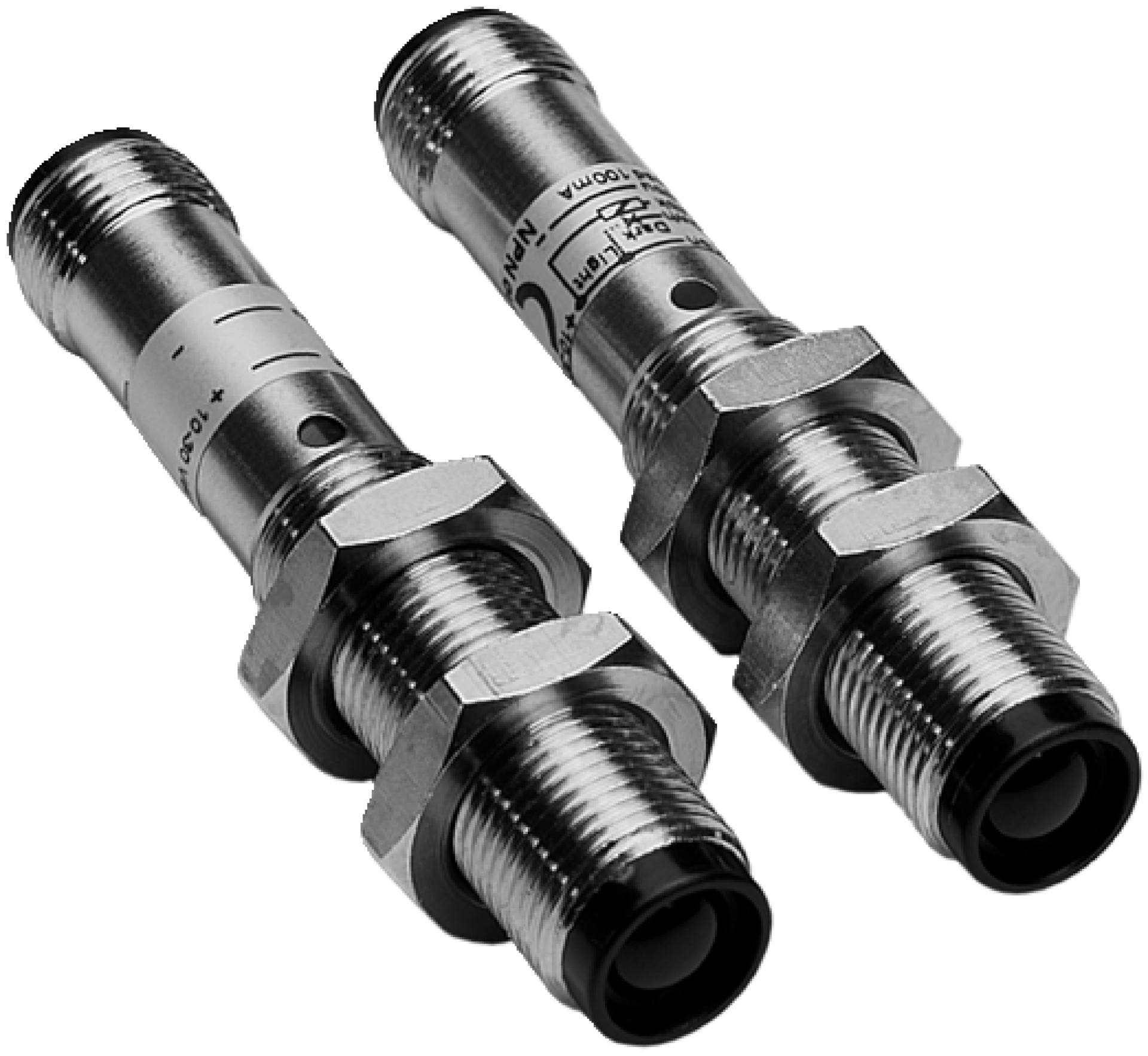

Through-Beam Photoelectric Sensor | IP67 Rated | Infrared LED | Fast Response Time | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, featuring an IP67 rated enclosure for dust and water protection. With a fast response time of ≤ 2 ms and a sensing range of up to 5 meters, it's perfect for safety and security systems, material handling, and presence detection in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Through Beam Sensor, Photoelectric Sensor, Infrared Sensor, Industrial Object Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 2 ms
- Switching frequency: 250 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +70 °C
- Housing material: Metal, nickel-plated brass/PA
- Optics material: Plastic, PMMA
- Connection type: Male connector M12, 4-pin
- Light spot size at 4 m: Ø 100 mm
- Angle of dispersion: Approx. 1.4°
- Wave length: 880 nm
- Dimensions (H x L x W): 12mm x 66.3mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Infrared LED light source with 880 nm wavelength
- Sensing range up to 5 meters
- Cylindrical metal housing with nickel-plated brass and PA
- IP67 rated enclosure for dust and water protection
- Selectable light/dark switching mode via control cable
- Fast response time of ≤ 2 ms and switching frequency of 250 Hz
- Male M12, 4-pin connector for easy installation
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Safety and security systems
- Material handling and packaging lines
- Presence and absence detection in manufacturing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable metal housing extends product life reducing waste
- RoHS compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VS/VE12-2P430 Through-Beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
