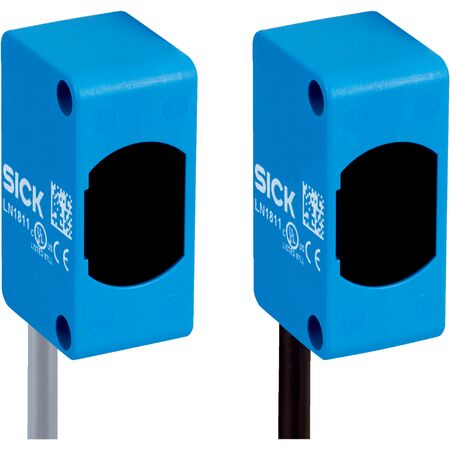

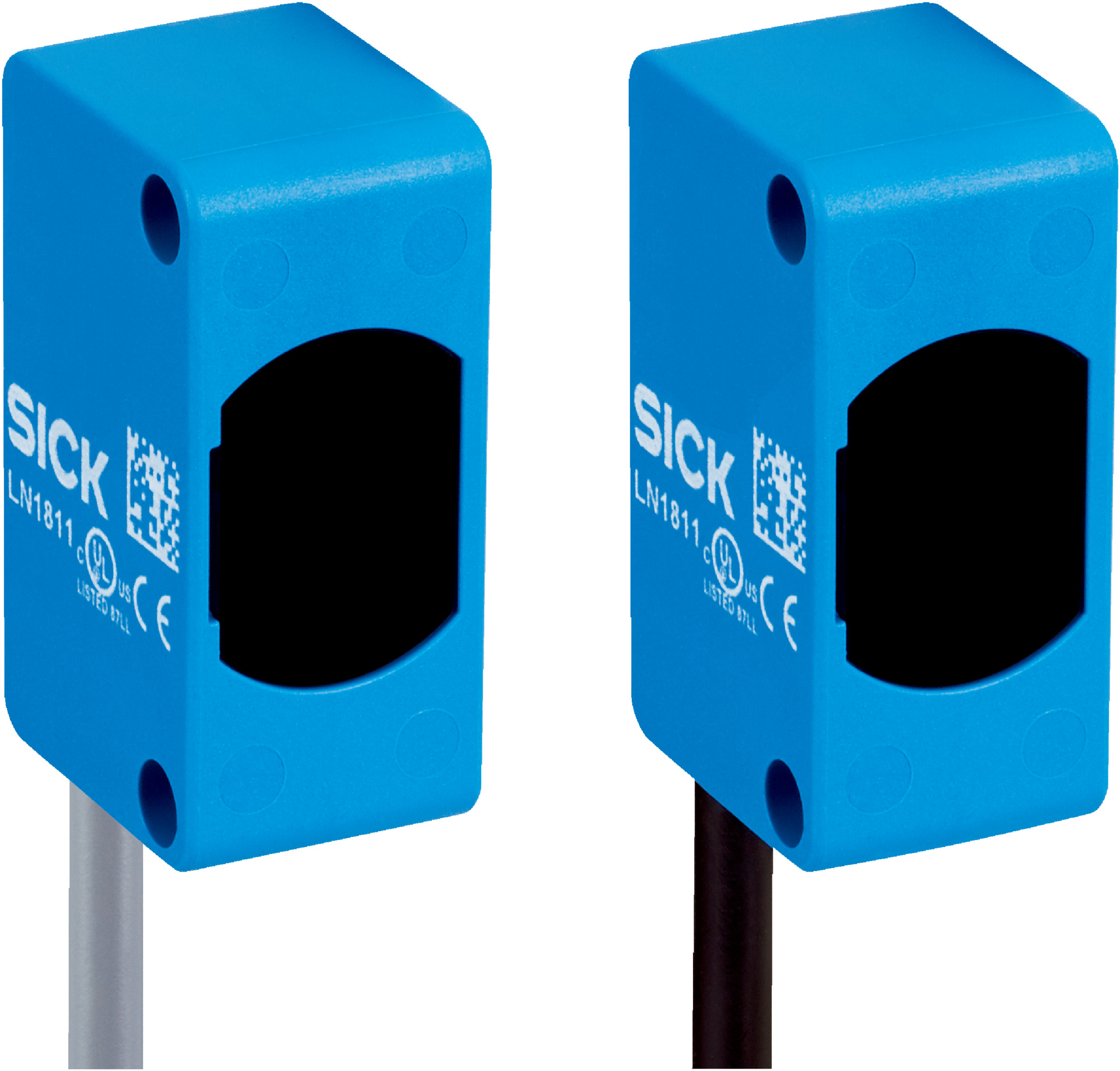

Through-beam Photoelectric Sensor ZSE18-7JZ1G3 | IP67 Rated | Infrared LED | 15m Sensing Range | by SICK
The ZSE18-7JZ1G3 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 15 meters and an IP67 rated enclosure for dust and water protection. With a high switching frequency of 1,000 kHz and a robust infrared LED light source, this sensor ensures reliable object detection and safety monitoring in manufacturing lines and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: NPN, dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Light source: Infrared LED, 850 nm wavelength
- Light spot size: Ø 20 mm at 500 mm distance
- Dimensions (H x L x W): 31mm x 22.4mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Hybrid housing design with blue color
- Sensing range up to 15 meters
- Infrared LED light source with 850 nm wavelength
- Dark switching NPN output
- High switching frequency of 1,000 kHz
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with ≤ 15 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZSE18-7JZ1G3 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
