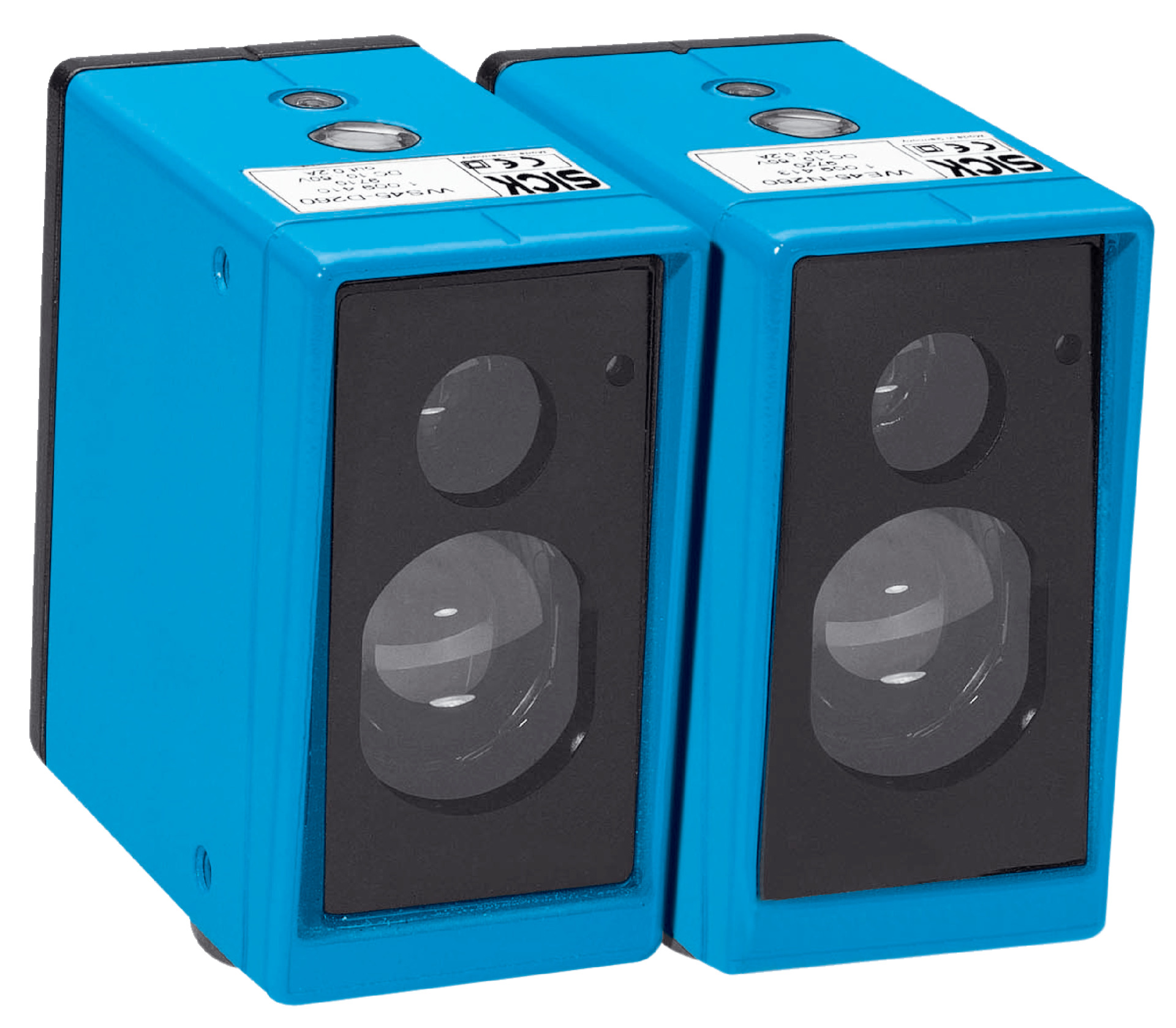

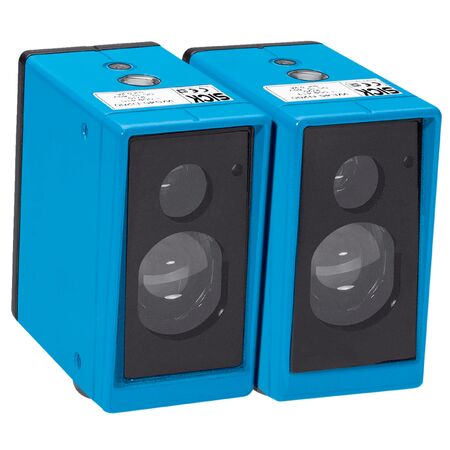

Through-Beam Photoelectric Sensor WS/WE45-R260 | IP67 Rated | Long-Range Sensing up to 300m | by SICK
The WS/WE45-R260 Through-beam Photoelectric Sensor is designed for industrial automation, featuring an infrared LED light source and a robust metal housing with an IP67 rating. With a sensing range of up to 300 meters and an adjustable time delay, it's perfect for safety and monitoring in manufacturing processes, ensuring reliable object detection even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WS/WE45-R260 | IP67 Rated | Long-Range Sensing up to 300m | by SICK
Brand: SICK
SKU: 1010995
Alternatively Known As: Through-beam photoelectric sensor, Infrared photoelectric sensor, Long-range sensor WS/WE45-R260
Technical Specifications
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Power consumption sender: ≤3 VA
- Power consumption receiver: ≤3 VA
- Switching output: Electrically isolated relay with change-over contacts
- Switching current: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤10 ms
- Switching frequency: 10 Hz
- Time delay: Adjustable 0.5 s to 12 s
- Connection type: Terminal connection with PG13.5, 6-pin
- Protection class: I
- Enclosure rating: IP67
- Ambient operating temperature: -25°C to +55°C
- Housing material: Metal
- Light source: Infrared LED
- Focus angle: Approx. 0.9°
- Light spot size at 300 m: Ø 4.5 m
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 1.6 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Rectangular metal housing with IP67 enclosure rating
- Sensing range up to 300 meters with a focus of approximately 0.9°
- Selectable light/dark switching mode with adjustable time delay
- Electrically isolated relay output with change-over contacts
- Robust design suitable for harsh industrial environments
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Long-range sensing applications up to 300 meters
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with ≤3 VA for sender and receiver reduces energy usage
- Durable metal housing extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WS/WE45-R260 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and long-range sensing applications.
