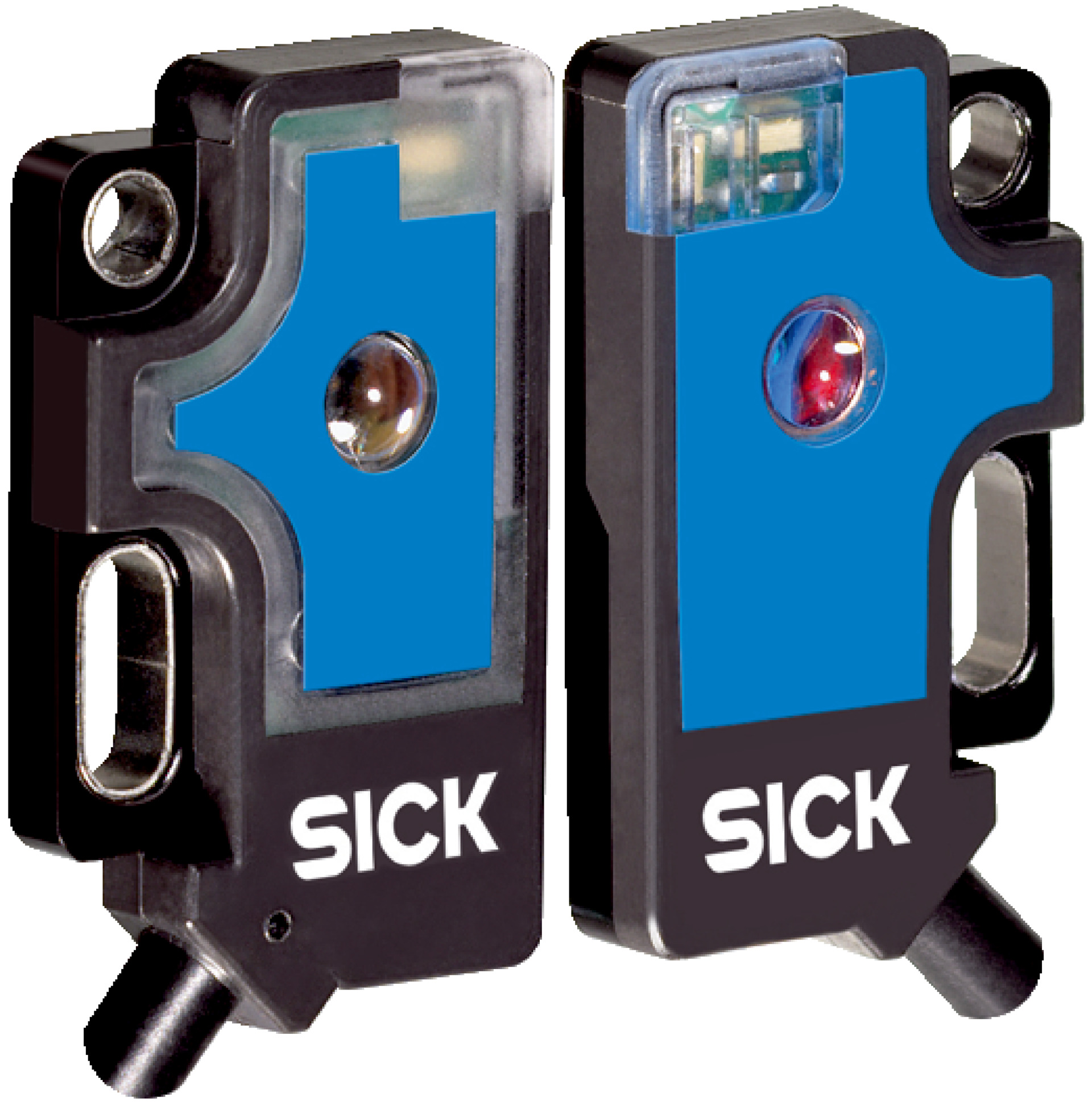

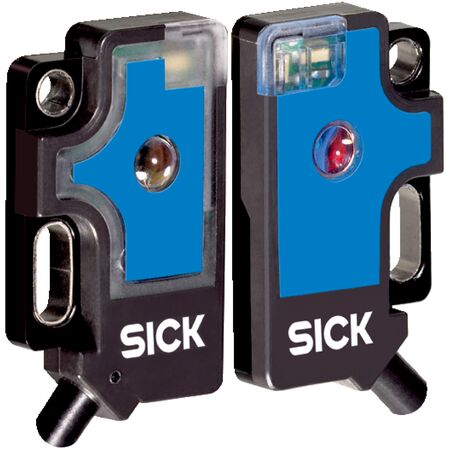

Through-Beam Photoelectric Sensor WS/WE2F-E010 S04 | IP67 Rated | NPN Output | 0.4m Sensing Range | by SICK
The WS/WE2F-E010 S04 Through-beam Photoelectric Sensor is designed for precise object detection in industrial automation. With a sensing range of up to 0.4 m and a high switching frequency of 1,000 Hz, it ensures reliable performance. Its durable IP67 rated housing and reverse polarity protection make it ideal for manufacturing process control and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 0.4 m
- Type of light: Visible red light, wavelength 660 nm
- Light source: LED
- Light spot size: Ø 10 mm at 100 mm distance
- Supply voltage: 12 V DC to 24 V DC
- Ripple: < 5 V pp
- Switching output: NPN, dark switching
- Output current max: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Cable with MOLEX connector, 300 mm
- Cable material: Plastic, PVC
- Cable diameter: Ø 2.4 mm
- Circuit protection: Reverse polarity, short-circuit protection
- Housing material: Plastic, PC
- Optics material: Plastic, PC
- Enclosure rating: IP67
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –40 °C to +75 °C
- Dimensions (H x L x W): 20mm x 3.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 0.4 m
- Rectangular plastic housing with IP67 rating
- NPN switching output with dark switching mode
- High switching frequency of 1,000 Hz
- Reverse polarity and short-circuit protection
- Cable with MOLEX connector, 300 mm length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WS/WE2F-E010 S04 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
