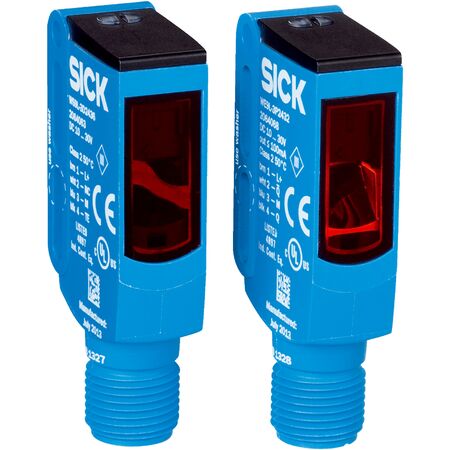

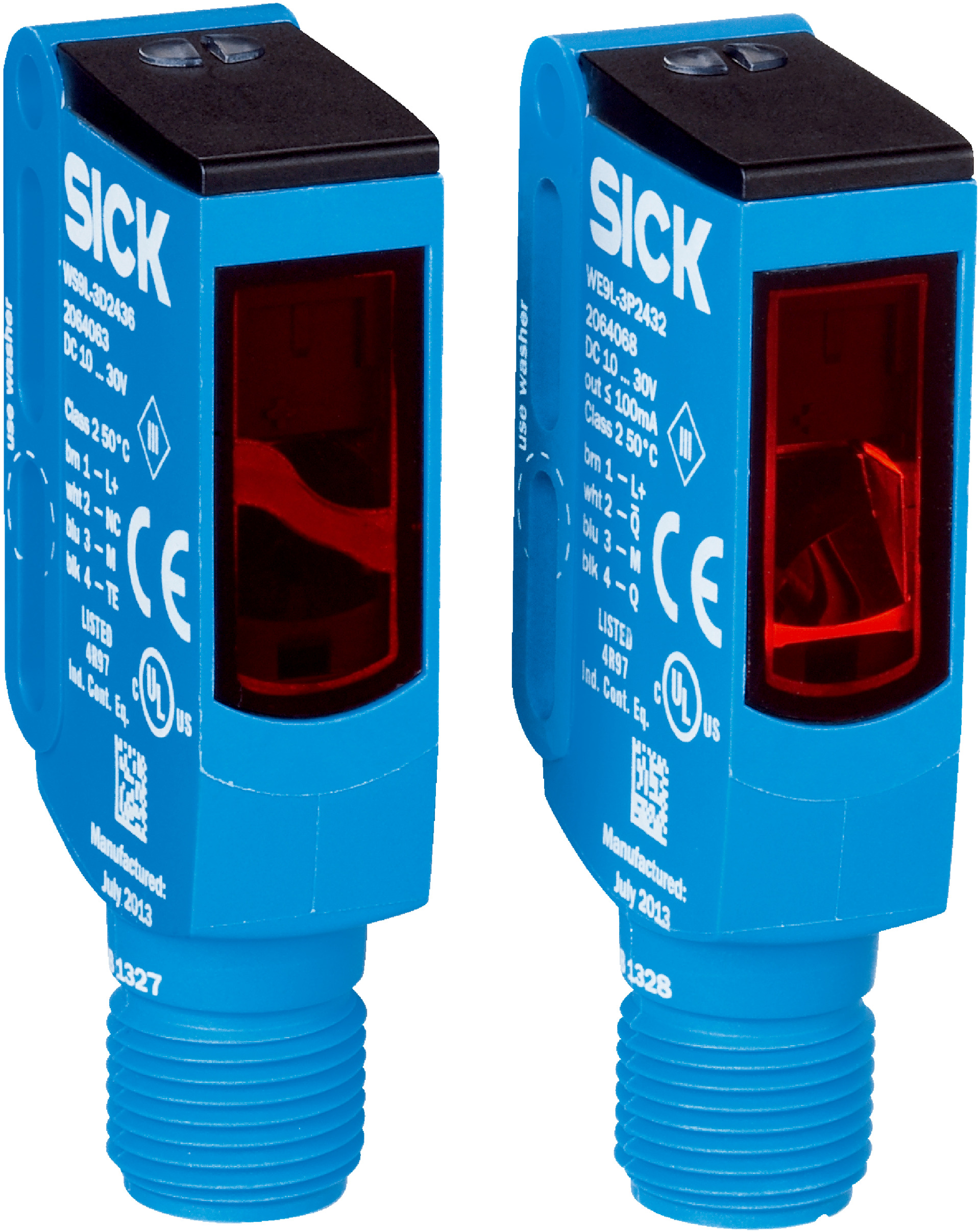

Through-Beam Photoelectric Sensor | Laser Class 1 | 50m Sensing Range | IP66/IP67/IP69K Rated | by SICK
The Through-Beam Photoelectric Sensor is designed for precise object detection in industrial automation, featuring a sensing range of up to 50 m and a fast response time of ≤ 0.5 ms. With a durable IP66/IP67/IP69K rated housing and IO-Link communication, it’s perfect for harsh environments and small object detection applications, ensuring reliable performance and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 50 m (max 60 m)
- Light source: Laser, 650 nm wavelength
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M12 male connector, 4-pin, 120 mm
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red laser light
- Sensing range up to 50 m, max 60 m
- Rectangular housing design with M3 mounting hole
- Laser class 1 compliant with IEC 60825-1 standards
- IO-Link communication interface V1.1 with 16-bit process data
- Fast response time ≤ 0.5 ms and switching frequency up to 1000 Hz
- High protection rating IP66, IP67, IP69K suitable for harsh environments
- Plastic VISTAL® housing and PMMA optics material
- Multiple output functions including complementary PNP switching output
- Extended ambient operating temperature from -30 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure compliance with safety standards and optimal sensor performance.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing processes
- Use in environments requiring precise sensing with laser technology
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP69K rated housing minimizes environmental damage and waste
- Long service life reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WSE9LC-3P3436A00 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
