Through-beam Photoelectric Sensor M18 | 20m Sensing Range | IP67 Rated | Fast Response Time | by SICK
The Through-beam Photoelectric Sensor M18 is designed for precise object detection in industrial automation, featuring a sensing range of up to 20 meters and a visible red LED light source. With a high switching frequency of 1,000 kHz and an IP67 rated enclosure, this sensor is perfect for manufacturing process control and safety systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 20 m
- Light source: Visible red LED, wavelength 625 nm
- Housing design: Hybrid with M18 thread diameter
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN, light and dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: Cable with M12 male connector, 4-pin, 150 mm
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Dimensions (H x L x W): 21mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red LED light source
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 1,000 kHz and fast response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems requiring precise sensing
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

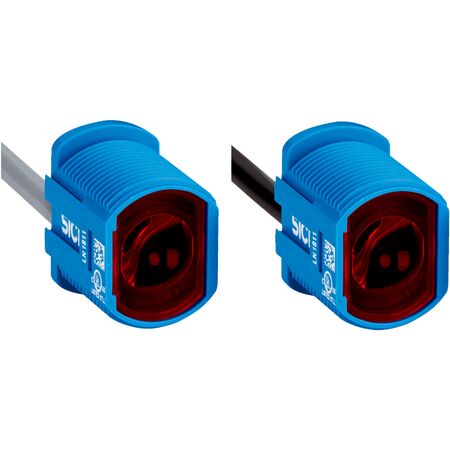

The SICK ZSE18-9AB4B8 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
