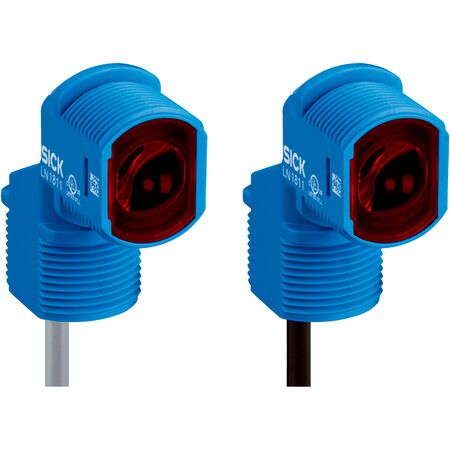

Through-beam Photoelectric Sensor M18 | 20m Sensing Range | IP67 Rated | by SICK
The Through-beam Photoelectric Sensor M18 is designed for reliable object detection in industrial automation, featuring a sensing range of up to 20 meters and a visible red LED light source with a 625 nm wavelength. With a high switching frequency of 1,000 kHz and an IP67 rated enclosure, this sensor is perfect for manufacturing process control and material handling applications, ensuring precise and efficient operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 20 m
- Light source: Visible red LED, wavelength 625 nm
- Light spot size: Ø 125 mm at 1000 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN, light and dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 43mm x 33mm x 14mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle for reliable detection
- Visible red LED light source with 625 nm wavelength
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter for flexible mounting
- Push-pull PNP/NPN switching outputs with light and dark switching modes
- High switching frequency of 1,000 kHz and fast response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and security systems requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product lifespan
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZSE18-4AB1G8 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring precise object detection.
