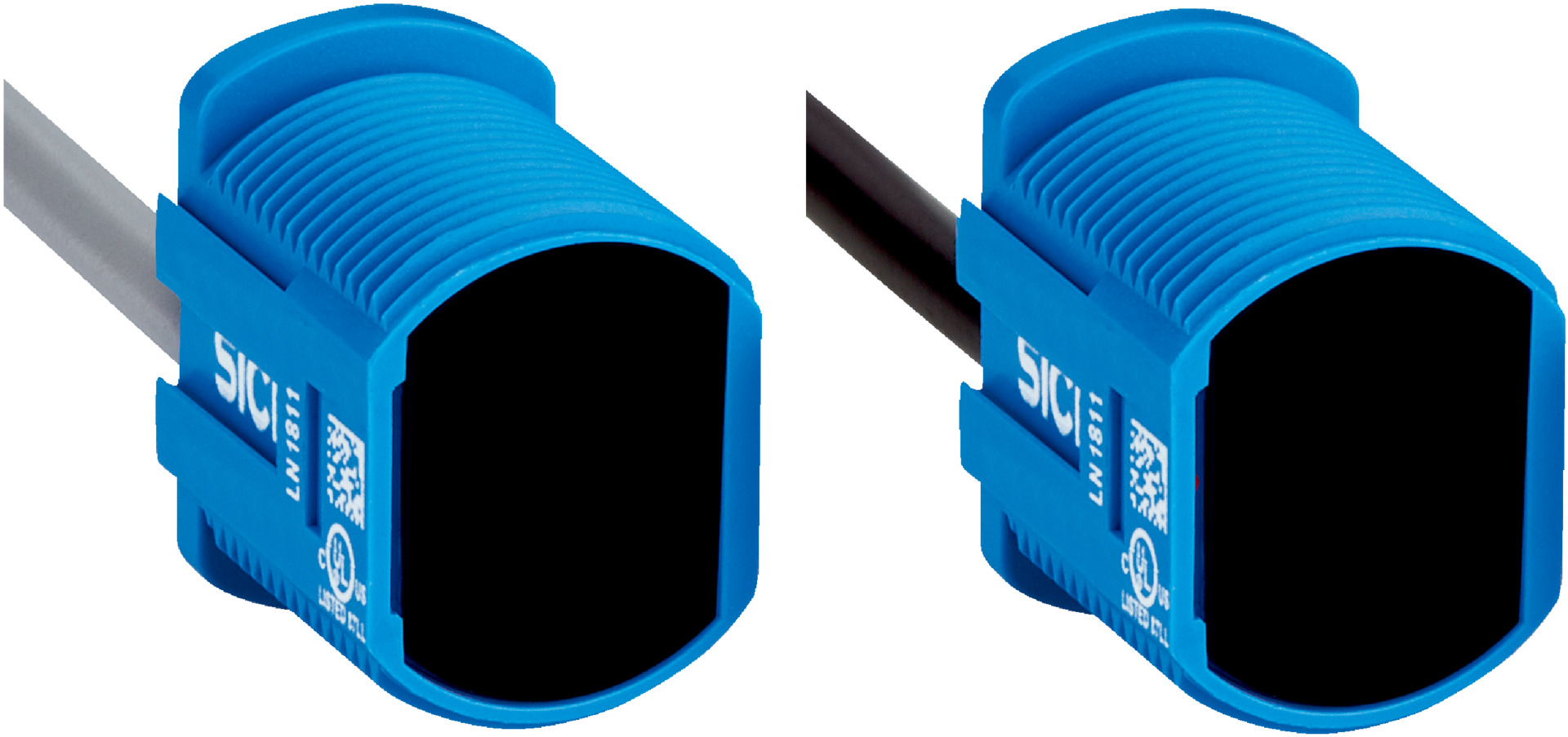

Through-beam Photoelectric Sensor M18 | IP67 Rated | 15m Sensing Range | 1000 kHz Switching Frequency | by SICK
The Through-beam Photoelectric Sensor M18 is designed for industrial automation, offering a sensing range of up to 15 meters and a high switching frequency of 1,000 kHz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection, manufacturing process control, and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: Cable with male M8, 4-pin connector, 150 mm length
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Light wavelength: 850 nm
- Light spot size: Ø 20 mm at 500 mm distance
- Dimensions (H x L x W): 21mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Hybrid housing design with M18 thread diameter
- Sensing range up to 15 meters with infrared LED light source
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 1,000 kHz and fast response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product lifespan
- RoHS compliant, minimizing hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

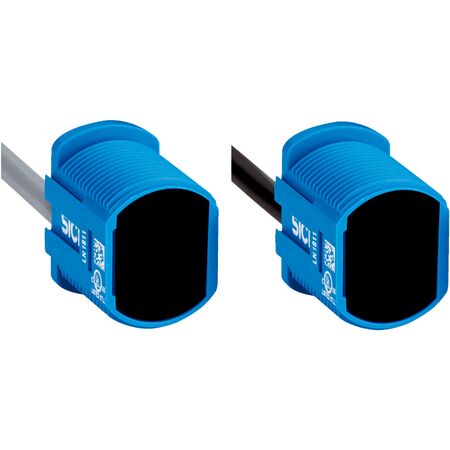

The SICK ZSE18-9AB5B3 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
