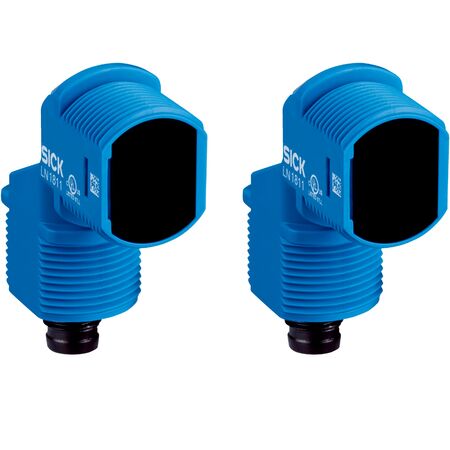

Through-beam Photoelectric Sensor M18 | IP67 Rated | 15m Sensing Range | 1000 kHz Switching Frequency | by SICK
The Through-beam Photoelectric Sensor M18 is designed for precise object detection in industrial automation. With a robust IP67-rated housing and a sensing range of up to 15 meters, it features a high switching frequency of 1,000 kHz and a fast response time of ≤ 500 µs. Ideal for manufacturing process control and material handling, this sensor ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Light source wavelength: 850 nm infrared LED
- Light spot size: Ø 20 mm at 500 mm distance
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 41mm x 33mm x 14mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Hybrid housing design with M18 thread diameter
- Sensing range up to 15 meters with infrared LED light source
- Push-pull PNP/NPN switching outputs with light and dark switching modes
- High switching frequency of 1,000 kHz and fast response time ≤ 500 µs
- Robust plastic ABS housing with IP67 enclosure rating
- Wide ambient operating temperature range from -40°C to +55°C
- Male M8 4-pin connector for easy integration
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and security systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- RoHS compliant, minimizing hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZSE18-4AB3A3 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
