Through-beam Photoelectric Sensor M18 | IP67 Rated | 15m Sensing Range | 1000 kHz Switching Frequency | by SICK
The Through-beam Photoelectric Sensor M18 is designed for precise object detection in industrial automation. With a robust IP67-rated housing, it operates efficiently in temperatures from -40 °C to +55 °C. Featuring a sensing range of up to 15 meters and a high switching frequency of 1,000 kHz, this sensor is perfect for manufacturing process control and safety systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Output type: Push-pull PNP/NPN
- Output current max: 100 mA
- Switching frequency: 1,000 kHz
- Response time: ≤ 500 µs
- Light wavelength: 850 nm infrared
- Light spot size: Ø 20 mm at 500 mm distance
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Cable length: 2 m, 4-wire PVC
- Dimensions (H x L x W): 21mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Hybrid housing design with M18 thread diameter
- Sensing range up to 15 meters with infrared LED light source
- Push-pull PNP/NPN switching outputs with light and dark switching modes
- High switching frequency of 1,000 kHz and fast response time ≤ 500 µs
- Robust plastic ABS housing with IP67 enclosure rating
- Wide ambient operating temperature range from -40 °C to +55 °C
- Cable open end, 4-wire, 2 m length with PVC insulation
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

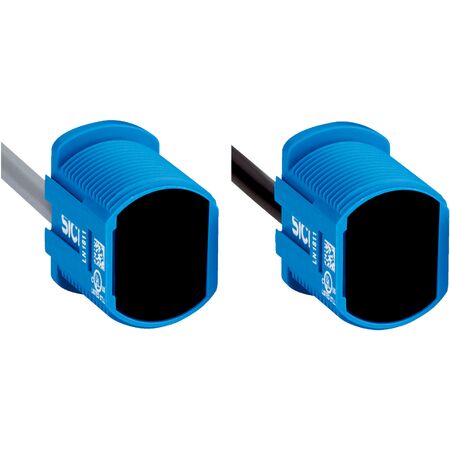

The SICK ZSE18-9AB1G3 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
