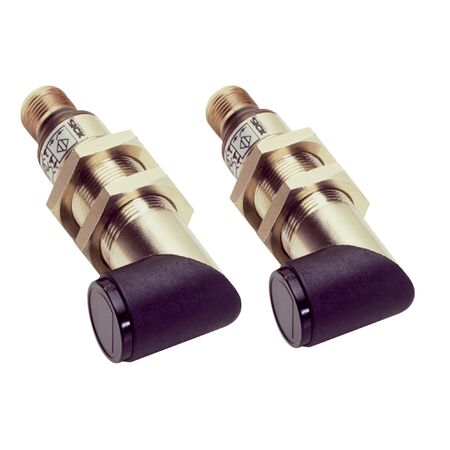

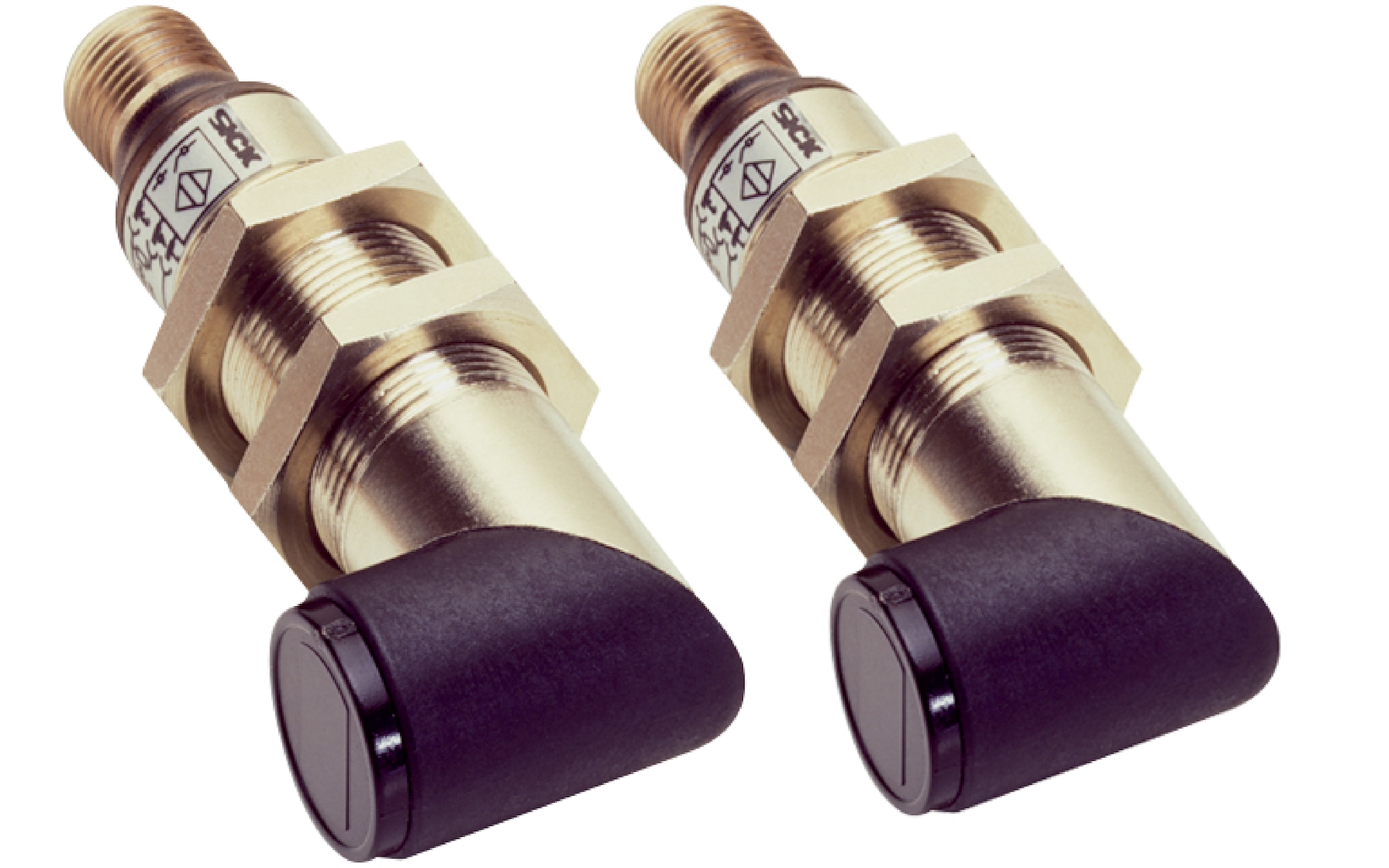

Through-beam Photoelectric Sensor M18 | IP67 Rated | Infrared LED | 14m Sensing Range | by SICK
The Through-beam Photoelectric Sensor M18 is designed for industrial automation, featuring a sensing range of up to 14 meters and an IP67 rated enclosure for dust and water protection. With a fast response time of ≤ 2 ms and selectable light/dark switching mode, it's perfect for safety and monitoring in manufacturing processes, ensuring reliable object detection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Sensor M18, Through-beam Sensor, Infrared Sensor VS/VE18, Industrial Object Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 2 ms
- Switching frequency: 250 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Ambient operating temperature: –25 °C to +70 °C
- Housing material: Metal, nickel-plated brass
- Optical axis: Radial
- Focus angle: Approx. 2.8°
- Light source: Infrared LED
- Light spot size at 14 m: Ø 700 mm
- Adjustment: Potentiometer, 270° sensitivity
- Dimensions (H x L x W): 18mm x 75mm x 18mm
- Weight: 0.24 kg
Key Features
- Through-beam photoelectric sensing principle
- Cylindrical metal housing with nickel-plated brass
- Sensing range up to 14 meters
- Infrared LED light source with approx. 2.8° focus and dispersion angle
- Selectable light/dark switching mode via control cable
- High switching frequency of 250 Hz and fast response time ≤ 2 ms
- IP67 rated enclosure for dust and water protection
- Wide operating temperature range from –25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper alignment and connection.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK VS/VE18-4P3440 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
