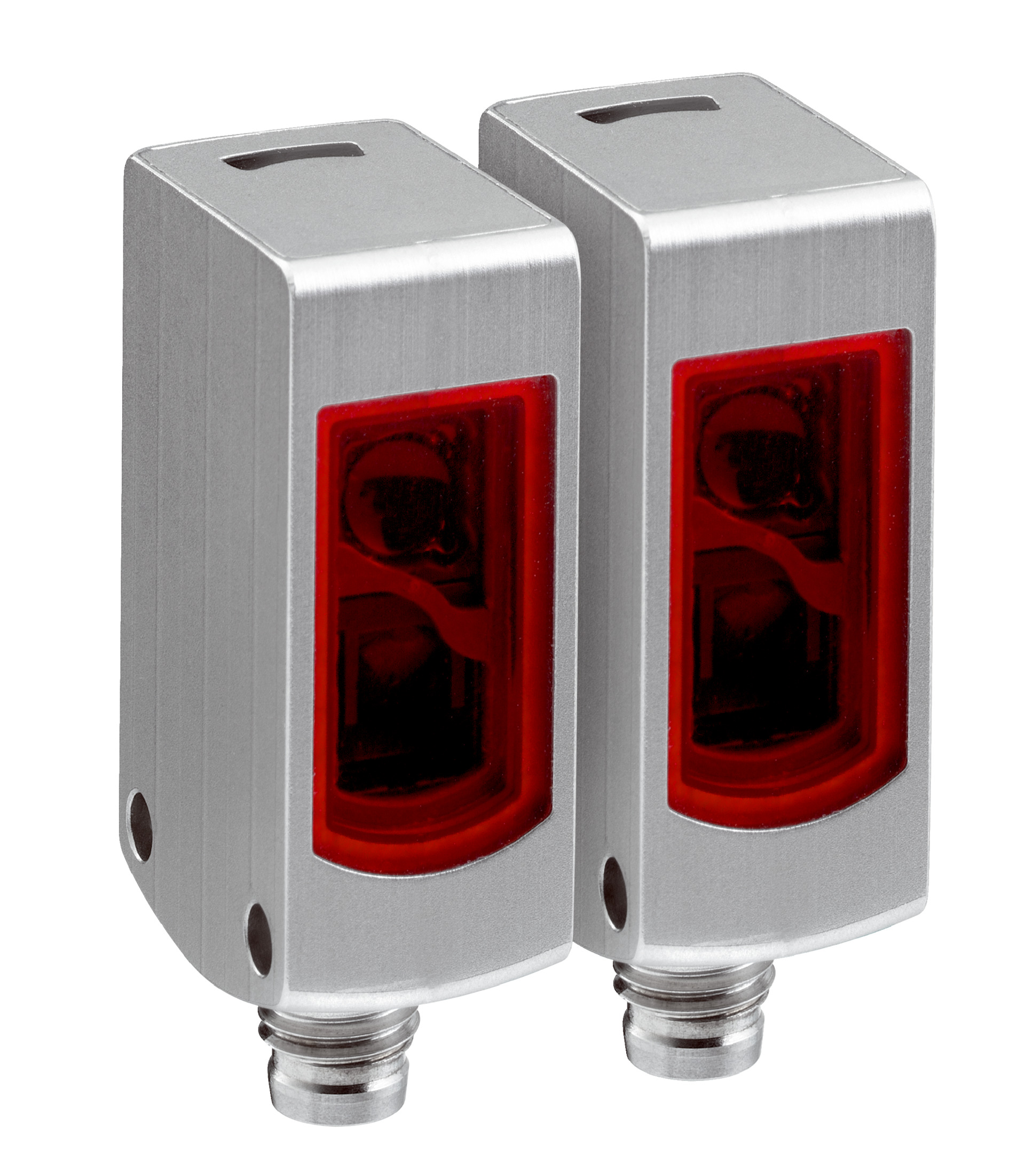

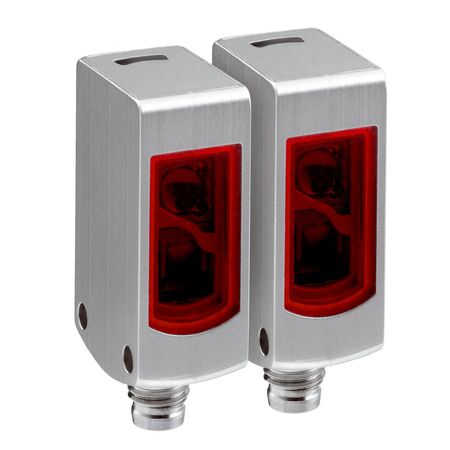

Through Beam Photoelectric Sensor | PinPoint LED | PNP Output | IP66 Rated | by SICK
The Through Beam Photoelectric Sensor with PinPoint LED is designed for precise object detection in industrial automation. With a sensing range of up to 4.5 meters and a robust stainless steel housing, it excels in hygienic and washdown environments. Featuring dark switching with PNP output and a high switching frequency of 1000 Hz, this sensor ensures reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through Beam Photoelectric Sensor | PinPoint LED | PNP Output | IP66 Rated | by SICK
Brand: SICK
SKU: 2058709
Alternatively Known As: Through beam sensor, photoelectric sensor stainless steel, PNP photoelectric switch, washdown sensor, PinPoint LED sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 5 m
- Sensing range: 0 m to 4.5 m
- Light source: PinPoint LED, visible red light, wavelength 650 nm
- Light spot size at 2 m: Ø 50 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Protection class: III
- Output type: PNP, dark switching
- Max output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Circuit protection: A, B, C
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen: Plastic PMMA
- Cable: Plastic PVC, 150 mm with M12 4-pin connector
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with PinPoint LED visible red light
- Sensing range up to 4.5 meters
- Dark switching with PNP output
- High switching frequency of 1000 Hz and response time under 0.5 ms
- Robust stainless steel V4A (316L) housing suitable for washdown environments
- Protection rating IP66, IP67, IP68, IP69K for harsh conditions
- Cable with M12 male connector, 4-pin, 150 mm length
- Certified with multiple international standards including cULus and ECOLAB
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WE4S-3F3430V Through Beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
