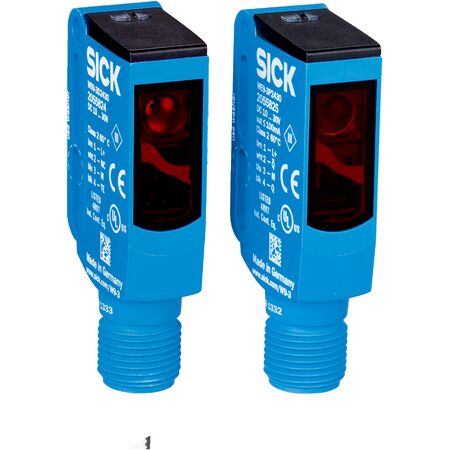

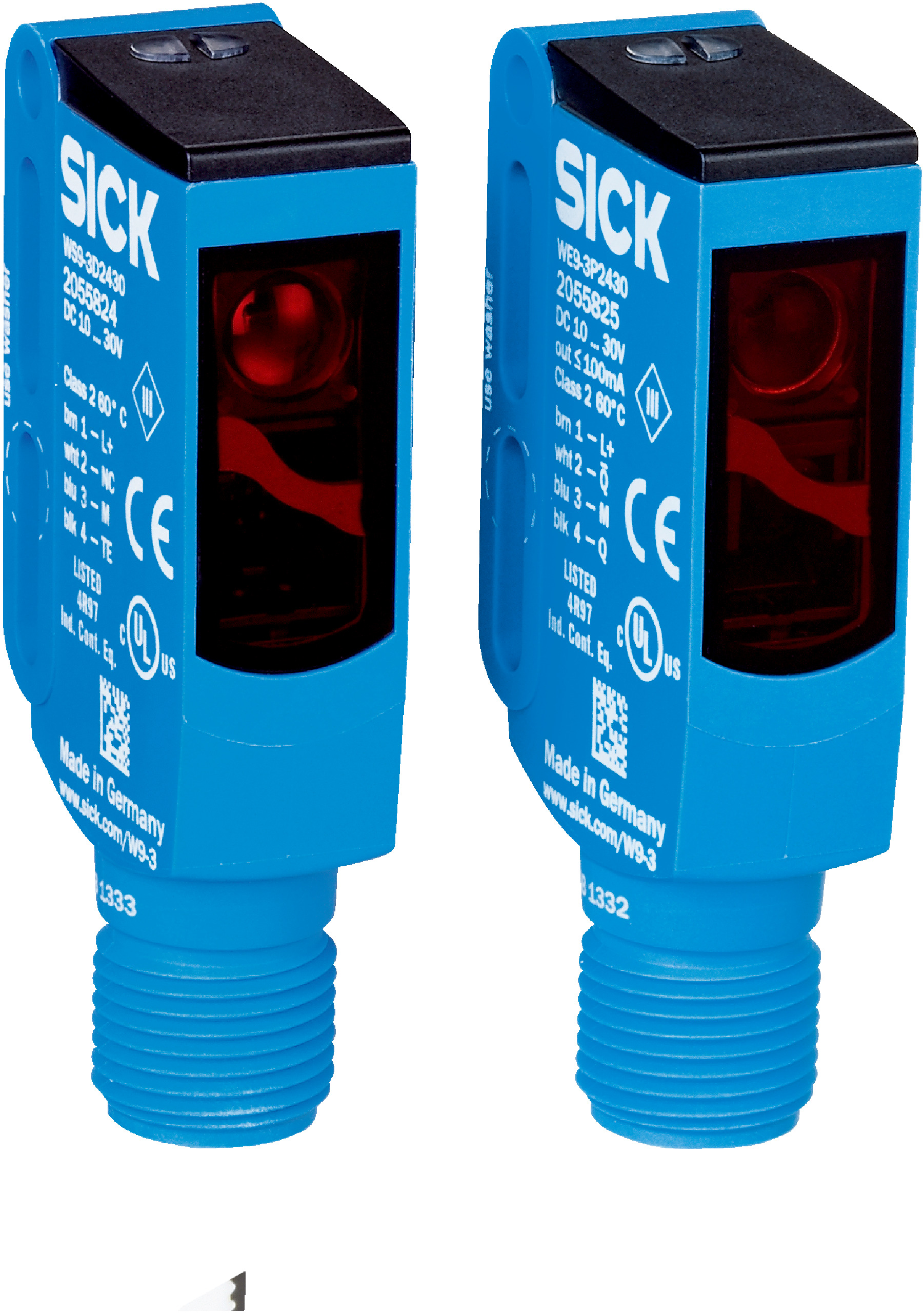

Through-Beam Photoelectric Sensor | Sensing Range up to 10m | IP66/IP67/IP69K Rated | by SICK
The Through-Beam Photoelectric Sensor WSE9C-3P2430A00 is designed for industrial automation, featuring a sensing range of up to 10 meters and a robust IP66/IP67/IP69K rated housing. With a high switching frequency of up to 1000 Hz and IO-Link adjustable settings, it’s perfect for manufacturing process control and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: up to 1000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Light source: PinPoint LED, 650 nm wavelength
- Light spot size: Ø 25 mm at 1 m distance
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 7 meters, max 10 meters
- Rectangular housing design with M3 mounting hole
- PinPoint LED light source with 650 nm wavelength
- IO-Link adjustable settings for flexible operation
- High switching frequency up to 1000 Hz
- Robust plastic VISTAL® housing with IP66, IP67, IP69K protection
- Operating temperature range from -40°C to +60°C
- Male M12 4-pin connector for easy integration
- Circuit protection and safety class III compliant
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing minimizes waste and extends product life
- Complies with China-RoHS and ECOLAB environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE9C-3P2430A00 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
