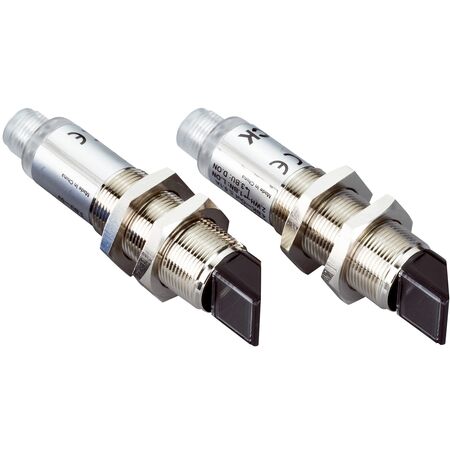

Through-beam Photoelectric Sensor | Sensing Range up to 25m | IP67 Rated | Fast Response Time ≤ 0.5ms | by SICK
The Through-beam Photoelectric Sensor VSE180-2N41134 is designed for industrial automation, offering a sensing range of up to 25 meters and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 20 mA (sender), ≤ 15 mA (receiver)
- Switching output: NPN, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Housing material: Metal (nickel-plated brass) and PC
- Optics material: Plastic (PMMA)
- Wave length: 645 nm
- Light spot size at 20 m: Ø 1100 mm
- Adjustment: Potentiometer 270° sensitivity
- Dimensions (H x L x W): 18mm x 77mm x 18mm
- Weight: 0.19 kg
Key Features
- Through-beam photoelectric sensor with visible red light LED
- Sensing range up to 19 meters, max 25 meters
- Radial optical axis with approx. 5° focus and angle of dispersion
- NPN switching output with light/dark switching mode
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Robust metal housing with nickel-plated brass and PC
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with ≤ 20 mA sender and ≤ 15 mA receiver
- Durable metal housing extends product life reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK VSE180-2N41134 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
