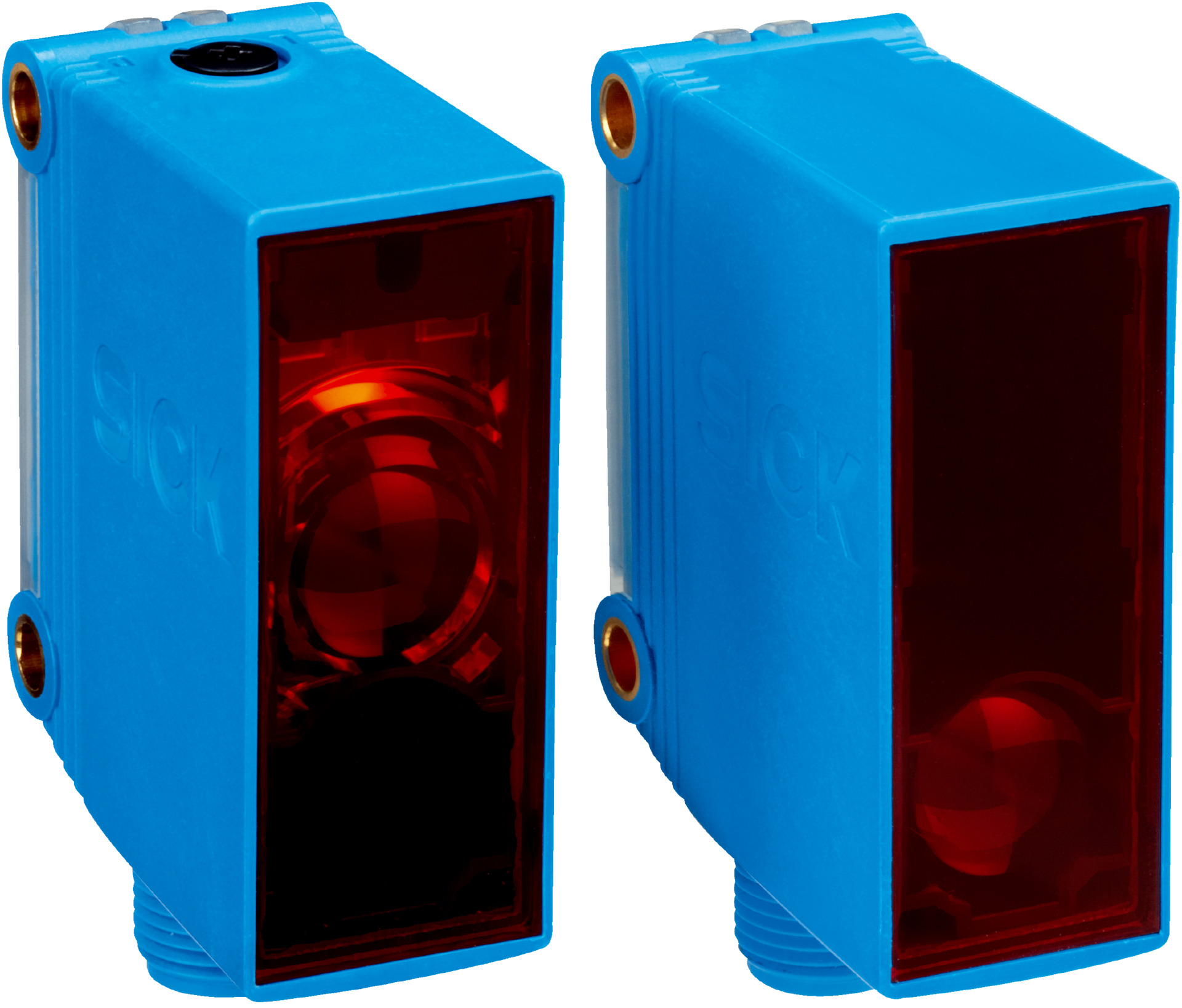

Through-Beam Photoelectric Sensor | Sensing Range Up to 35m | IP67 Rated | Fast Response Time | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 35 meters and a fast response time of ≤ 500 µs. With a robust IP67 rated housing and selectable light/dark switching mode, it's perfect for object detection and safety monitoring in manufacturing processes. Ideal for material handling and conveyor systems, this sensor ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 35 m
- Light source: PinPoint LED, wavelength 625 nm
- Light spot size at 15 m: Ø 180 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Power consumption sender: ≤ 15 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- Ambient operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- EMC standard: EN 60947-5-2
- UL File No.: NRKH.E348498 & NRKH7.E348498
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Rectangular housing with visible red PinPoint LED light source
- Sensing range up to 35 meters
- Selectable light/dark switching mode with PNP output
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- Robust plastic ABS/PMMA housing with IP67 enclosure rating
- Wide ambient operating temperature range from –30 °C to +60 °C
- Includes premounted mounting system BEF-KHSQ12R02
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper alignment and secure mounting.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with ≤ 15 mA sender and ≤ 20 mA receiver reduces energy usage
- Durable IP67 rated housing extends product life and reduces waste
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

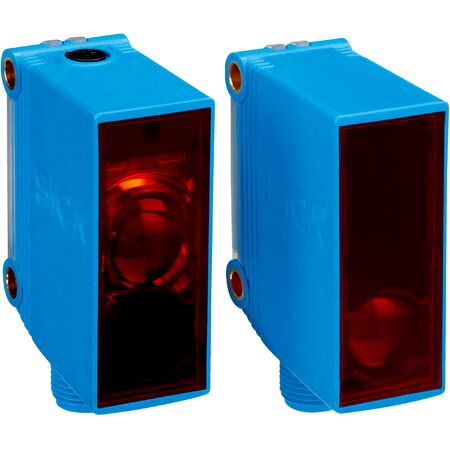

The SICK GSE10-P4111P01 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
