Through-Beam Photoelectric Sensor | Sensing Range 4.5m | IP66/IP67/IP68/IP69K Rated | Stainless Steel Housing | by SICK

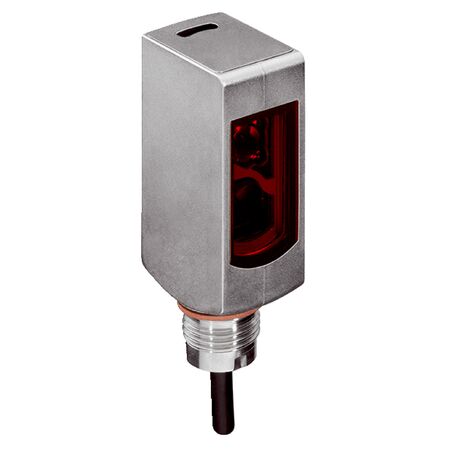

The Through-Beam Photoelectric Sensor WSE4S-3P3130H is designed for industrial automation, featuring a sensing range of up to 4.5 meters and a fast response time of under 0.5 ms. With its durable stainless steel housing and high ingress protection ratings, this sensor is perfect for hygienic and washdown zones, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor | Sensing Range 4.5m | IP66/IP67/IP68/IP69K Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1052888
Alternatively Known As: Through-beam photoelectric sensor, stainless steel photoelectric sensor, hygienic photoelectric sensor, washdown sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 4.5 m (max 5 m)
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Output type: PNP, light switching
- Output current max: ≤ 100 mA
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Protection class: III
- Circuit protection: A, B, C
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Cable material: Plastic, PVC
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 4.5 m, max 5 m
- PinPoint LED light source with 650 nm wavelength
- Slim metal housing made of stainless steel V4A (1.4404, 316L)
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1,000 Hz
- Cable with M8 3-pin connector, 150 mm length
- Suitable for hygienic and washdown zones
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring stainless steel housing
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- High ingress protection reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK WSE4S-3P3130H Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic applications.
