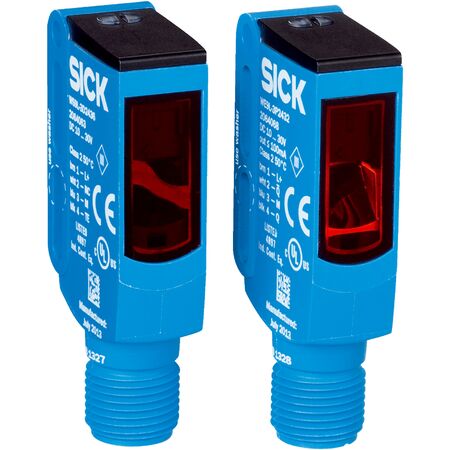

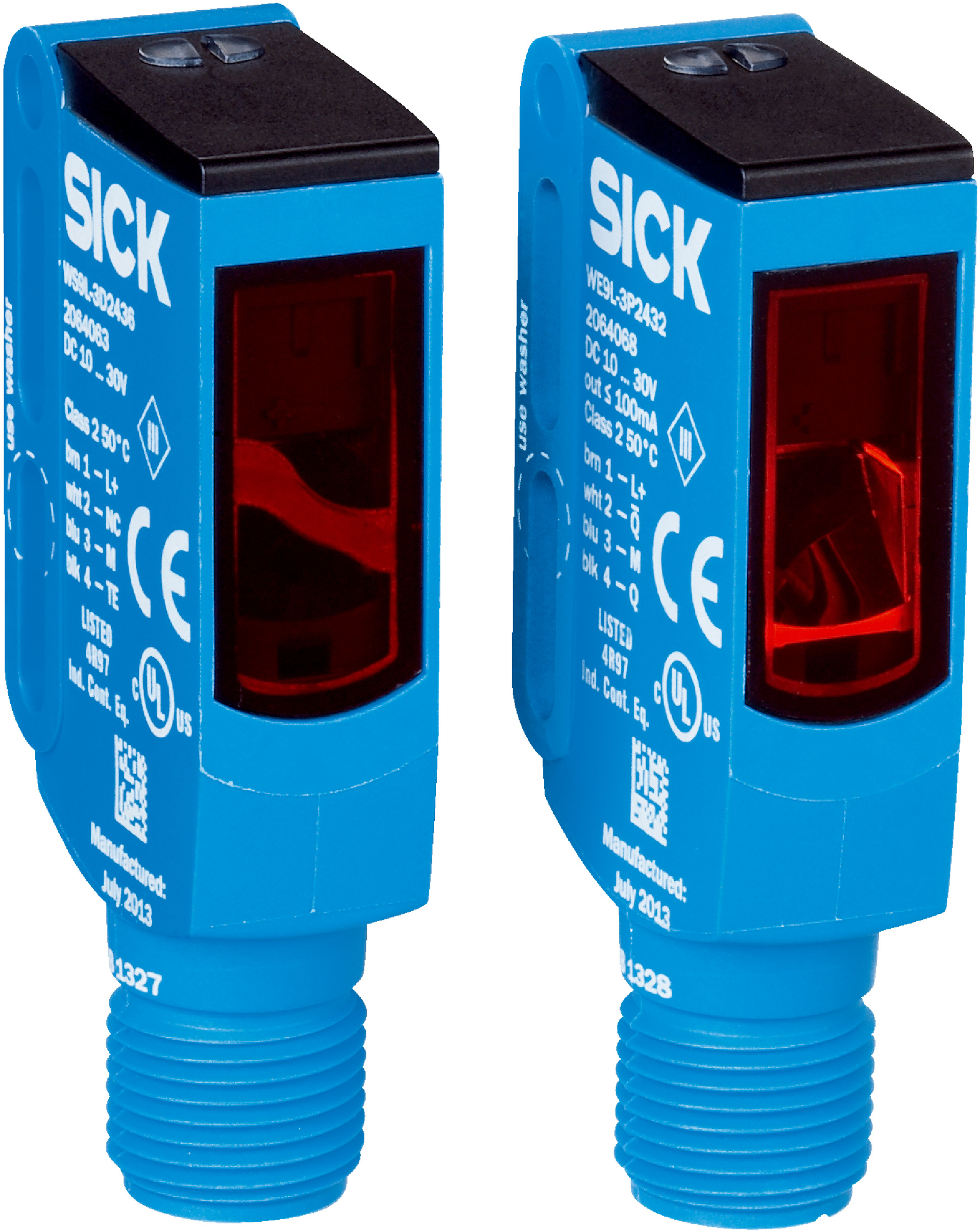

Through-Beam Photoelectric Sensor | Sensing Range Up to 60m | IP66/IP67/IP69K Rated | by SICK
The Through-Beam Photoelectric Sensor WSE9LC-3P2436A70 is designed for industrial automation, featuring a sensing range of up to 60 meters and a fast response time of ≤ 0.5 ms. With an IP66/IP67/IP69K rating, it’s perfect for harsh environments, ensuring reliable object detection and precision measurement in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Enclosure rating: IP66, IP67, IP69K
- Laser wavelength: 650 nm
- Laser class: 1 (IEC 60825-1 compliant)
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red laser light
- Sensing range up to 50 m, max 60 m
- Rectangular housing design with M3 mounting hole
- Laser class 1 safety compliant
- IO-Link communication interface for smart sensor integration
- High switching frequency up to 1000 Hz
- IP66, IP67, and IP69K rated for harsh environments
- Plastic VISTAL® housing and PMMA optics material
- Fast response time ≤ 0.5 ms
- Multiple output functions including complementary PNP output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing processes
- Precision measurement and timing applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP69K rated housing minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE9LC-3P2436A70 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and precision object detection applications.
