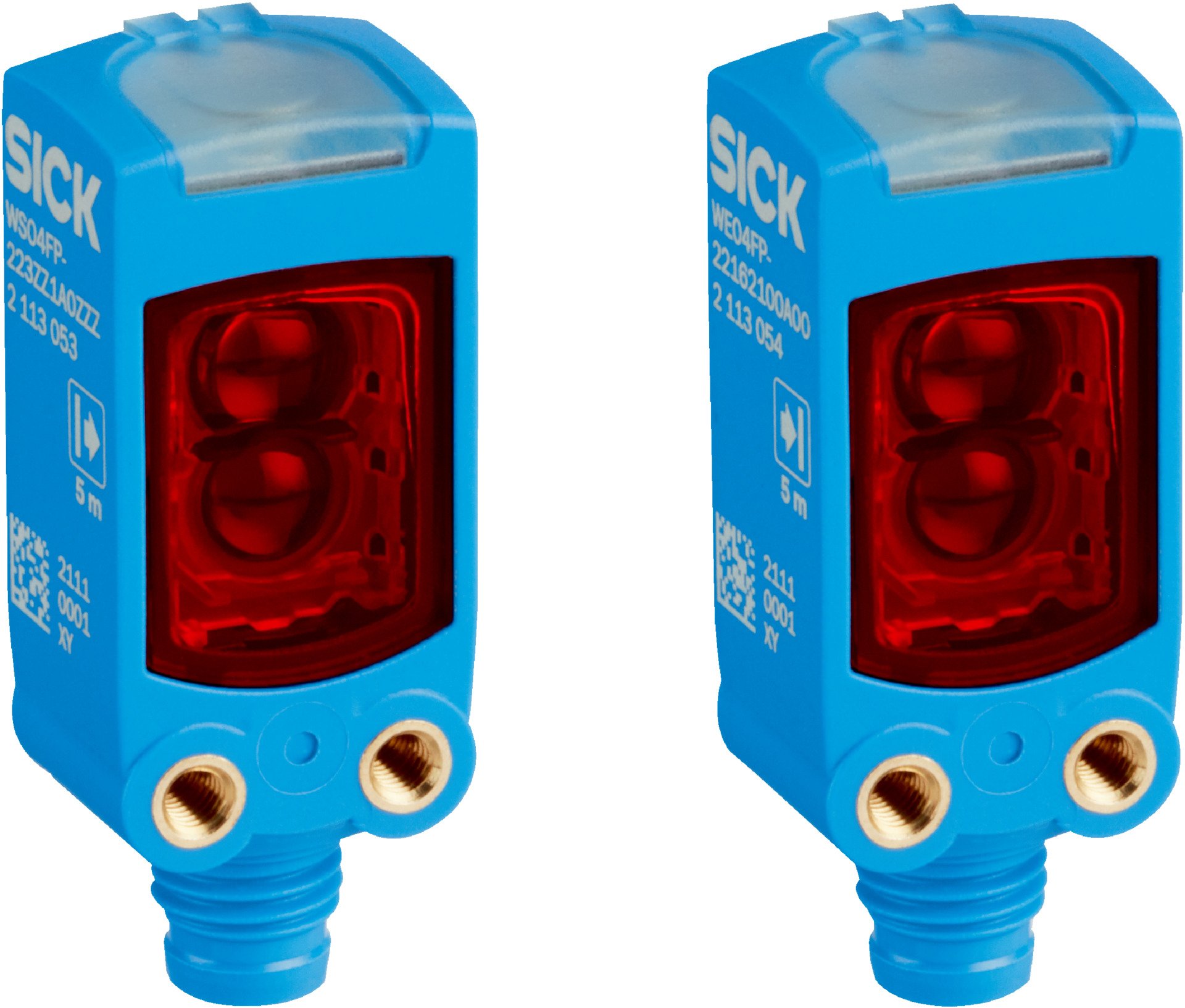

Through-Beam Photoelectric Sensor | Sensing Range Up to 10m | IP66 & IP67 Rated | Fast Response Time | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 10 meters and a fast response time of ≤ 500 µs. With an IP66 and IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Output type: 1 PNP digital output, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Material: Plastic housing (VISTAL®), front screen PMMA
- Connection: M8, 3-pin connector
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 10 meters with recommended range 0 to 7.5 meters
- PinPoint LED visible red light with 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- IP66 and IP67 rated enclosure for dust and water protection
- Shock resistance up to 30 g and vibration resistance from 10 Hz to 1000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Fast response time of ≤ 500 µs and switching frequency up to 1000 Hz
- Connector M8, 3-pin for easy installation
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

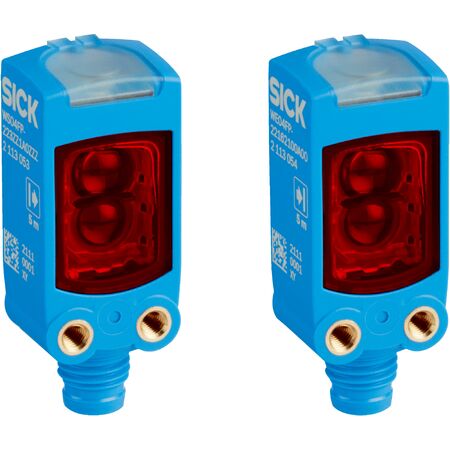

The SICK WSE4FP-21A12100ZZZ Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
