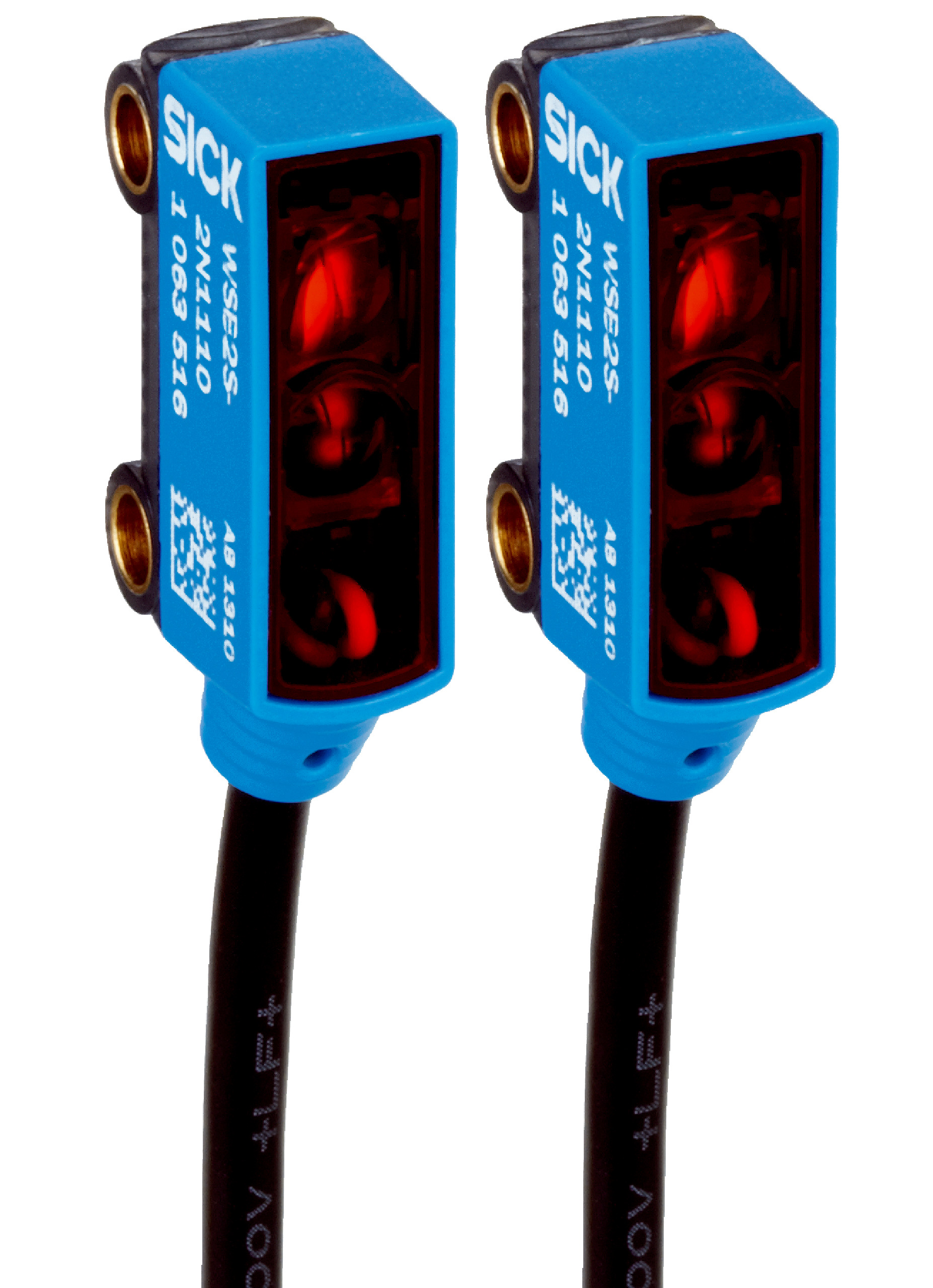

Through-beam Photoelectric Sensor | Sensing Range up to 2.5m | IP67 Rated | Fast Response Time | by SICK
The Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 2.5 meters and a fast response time of under 0.4 ms. With a durable IP67 rated housing and a PinPoint LED light source, this sensor is perfect for object detection and safety monitoring in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 2 m (max 2.5 m)
- Light source: PinPoint LED, 640 nm wavelength
- Switching output: PNP, light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching frequency: 1,200 Hz
- Response time: < 0.4 ms
- Connection: Cable with M8 male connector, 4-pin, 200 mm
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 2.5 meters
- PinPoint LED light source with 640 nm wavelength
- Rectangular housing design with IP67 enclosure rating
- High switching frequency of 1,200 Hz and fast response time under 0.4 ms
- Light/dark switching mode with PNP output
- Cable with M8 male connector, 4-pin, 200 mm length
- Increased operating reserve for reliable performance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE2S-2P3230S04 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
